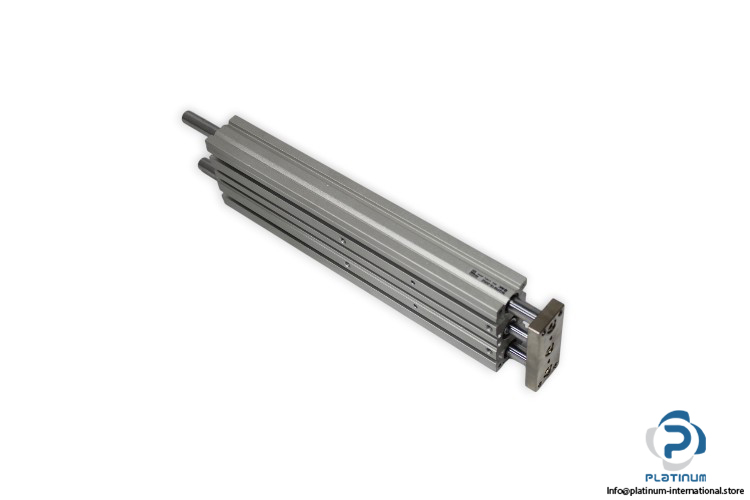

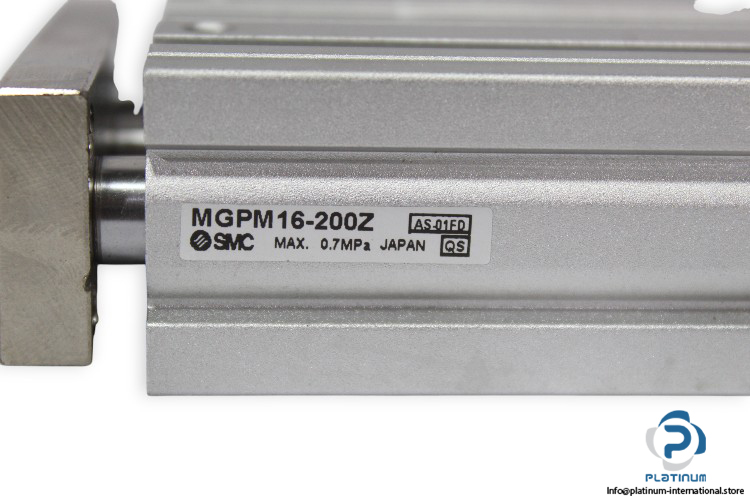

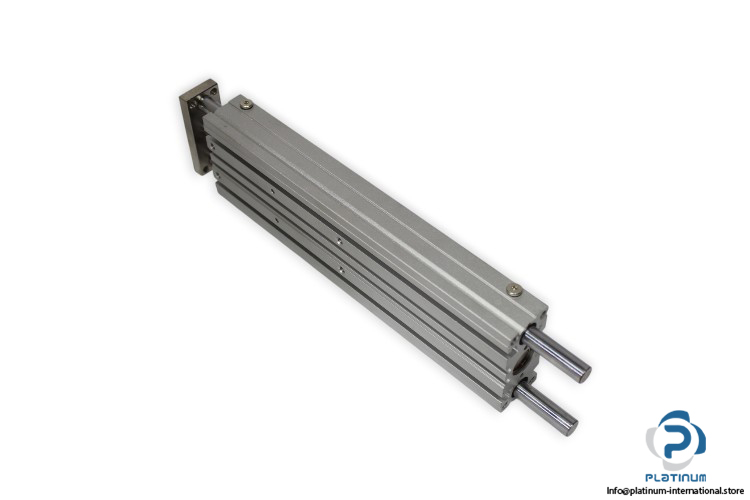

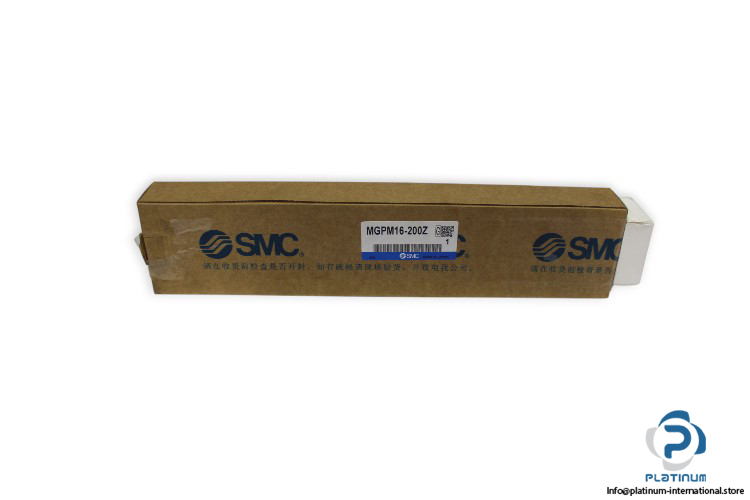

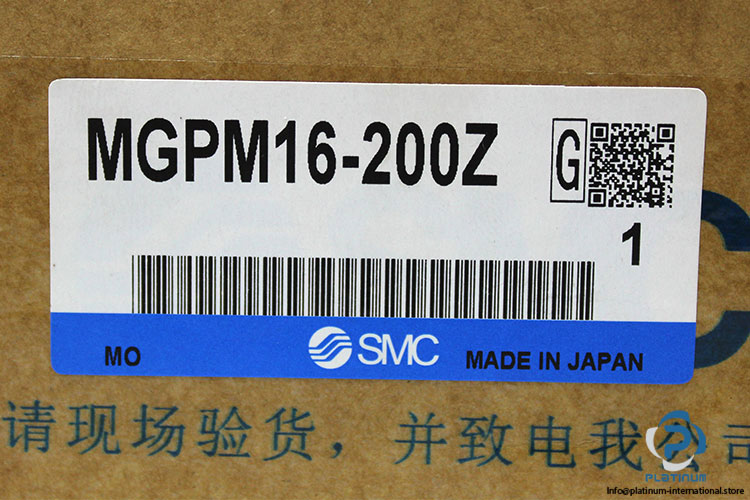

SMC MGPM16-200Z Compact Guide

Auf Lager2 EinheitenVersandbereit

Compact Guide

The SMC MGPM16-200Z is a compact, double acting pneumatic guide with a 200 mm stroke, slide bearing, and anodized aluminum body. It includes the MGJ10-20 miniature guide rod for precise and smooth motion.

Hersteller
SMC
SKU
1083942
Zustand
Neu
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

SMC MGPM16-200Z Compact Guide

The SMC MGPM16-200Z Compact Guide is a double acting pneumatic actuator designed for precise linear motion in limited spaces. Built from anodized aluminum, it offers high rigidity, smooth movement, and long service life. This model is attached with an SMC MGJ10-20 miniature guide rod for added stability and guided accuracy.

Manufacturer: SMC

Type: Compact Guide

Model: MGPM16-200Z

Series: MGP

Attached Miniature Guide Rod

Bearing TypeSlide bearing
Stroke Length200 mm
Piston Diameter16 mm
Maximum Operating Pressure1.0 MPa
Mode of OperationDouble acting
Body MaterialWrought aluminum alloy, anodized
Pneumatic ConnectionG1/8
Ambient Temperatureminus 10 to 60 degree Celsius

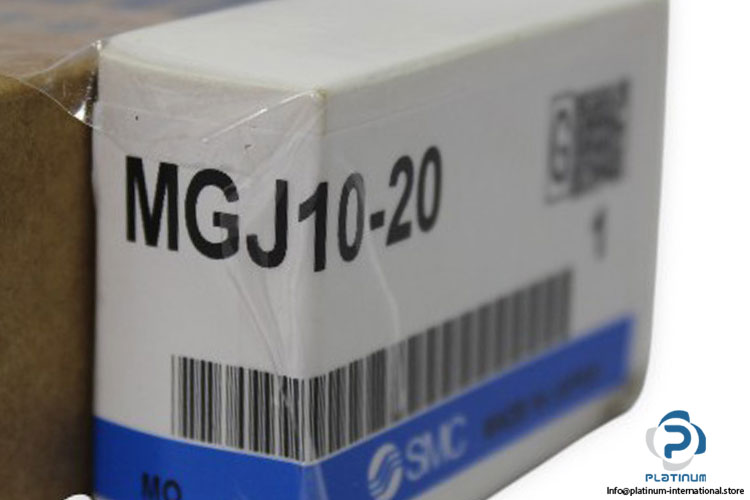

Part No.MGJ10-20
SeriesMGP
Stroke Length20 mm
Piston Diameter10 mm
Maximum Operating Pressure0.7 MPa
Mode of OperationDouble acting
Ambient Temperatureminus 10 to 60 degree Celsius
