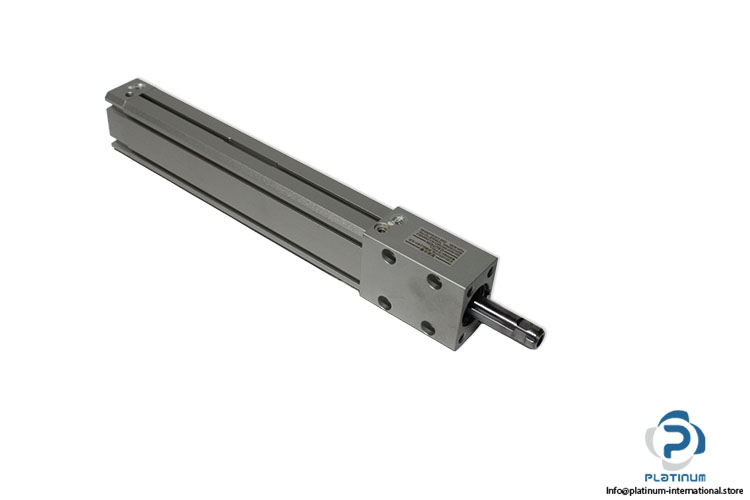

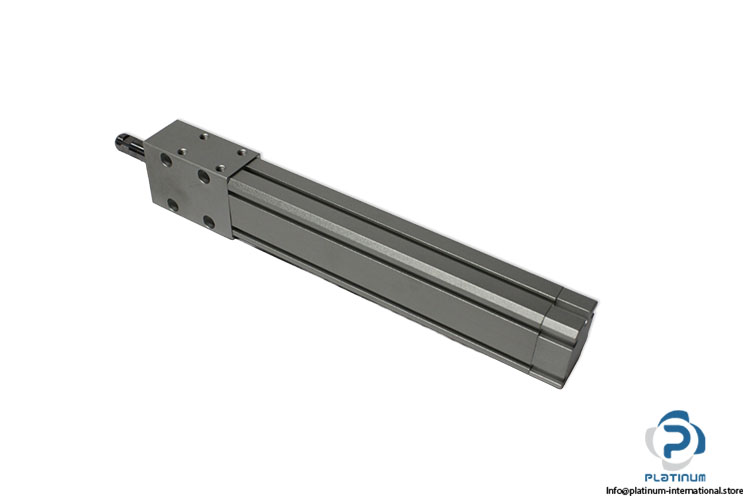

SMC MTS20-125 Precision Cylinder
Neu
Auf Lager1 EinheitVersandbereit
The SMC MTS20 125 Precision Cylinder is a precision pneumatic actuator featuring a 125 mm stroke, 20 mm bore size, ball spline bearing, and air cushion design, delivering smooth, accurate, and reliable linear motion for industrial automation applications.
ActuatorAirAluminumAutomationBallControlCylinderIndustrialLinearMotionMTSpneumatPneumaticPrecisionSeriesSMCspline
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

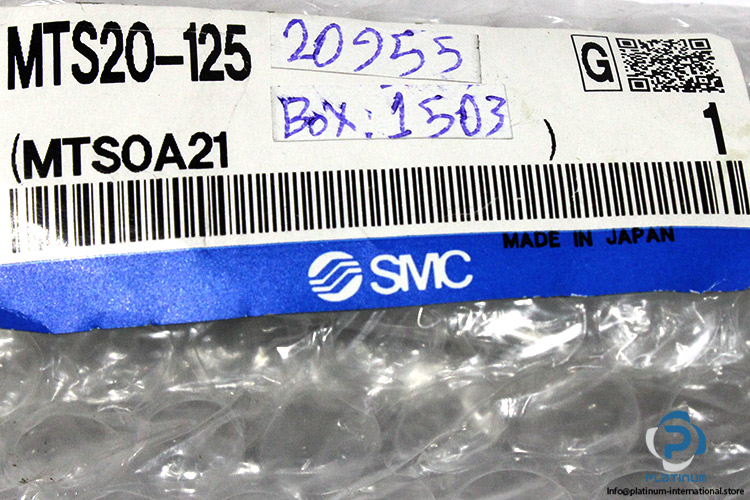

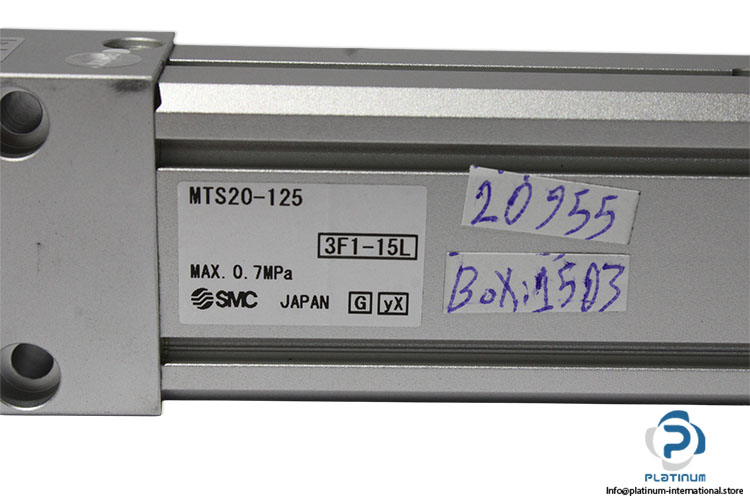

| Code | 3F1-15L / G Yx / MTSOA21 |
| Series | MTS |
| Fluid | Air |
| Stroke | 125 mm |
| Bore Size | 20 mm |
| Spline rod size | 10 mm |
| Operating Mode | Rod end female thread (Standard) |
| Proof pressure | 1 MPa |
| Operating pressure | max. 0.7 MPa |
| Piston speed | 50 to 800 mm/s |
| Lubrication | Not required (Non-lube) |
| Port size | 5MM |
| Cushion Type | Air cushion |
| Material Rod cover | Aluminum alloy |
| Material Piston | Aluminum alloy |
| Bearing type | Ball spline |
| Ambient and fluid temperature | -10 to 60°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097442 |
| Weight | 0,55 |
