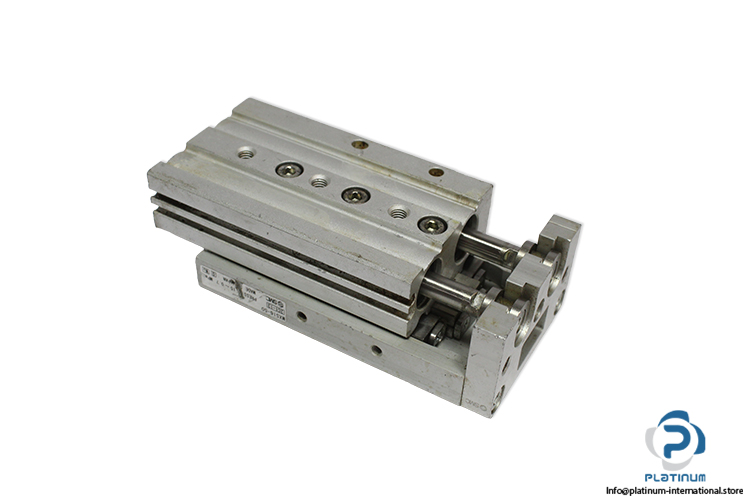

SMC MXS16-50 AIR Slide Table
Air Slide Table
High-precision SMC MXS16-50 air slide table designed for smooth guided linear motion, stable actuator performance, and long-lasting industrial reliability.SMC MXS16-50 Air Slide Table
A compact and high-precision air slide table from the SMC MXS series, designed for accurate linear guidance, smooth operation, and excellent repeatability. Ideal for automated systems requiring stable alignment, controlled motion, and long-lasting pneumatic performance. Manufacturer: SMC
Type: Air Slide Table
Model: MXS16 50

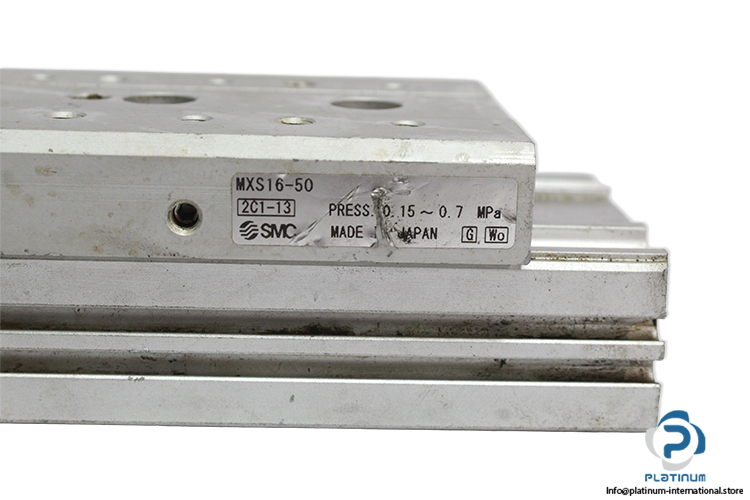

Code: 2C1-13 / G Wo
Series: MXS
Stroke Length: 50 mm
Piston Diameter: 16 mm
Fluid: Air
Operating Pressure: 0.15 to 0.7 MPa
Proof Pressure: 1.05 MPa
Mode of Operation: Double acting
Piston Speed: 50 to 500 mm/s
Cushion: Rubber bumper (Standard, With stroke adjuster)
Pneumatic Connection: 5 mm
Lubrication: Non-lube
Cleanliness Class (ISO): 13-/22-: Class 5
Ambient / Fluid Temperature: -10 to 60 °C
Recommended For:
A perfect choice for precision automation, pick-and-place units, compact assembly systems, and synchronized pneumatic motion control. Works seamlessly with automation components such as Servo Motors, Sensors, and Pneumatic Actuators, enabling complete and efficient system integration.
