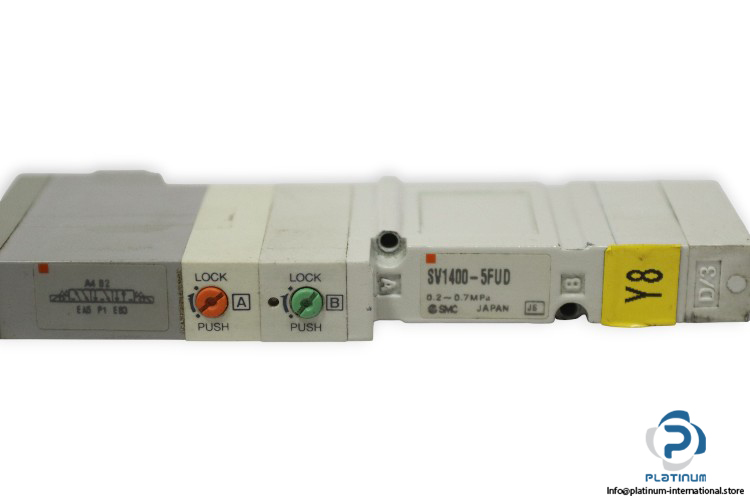

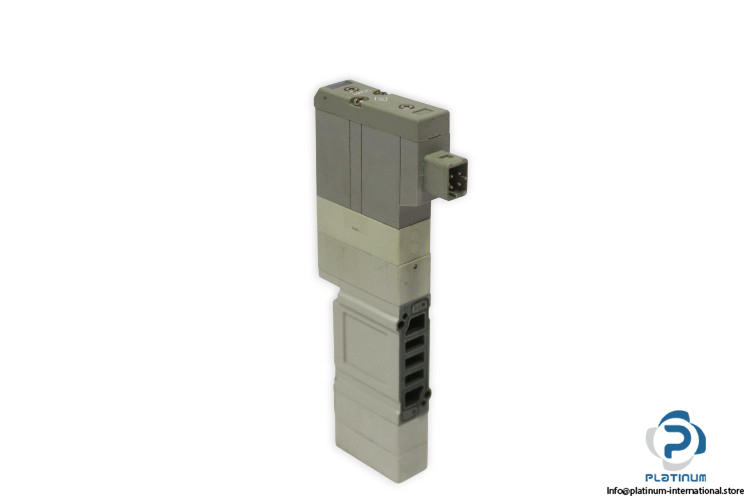

SMC SV1400-5FUD 5-PORT Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
5-Port Solenoid Valve The SMC SV1400-5FUD is a 5-port electrically actuated solenoid valve featuring 5/3-way operation, IP67 protection, and reliable pneumatic performance for industrial automation and air control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | SV1 |
| Code | JS/Y8 |
| Fluid | Air |
| Function | 5/3 Way |
| Type of Actuation | Electrical |
| Pressure Range (3 Position) | 0.2 to 0.7 MPa |
| Ambient and Fluid Temperature | 10 to 50 °C (No Freezing) |
| Impact / Vibration Resistance | 150 / 30 m/s² |
| Enclosure Protection | IP67 (Based on IEC 60529) |
| Operating Frequency Max. | 3 Hz |
| Condition | Used |
| SKU | 1093037 |
| Weight | 0,08 |
