SMC TU0604 Polyurethane Tubing
Polyurethan-Schlauch SMC TU 0604 Polyurethan-Spiralschlauch mit 6 mm Außendurchmesser, 4 mm Innendurchmesser und einem Betriebsdruck von bis zu 0,8 MPa bei 20°C, geeignet für Luft- und Wasseranwendungen.

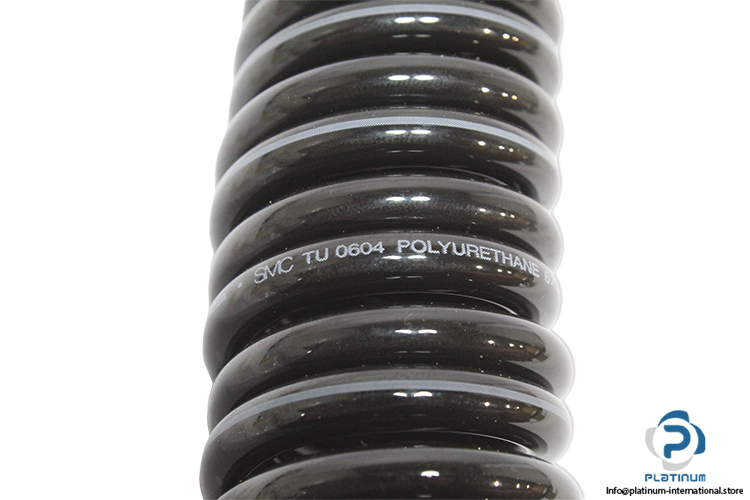

SMC TU 0604 Polyurethane Tubing
The SMC TU 0604 polyurethane tubing from the TU series is designed for reliable fluid transfer in pneumatic and industrial systems. Manufactured from high-quality polyurethane material, this spiral coiled hose provides flexibility, durability, and stable performance under varying operating conditions.
Manufacturer: SMC
Type: Polyurethane Tubing
Model: TU 0604

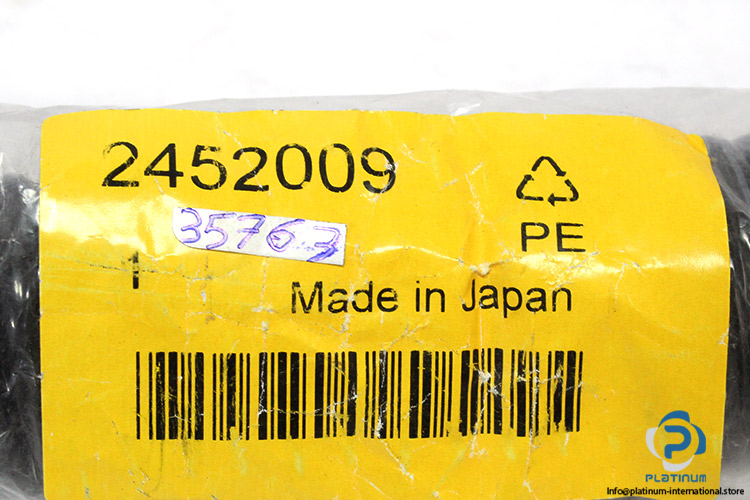

Part No.: 2452009
Series: TU Series
Tube Size:
Max. Operating Pressure (MPa):
Application Fittings:
One-Touch Fittings
Insert Fittings
Self-Align Fittings
Miniature Fittings A
| Material | Polyurethane |
| Outer Diameter | 6 mm |
| Inner Diameter | 4 mm |
| Fluid | Air / Water |
| 20°C | 0.8 MPa |
| 40°C | 0.65 MPa |
| 60°C | 0.5 MPa |
| Operating Temperature | “20 to +60 °C |
| Color | Black |

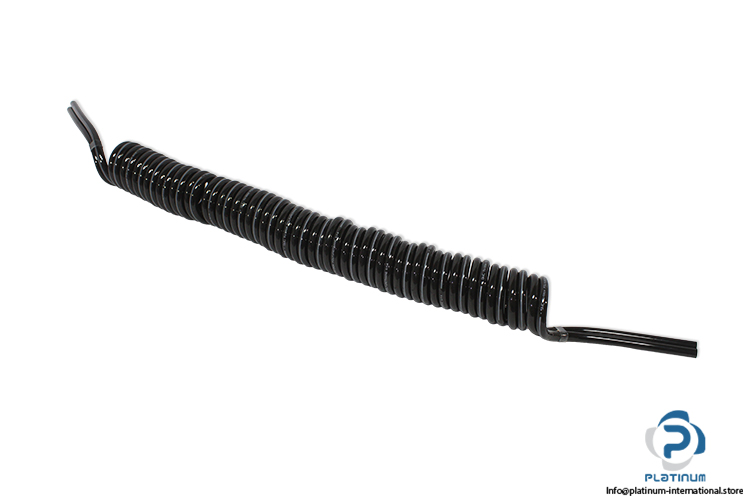

| Form | Spiral / Coiled Hose With Straight Ends |
