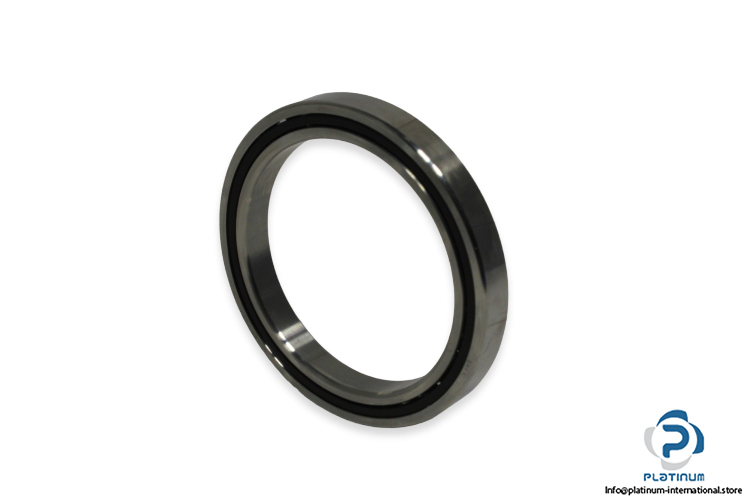

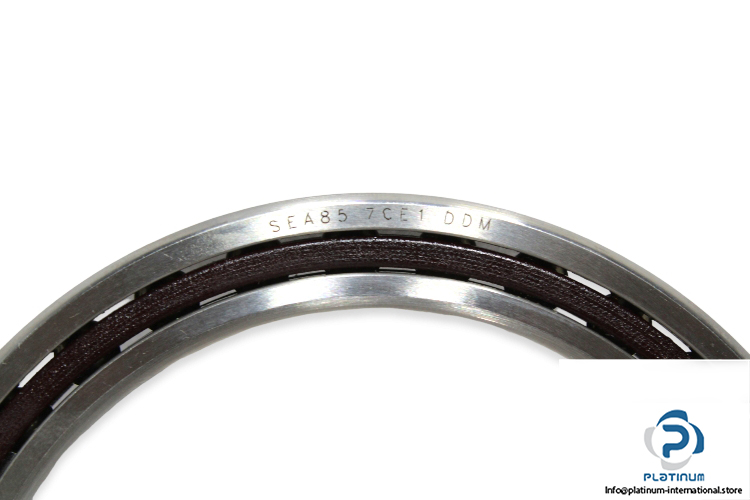

Snfa SEA85 7CE1 DDM Angular Contact Ball Bearing
Manufacturer: SNFA
Type: Super-precision, universally matchable single row angular contact ball bearing
Model: SEA857CE1DDM
Alternative part number: 71817
Dimensions:
Bore Diameter d: 85 mm
Outer diameter D: 110 mm
Width: 13 mm
Contact angle: 15 °
Dynamic load rating: 2200 daN
Static load rating: 3220 daN
Reference speed for oil lubrication: 15000 RPM
Preload: M, Medium preload
Precision class: ABEC 7
Cage material: Phenolic Resin
