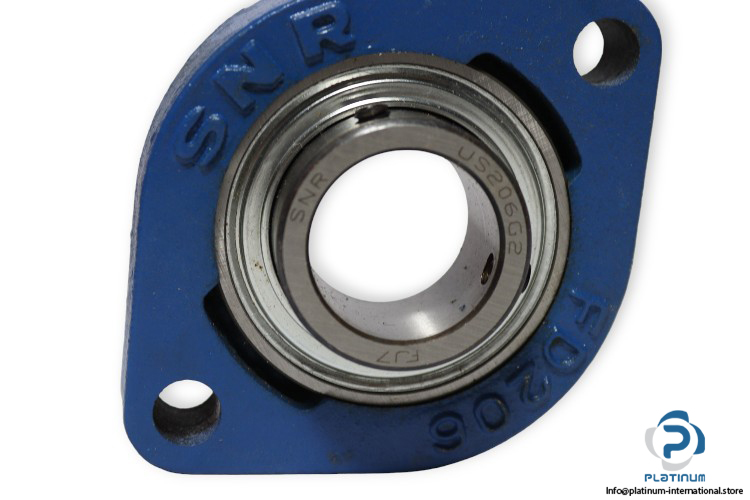

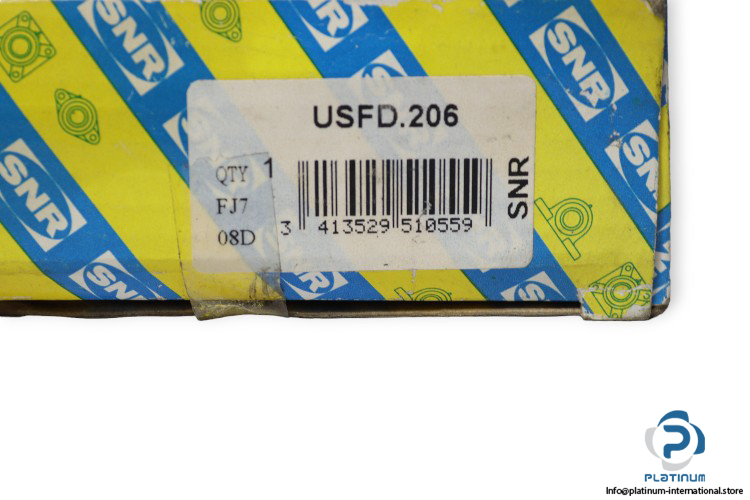

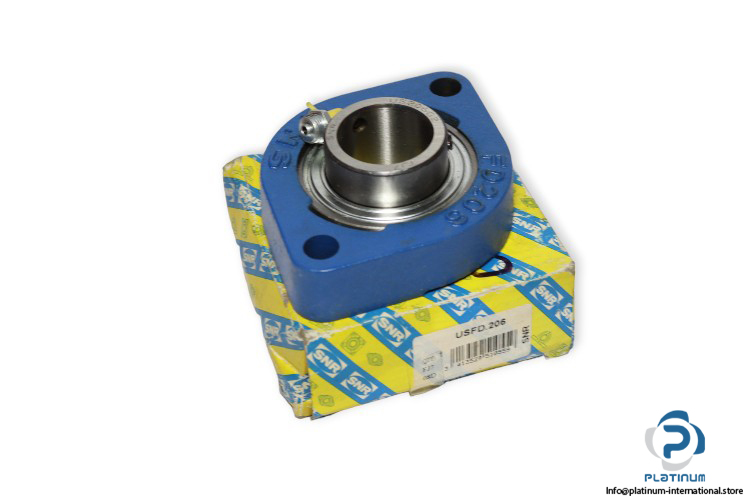

SNR USFD.206 Flanged Housing Unit

Name: SNR USFD.206 FLANGED HOUSING UNIT
SKU: 1030820
Availability: LimitedAvailability

snr-USFD.206-flanged-housing-unit-(new)-(carton)

snr-USFD.206-flanged-housing-unit-(new)-(carton)-1

snr-USFD.206-flanged-housing-unit-(new)-(carton)-2

snr-USFD.206-flanged-housing-unit-(new)-(carton)-3

Neu

Auf Lager2 EinheitenVersandbereit

Hersteller: SNR Typ: Flanschgehäuseeinheit Modell: USFD206 Gehäuse: FD206 Lagerbezeichnung: US206G2

Hersteller

SNR

SKU

1030820

Kategorie

Plummer Block Housing Units

Zustand

Neu

30 bearing bearings Cast flanged Housing Iron LIP mm Seal Single SNR Two-Bolt Units Usfd

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: SNR
Type: Flanged housing unit
Model: USFD206
Housing: FD206
Bearing designation: US206G2

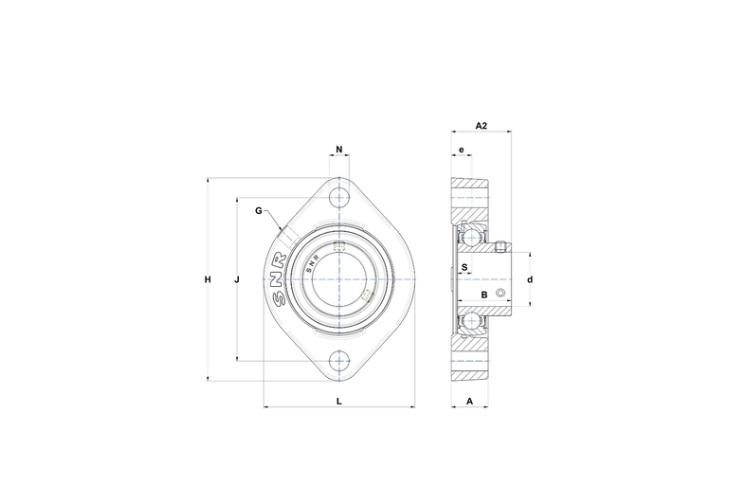

Dimensions
Shaft Diameter d: 30 mm
Overall Length L: 84 mm
Overall Height H: 112.5 mm
Width of inner ring B1: 30 mm
Distance Between Attachment Bolts J: 90.5 mm
Overall unit width A2: 33.4 mm
Basic dynamic load rating: 19500 N
Basic static load rating: 11200 N
Temperature range: -20 °C…100°C
Material: Grey cast iron
Locking Device: socket set screw
