SNS MAL 16X25 Pneumatic Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Pneumatic Cylinder
SNS MAL16X25 double-acting pneumatic cylinder with 16 mm bore, 25 mm stroke, aluminum alloy body, and reliable performance for industrial pneumatic systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

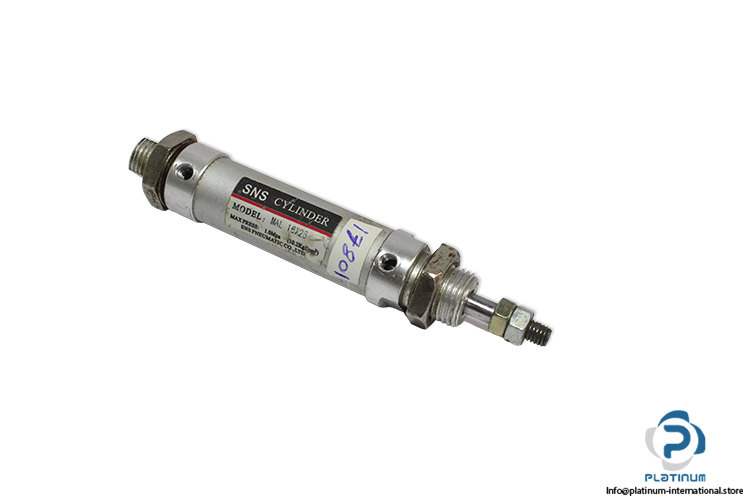

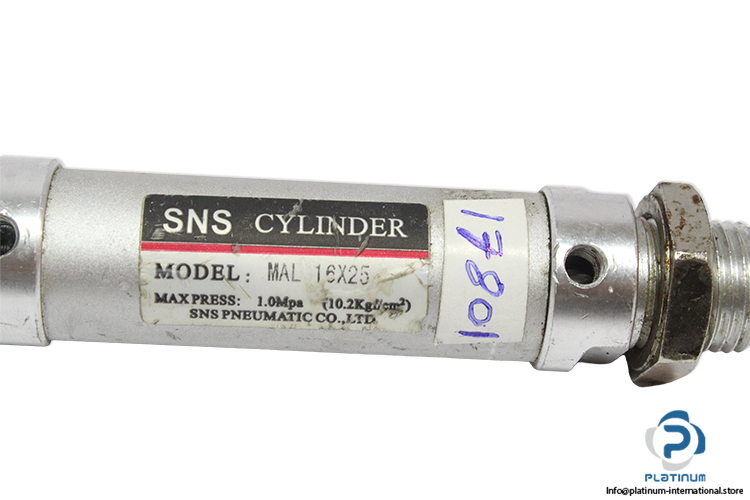

SNS MAL16X25 Pneumatic Cylinder
The SNS MAL16X25 is a compact pneumatic cylinder from the MAL series, designed for efficient and reliable linear motion in industrial pneumatic systems. Its aluminum alloy construction ensures durability, while the double-acting operation provides controlled movement for automation and machinery applications.
Manufacturer: SNS Cylinder
Type: Pneumatic Cylinder
Series: MAL
Model: MAL16X25
| Inner Diameter | 16 mm |
| Stroke | 25 mm |
| Mode of Operation | Double Acting |
| Port Size | 5 mm |
| Maximum Pressure | 1.0 MPa |
| Guaranteed Pressure | 1.35 MPa |
| Maximum Traveling Distance | 500 mm |
| Material | Aluminum Alloy |
| Fluid | Air |
| Temperature Range | -5 to 70 °C |
