Socomec 192F3336 Ampere Meter
Neu
Auf Lager1 EinheitVersandbereit
59,99$
Ampere Meter
SOCOMEC 192F3336 DC ampere meter with 0..600 A range, 100 mV shunt, accuracy class 1.5, IP54 protection, and built-in design for reliable current measurement.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

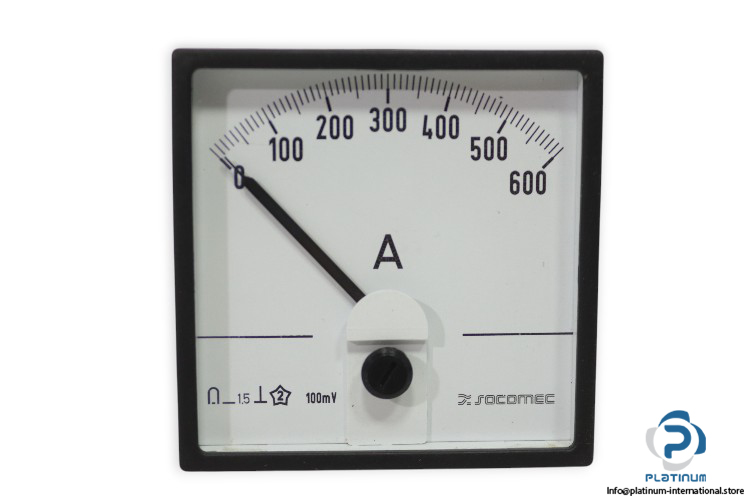

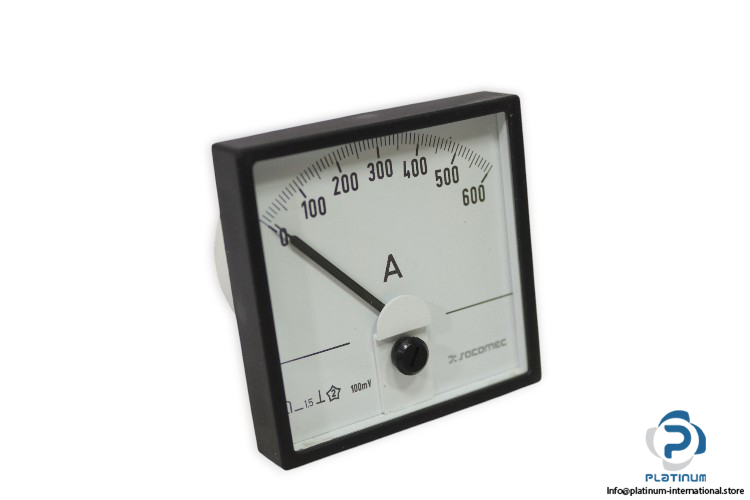

SOCOMEC 192F3336 Ampere Meter
The SOCOMEC 192F3336 is a high-precision DC ampere meter designed for industrial applications. With a wide measuring range and durable build, it ensures accurate monitoring of electrical current in demanding environments.
Manufacturer: SOCOMEC
Type: Ampere Meter
Model: 192F3336

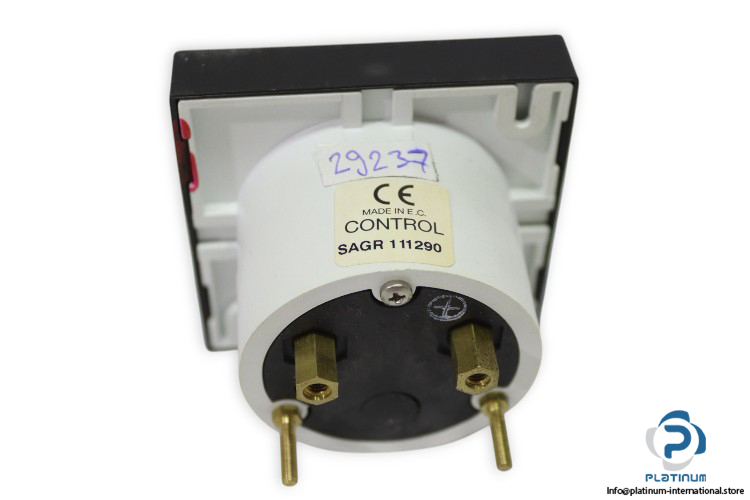

Ref No.: SAGR 1 11290

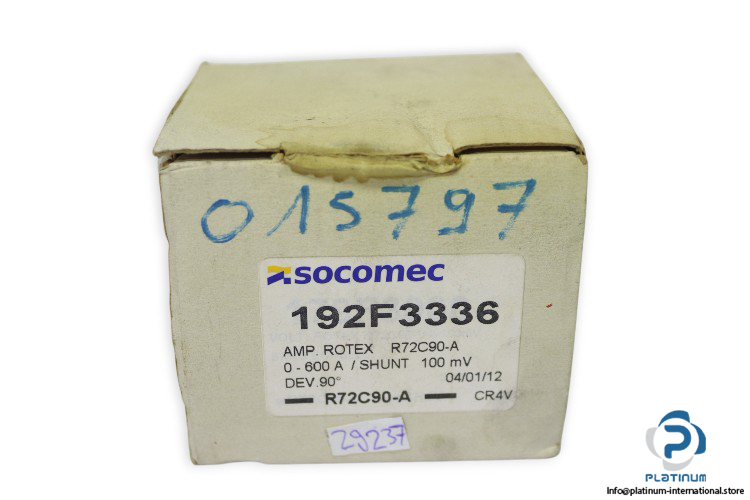

Amp Rotex: R72C90-A
| Shunt | 100 mV |
| Nominal End Value of the Scale [A] | 600 |
| Measuring Range [A] | 0..600 |
| Accuracy Class | 1.5 |
| Voltage Type | DC |
| Width | 72 mm |
| Height | 72 mm |
| Max. Needle Deflection [°] | 90 |
| Protection Class | IP54 |
| Operating Temperature | -25 / 60 °C |
| Dimensions | 72 x 72 x 58 mm |
