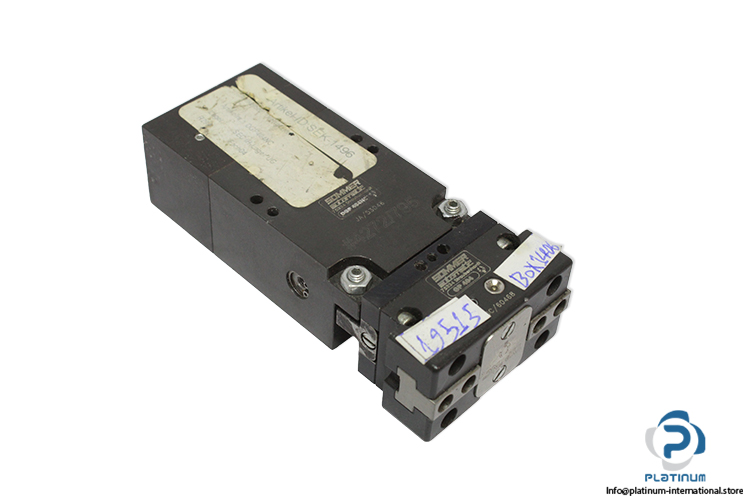

Sommer GP404 2-JAW Parallel Gripper
Gebraucht
Auf Lager1 EinheitVersandbereit
2-Jaw Parallel Gripper SOMMER ZIMMER GP404 gripper with high gripping force, precision control, and integrated DGP400 rotary gripper for combined gripping and rotation applications.
2AutomationDGP400ForceGP400GP404GripperGrippingHandlHighIndustrialjawParallelPneumaticPrecisionRotarySeriesSommerSystemZimmer
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

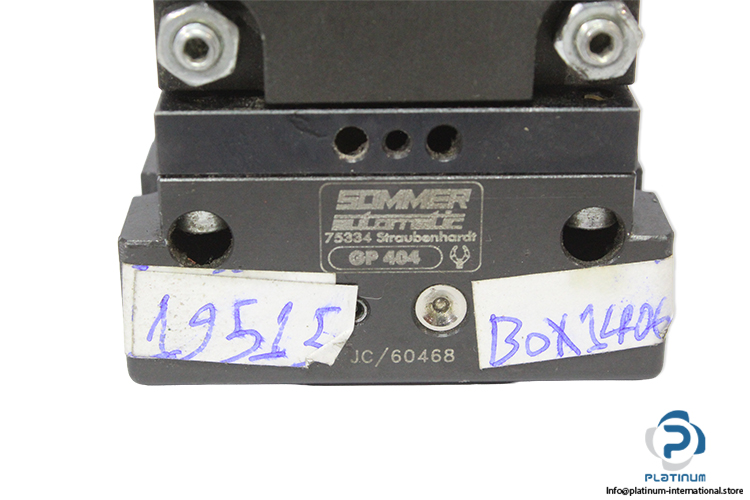

| Code | JC/60468 |
| SERIES | GP400 |
| Stroke per jaw | 2 – 4 mm |
| Gripping force | 170 – 500 N |
| Nominal operating pressure | [bar] 6 |
| Max. operating pressure for sealing air | [bar] 0.5 |
| Operating temperature | [°C] +5 ... +80 |
| IP class | IP40 |

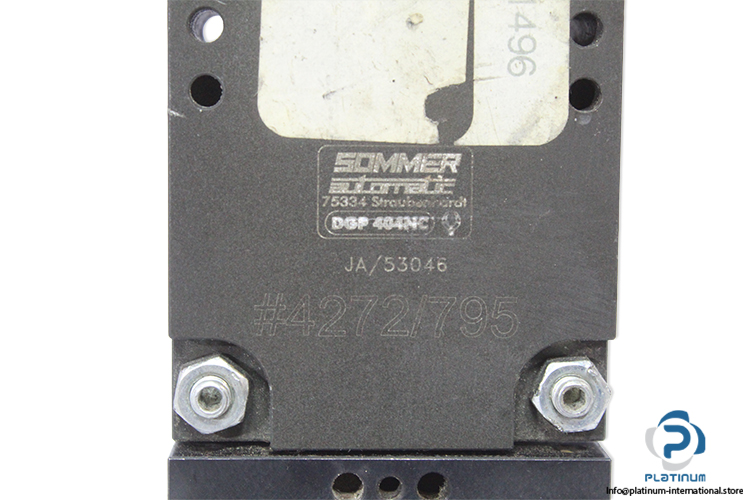

| Attached with | SOMMER DGP 404NC 2-Jaw PARALLEL ROTARY GRIPPER |
| Series, PARALLEL ROTARY GRIPPER | DGP400 |
| Code, PARALLEL ROTARY GRIPPER | JA/53046 |
| Ref No, PARALLEL ROTARY GRIPPER | 4272/795 |
| Stroke per jaw, PARALLEL ROTARY GRIPPER | 4 [mm] |
| Nominal gripping force, PARALLEL ROTARY GRIPPER | 155 [N] |
| Gripping force secured by spring min | 40 [N] |
| Torque | 0.5 [Nm] |
| Gripping force in closing | 155 [N] |
| Closing time / Opening time | 0.015 / 0.015 [s] |
| Repetition accuracy | +/- 0.05 [mm] |
| Axial bearing load | 960 [N] |
| Radial bearing load | 10 [Nm] |
| Operating pressure | 3 ... 8 [bar] |
| Air volume per cycle | 5 [cm³] |
| Air volume per cycle 90° | 4.5 [cm³] |
| Air volume per cycle 180° | 9 [cm³] |
| Certifications | LABS / REACH / RoHS |
| Protection to IEC 60529 | IP40 |
| Condition | Used |
| SKU | 1096769 |
| Weight | 0,4 |
