Sopra CNB0630222MD Pneumatic Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
Pneumatic Cylinder
The SOPRA CNB0630222MD pneumatic cylinder features a 63 mm bore, 222 mm stroke, and 10 bar maximum pressure, ensuring precise and efficient linear motion for industrial automation systems.1063x222ActingActuatorAirAutomationbarCNB0630222MDCylinderDoubleG3/8IndustrialmmPneumaticSopraSquare
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

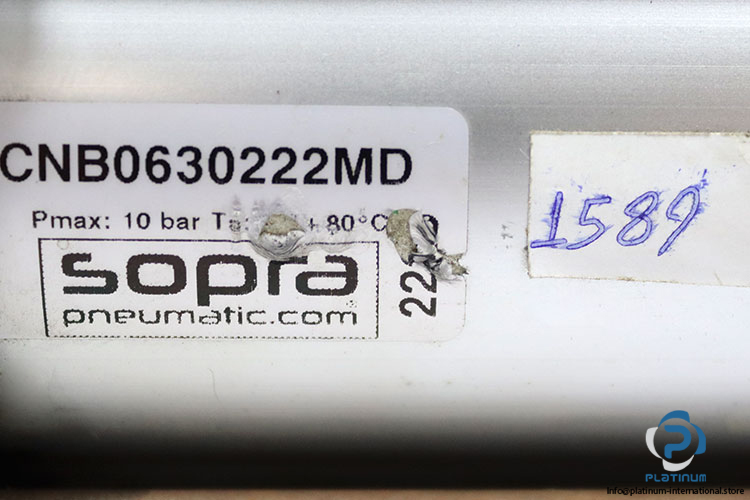

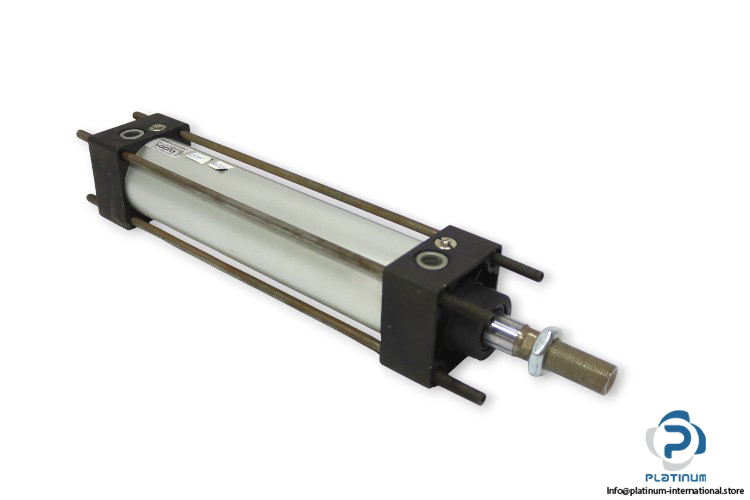

SOPRA CNB0630222MD Pneumatic Cylinder
The SOPRA CNB0630222MD Pneumatic Cylinder is engineered for reliable motion control and durability in industrial automation systems. It delivers smooth linear movement, high performance, and resistance to demanding operating conditions.
Manufacturer: SOPRA
Type: Pneumatic Cylinder
Model: CNB0630222MD
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 222 mm |
| Bore x Stroke | 63 x 222 mm |
| Rod Diameter | 22 mm |
| Frame Dimensions | 75 x 370 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
| Max Temperature | 80 °C |
