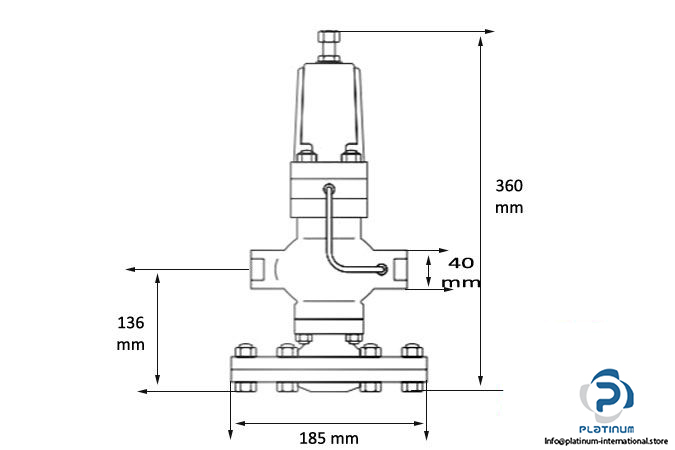

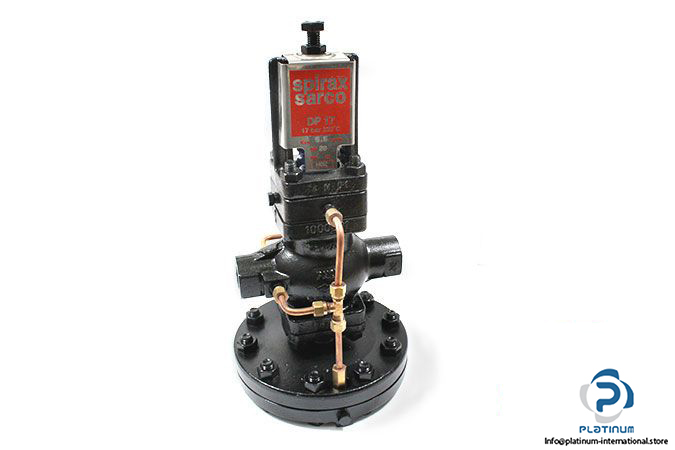

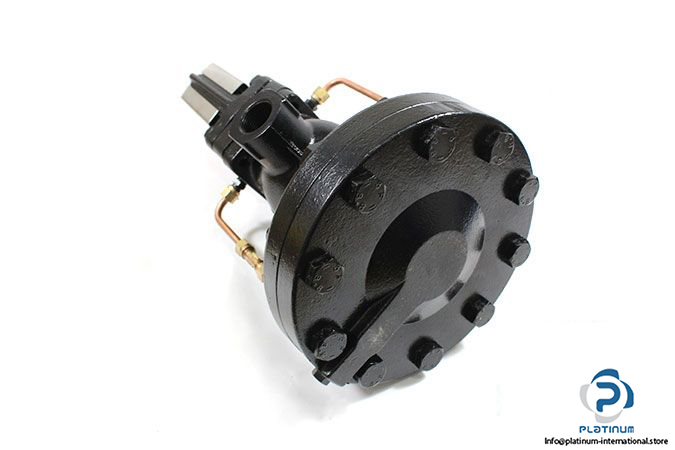

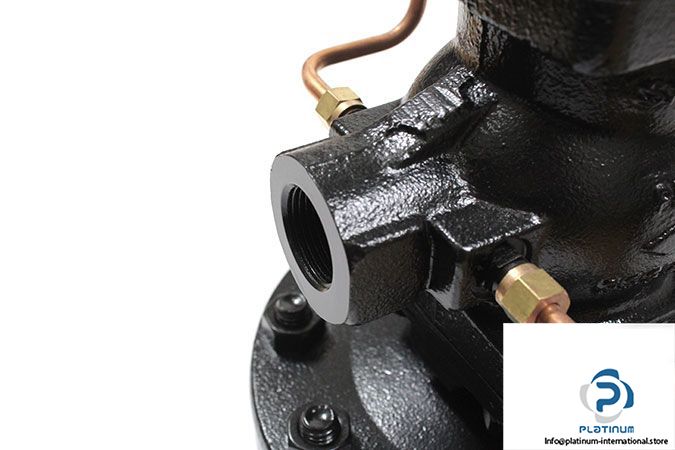

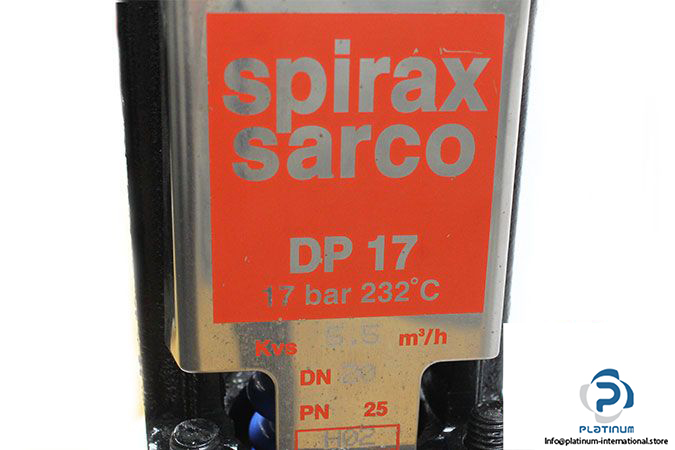

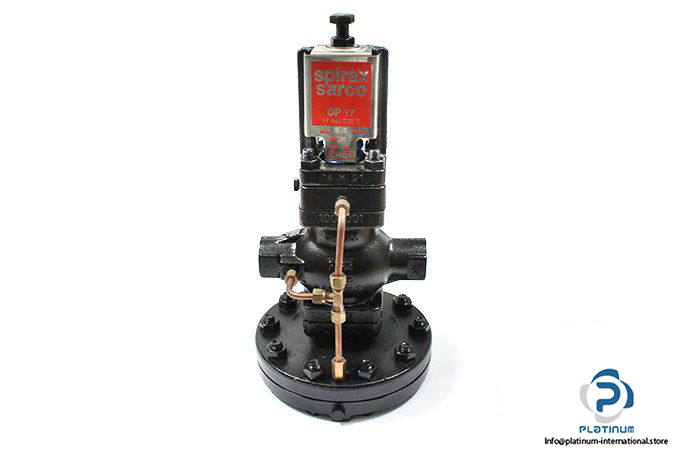

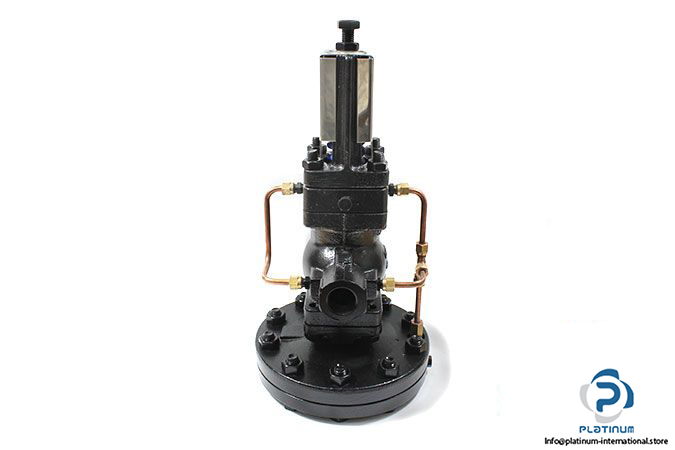

Spirax Sarco DP17 Pressure Reducing Valve
Manufacturer: SPIRAX SARCO
Type: PRESSURE REDUCING VALVE
Model: DP17
IM reference No.: IM-P100-05
Application: Suitable for steam or compressed air applications
Material
Valve Body, Valve Cover: WCB
Valve Seat: 2Cr13
Valve Flap: 2Cr13
Valve Rod: 2Cr13
Membrane: Brass
Adjusting spring: 60Si2Mn
Nominal Diameter: DN20
Nut size: M10
Nominal Pressure: PN25
Maximum differential pressure: 17 bar
Maximum design pressure: 25bar g @ 120
Tightening torques: 40 – 50 Nm
Max Kvs Value: 5.5 m3/h
Connecting Type: Flange
Min. Operating Temperature: -10 °C
Max. Operating Temperature: 232 °C
