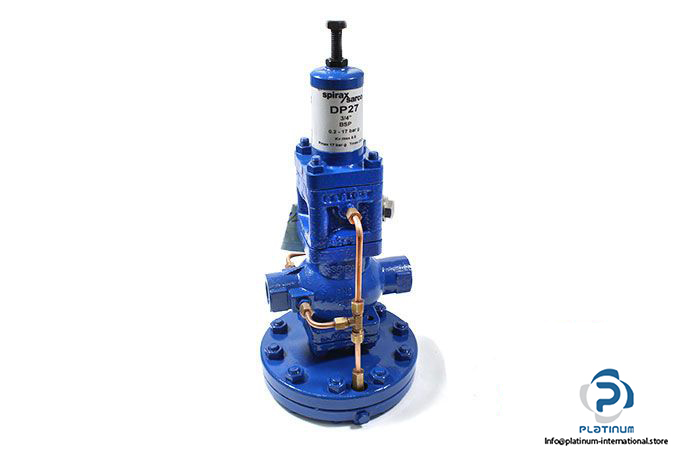

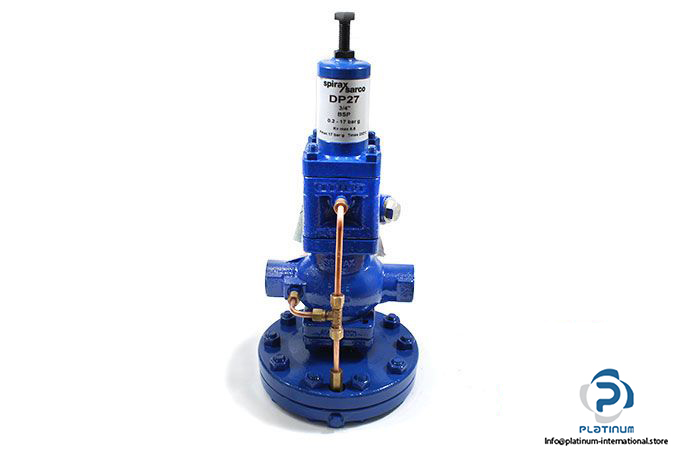

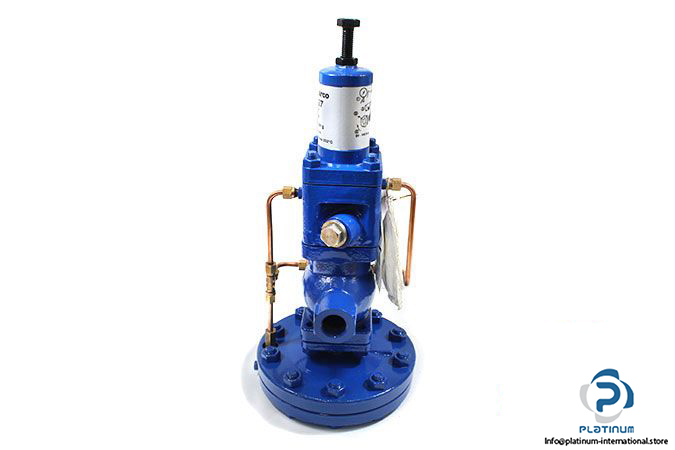

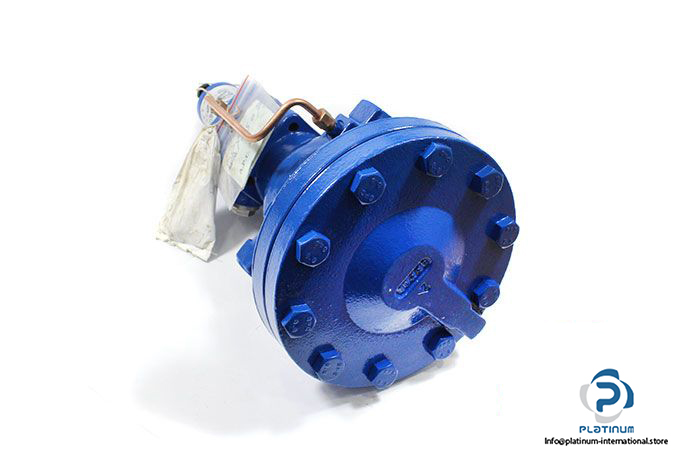

Spirax Sarco DP27 Pressure Reducing Valve

Manufacturer: SPIRAX SARCO

Type: PRESSURE REDUCING VALVE

Model: DP27

Part No.: 4700200

Application: Suitable for steam or compressed air applications

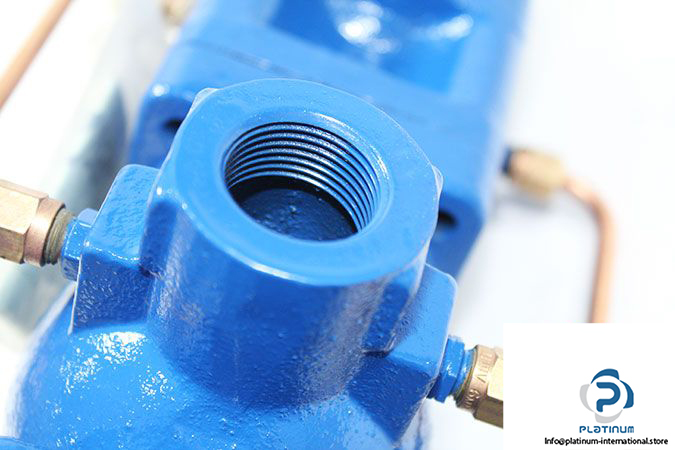

Connection: Threaded BSP 3/4”

Housing Material: GGG403

Material

  Main Body: Steel BS 3692 Gr. 8

Main diaphragms: Phosphor bronze BS 2870 PB 102 1980

Main valve: Stainless steel BS 970 431 S 29

Control pipe assembly: Brass and copper

Spring housing: SG iron DIN1693 GGG 40.3

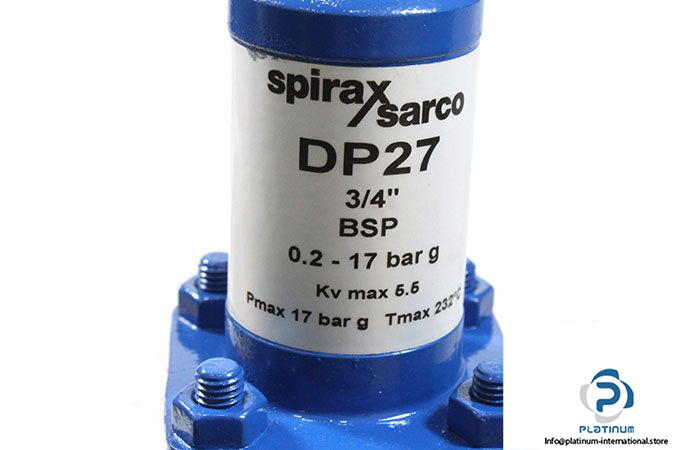

Max. Kv Value: 5.5

Nominal Diameter: DN20

Nominal Pressure: PN25

pressure range: 0.2 … 17 bar g

Mounting Torque: 90 – 100 Nm

Connecting Type: Flange

Min. Operating Temperature: -10 °C

Max. Operating Temperature: 232 °C

Weight: 13.90 kg
