Spirax-Sarco PN 3229 Control Valve
Regelventil SPIRAX-SARCO PN3229 pneumatisch betätigtes Regelventil, DN 32, PN 16, ausgelegt für Ein-Aus-Dampfregelung mit verstärkter Membran und Gehäuse aus Gusseisen.

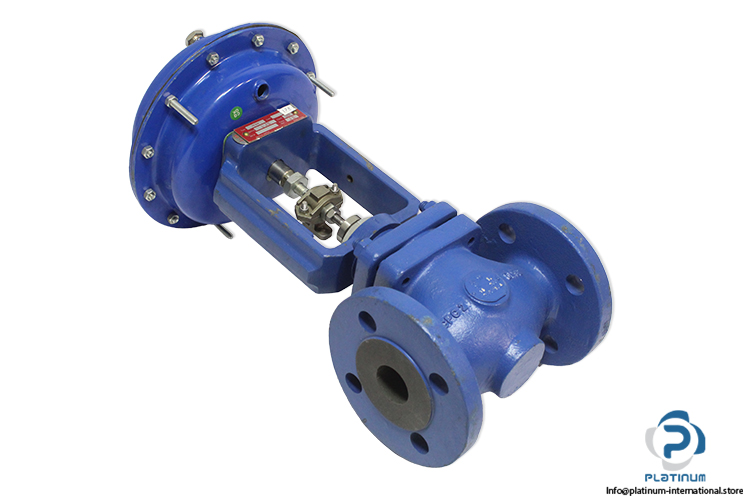

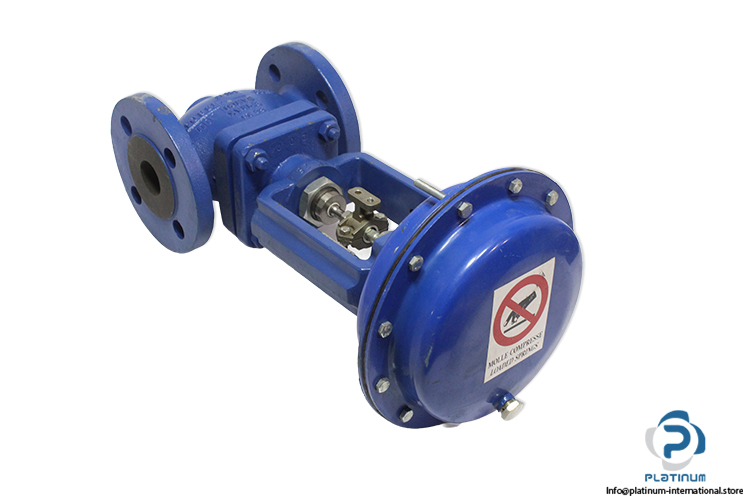

SPIRAX-SARCO PN3229 Pneumatically Actuated Control Valve
The SPIRAX-SARCO PN3229 is a pneumatically actuated control valve from the PN 3200 series, designed for reliable on-off control in steam applications. The valve features a robust cast iron body and a reinforced diaphragm construction, ensuring stable performance under defined pressure and temperature conditions.
Manufacturer: SPIRAX-SARCO
Type: Pneumatically Actuated Control Valve
Model: PN3229
Series: PN 3200

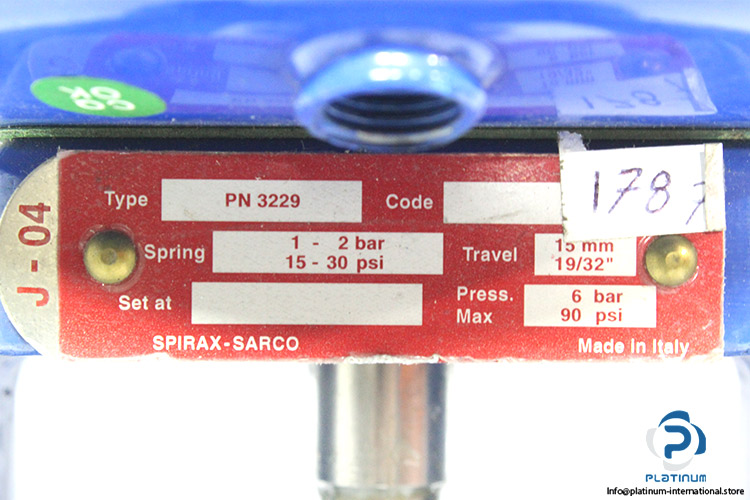

Code: J-04 / 13B04
| Nominal Size | DN 32 |
| Length | 84 mm |
| Number of Springs | 1 |
| Pressure Rating | PN 16 |

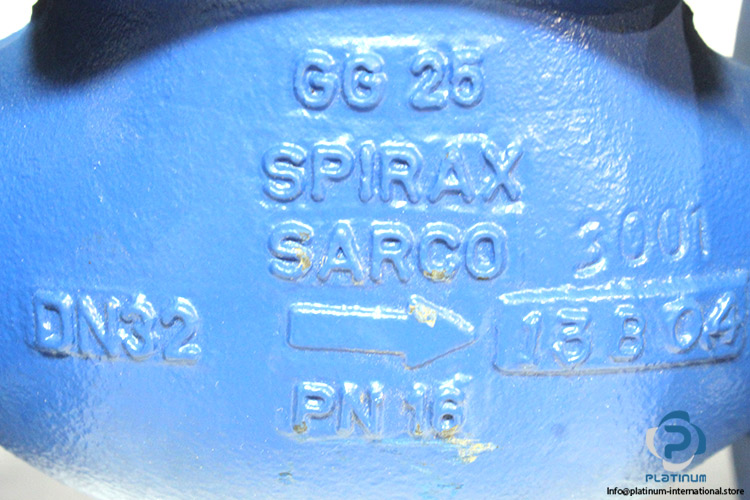

| Housing Material | GG25 Cast Iron |
| Diaphragm Housing | Pressed Steel |
| Diaphragm | 2 Diaphragm, Reinforced Nitrile Rubber |
| Fluid | Steam |
| Type of Actuation | Pneumatic |
| Spring Range (Set Range) | 1 “ 2 bar |
| Travel | 15 mm (On-Off) |
| Maximum Operating Pressure | 6 bar |
| Volume | 0.6 NLitres |
| Connection PN 3200 to 3600 Series | 1/4 NPT |
| Temperature Range | -20° to 100°C |
