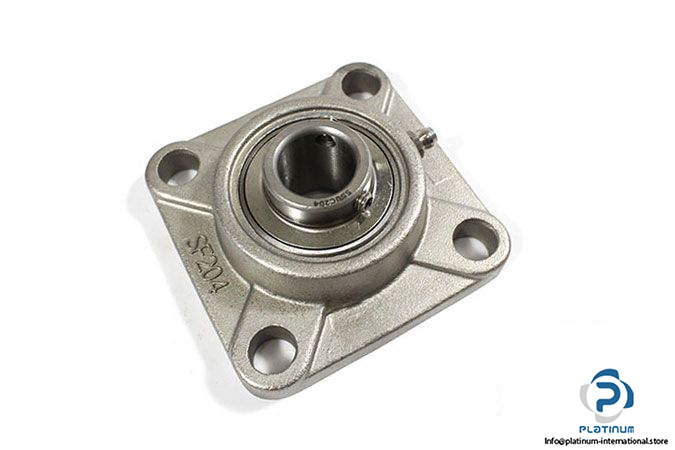

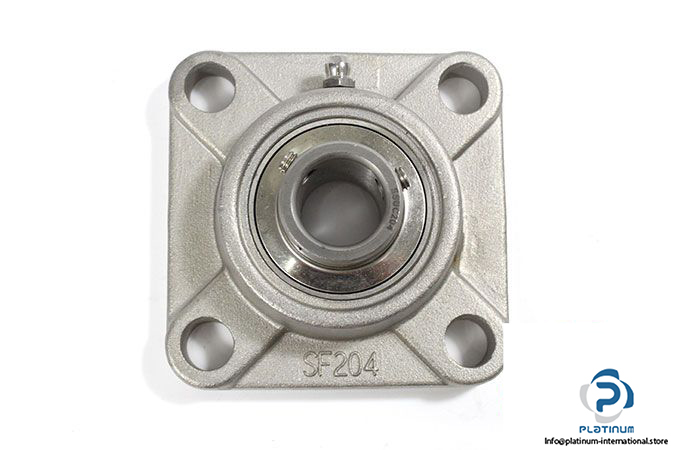

SS-UCF204 Four-Bolt Square Flange Unit

Type:  FOUR-BOLT SQUARE FLANGE UNIT

Series: UCF

Part No.: UCF 204-SUS

Housing No.: F204

Bearing No.: UC204

Features:

• The stainless pillow blocks and stainless bearings–also incorporated into the plastic pillow blocks –are made of AISI 440C and AISI 420 quality stainless steel.
• All the pillow block products include full self-alignment of the bearing, hollow set-screws, steel plate slinger for effective expulsion of dust, contact type seal on both sides of the bearing and grease fitting.

Housing material: Stainless Steel

Bore type: Round

Mounting: Four-Bolt Flange

Locking device: Set Screw

Bore Diameter: 20 mm

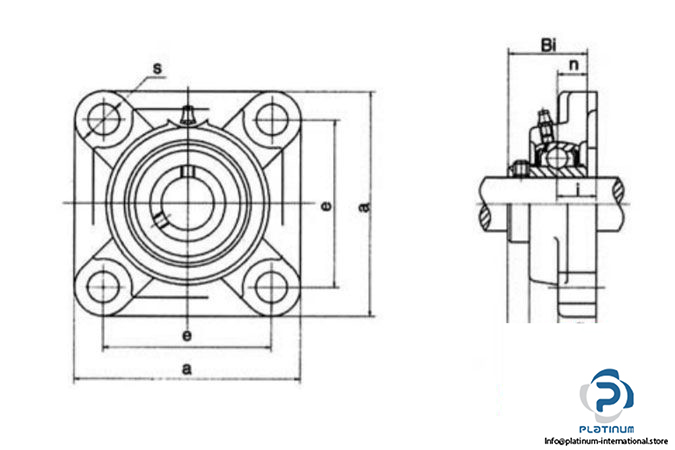

Overall length ( a ): 86 mm

Overall Width ( e ): 64 mm

Overall Height: 33 mm

thread size ( s ): 12 mm

Weight: 0.54 kg
