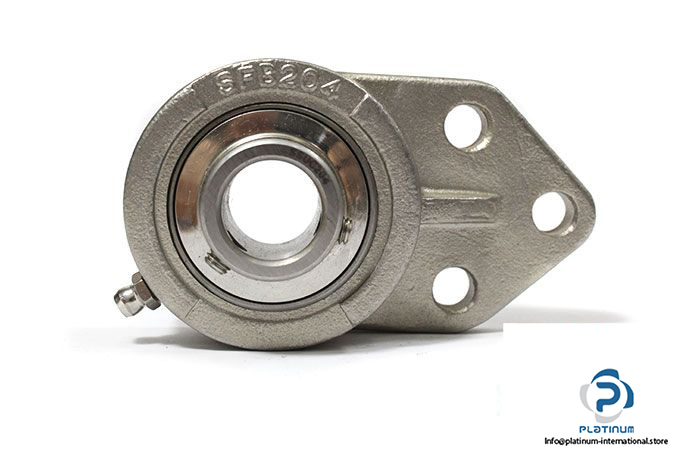

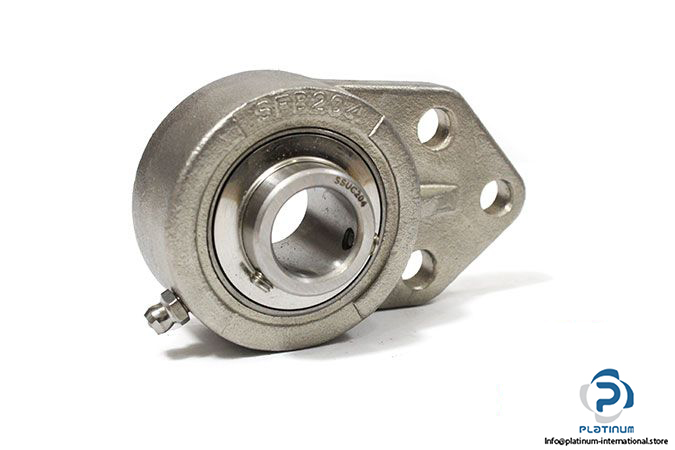

SS-UCFB204 Three-Bolt Flange Bracket Unit

Type: THREE-BOLT FLANGE BRACKET UNIT

Series: UCFB

Part No.: UCFB 204-SUS

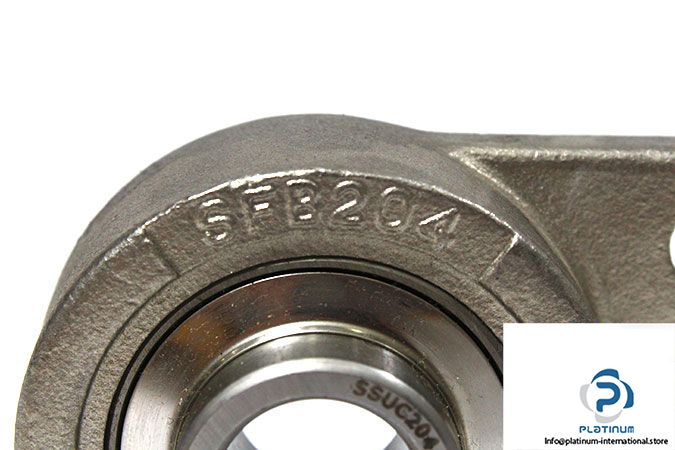

Housing No.: SFB204

Bearing No.: SSUC204

Features:

• The stainless pillow blocks and stainless bearings–also incorporated into the plastic pillow blocks –are made of AISI 440C and AISI 420 quality stainless steel.
• All the pillow block products include full self-alignment of the bearing, hollow set-screws, steel plate slinger for effective expulsion of dust, contact type seal on both sides of the bearing and grease fitting.

Housing Material: Stainless steel

Bore type: Round

Mounting type: Three-Bolt Flange

Locking device: Set Screw

Bore Diameter: 20 mm

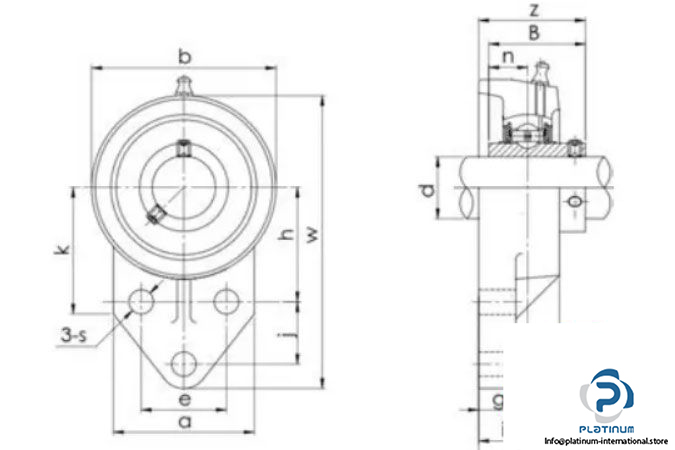

Overall length ( a ): 60 mm

Overall Width ( e ): 38 mm

Overall Height: 33.5 mm

thread size ( s ): 10 mm

Weight: 0.50 kg
