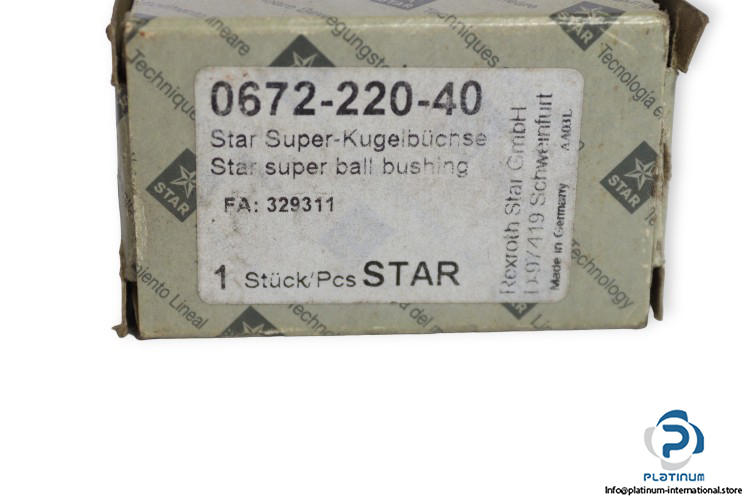

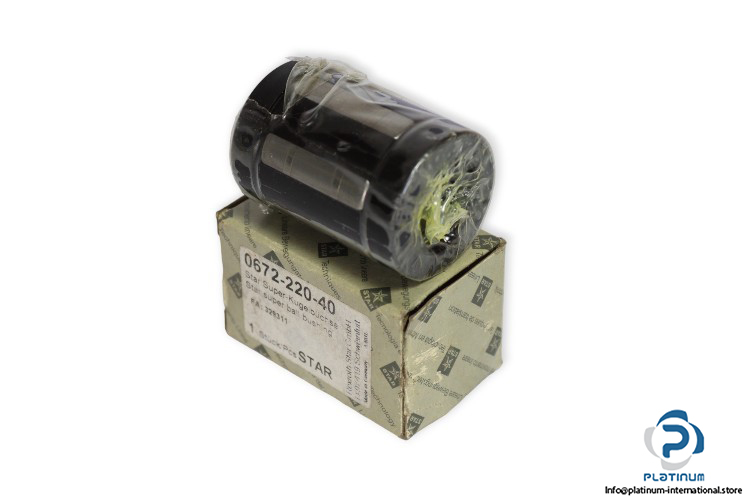

Star 0672-220-40 Super Linear Bushing
Neu
Auf Lager2 EinheitenVersandbereit
50,00$
SUPER LINEAR BUSHING Geschlossener Präzisions-Linearführungslager für Wellen mit Durchmesser 20 mm und 6 Kugelreihen. Entwickelt für Hochgeschwindigkeits- und Hochlast-Linearbewegungssysteme mit geringer Anlaufkraft und effizienter Abdichtung.
20AutomationbearingBoschBushingClosedGuideHighIndustrialLinearmmMotionR067222040RexrothshaftSpeedStarSuperType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
STAR / BOSCH / REXROTH SUPER LINEAR BUSHING KBB
The R067222040 Super Linear Bushing from Star/Bosch/Rexroth is a high-precision closed-type linear bearing designed for smooth linear motion and excellent load-handling capability. Ideal for demanding automation and mechanical applications.
Manufacturer: STAR / BOSCH / REXROTH
Type: Super Linear Bushing KBB
MNR: R067222040
| Shaft Diameter (d0) | 20 mm |
| Rows of Balls | 6 |
| Design Type | Closed Type |
| Max. Linear Speed (vmax) | 3 m/s |
| Max. Acceleration (amax) | 150 m/s² |
| Breakaway Force | 3 N |
| Dynamic Load Capacity (Cmax) | 1860 N |
| Static Load Rating (C0 max) | 1050 N |

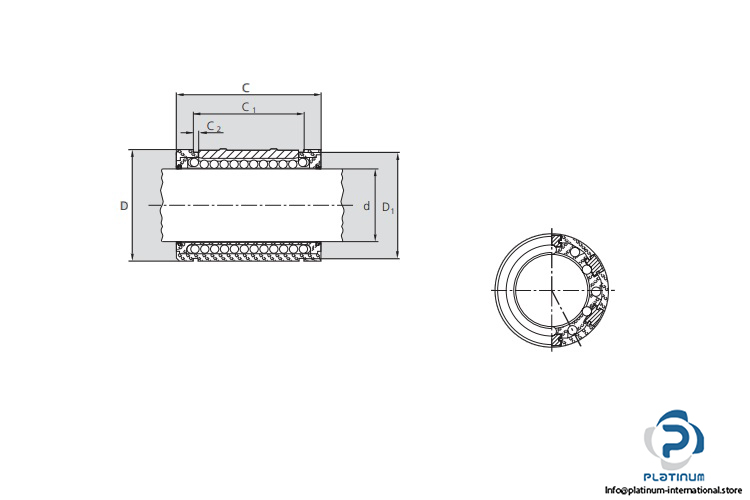

| Outer Diameter (D) | 32 mm |
| Length (C) | 45 mm |
| Dimension C1 | 31.2 mm |
| Dimension C2 | 1.6 mm |
| Inner Diameter (D1) | 30.5 mm |
| Sealing | With Two Internal Seals |
| Permissible Ambient Temperature | -10 / 80 °C |
