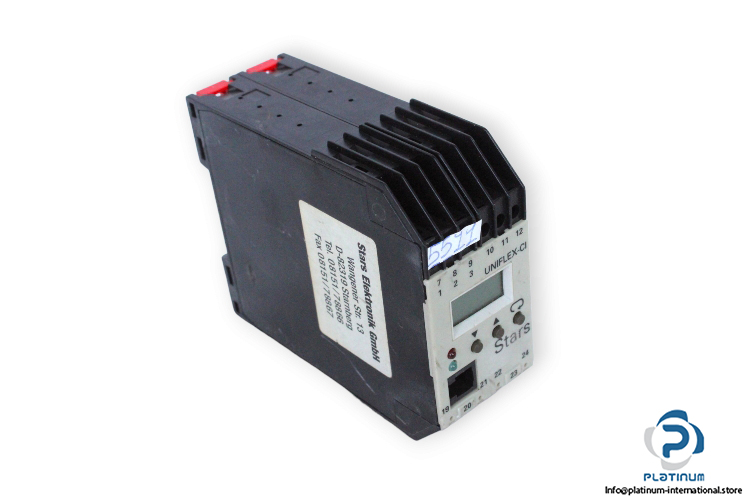

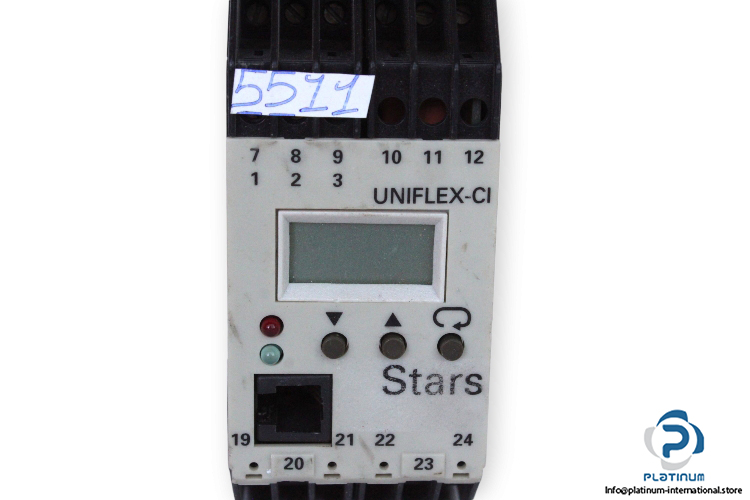

Stars Uniflex-CI Transmitter

Manufacturer: Stars
Type: Transmitter
Model: UNIFLEX-CI

Supply Voltage: 85 … 264 V
Frequency: 48 … 60 Hz
Power Consumption: 6 VA
Contact Configuration: 1 Changeover (CO)
Contact Voltage: 230 V
Power: 250 VA
Standard Current Signal: 0…20 mA/ 4…20 mA
Standard Voltage Signal: 0…10 V
Sensor Type: Pt100, Thermocouple
Mounting: Wall or 35 mm rail to DIN 46277
Resolution: approx. 20 000 steps referred to full span
Housing: Polycarbonate, glass fiber reinforced, self-extinguishing
Pollution degree: 2
Operating Temperature: -10 … 60 °C
Degree of protection: Housing and terminals IP30
Dimensions: 110 X 92 X 40 mm
940421180112010
8346
