Stegmann Sincos SCS 70 Kwaf Encoder
Auf Lager1 EinheitVersandbereit
290,00$
ENCODER Stegmann SINCOS SCS 70 KWAF ist ein hochauflösender Drehgeber mit 16384 Schritten pro Umdrehung und 512 Sinus-/Kosinuszyklen. Entwickelt für präzise Steuerung in der Industrieautomation und Bewegungssystemen.
70AutomationBinaryEncoderFeedbackHighIndustrialIP66KwafMotionOutputResolutionRotarySCSSincosStegmann
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

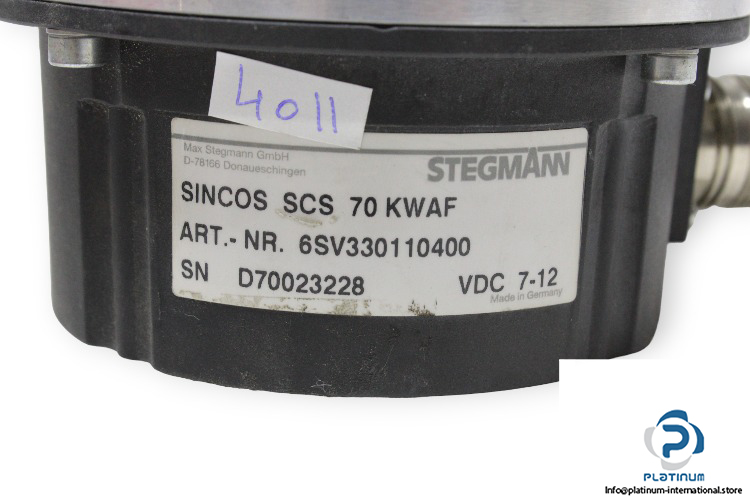

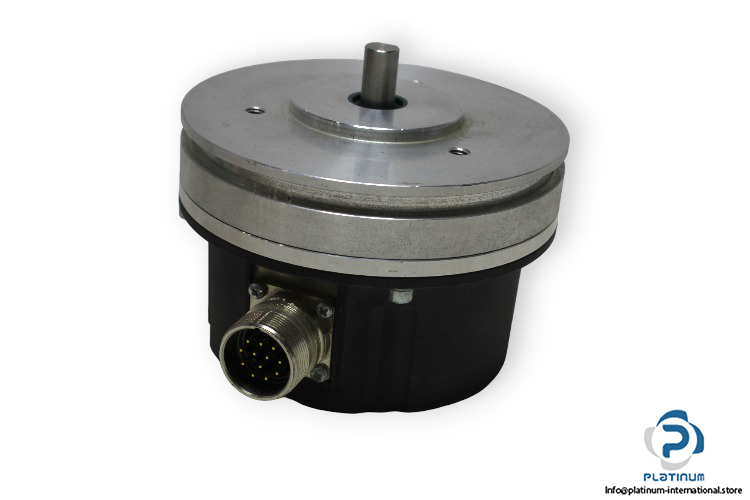

STEGMANN SINCOS SCS 70 KWAF ENCODER
The Stegmann SINCOS SCS 70 KWAF encoder is a high-precision rotary encoder engineered for demanding industrial environments. Its advanced sine/cosine output system ensures exceptional resolution and reliability, making it suitable for automation, servo control, and motion feedback systems.
Manufacturer: Stegmann
Type: Encoder
Model: SINCOS SCS 70 KWAF
Article No.: 6SV330110400
Serial No.: D70023228
| Operating Voltage Range | 7 “ 12 V |
| Max. No-Load Operating Current | 100 “ 130 mA |
| Number of Sine/Cosine Cycles per Revolution | 512 (Binary) |
| Number of Steps per Revolution | 16384 |
| Operating Speed | 12000 min-1 |
| Operating Torque | 0.2 Ncm |
| Operating Temperature | -20 to +125 °C |
| Degree of Protection | IP66 / IP40 |
