Stegmann SRS50 C4 Motor Feedback System
Motor-Feedback-System STEGMANN SICK Motor-Feedback-System mit Sinus-/Cosinus-Signalen, absoluter Positionscodierung und Hochgeschwindigkeitsfähigkeit für industrielle Antriebs- und Automatisierungsanwendungen.

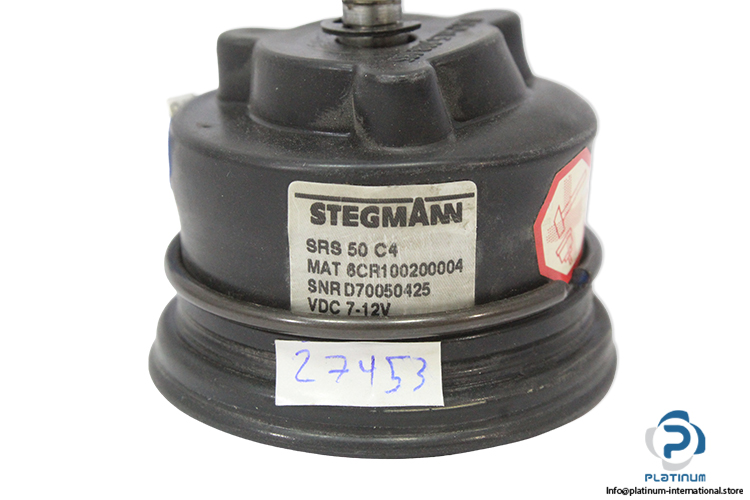

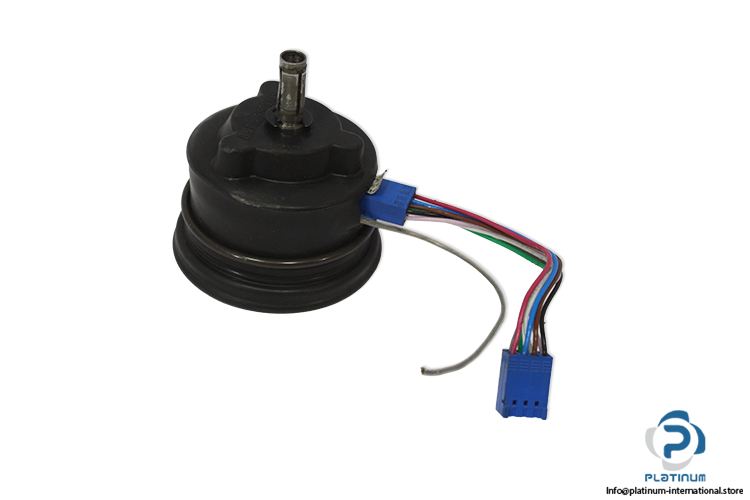

STEGMANN SICK SRS50C4 Motor Feedback System
The STEGMANN SICK SRS 50 C4 motor feedback system is a high-precision encoder designed for accurate motor position and speed feedback in industrial drive and automation systems. It provides reliable absolute position data using sine/cosine signals and supports high operating speeds in demanding environments.
Manufacturer: STEGMANN SICK
Type: Motor Feedback System
Model: SRS 50 C4
Material No.: 6CR100200004
Serial No.: D70050425
| Series | SRS 50 |
| Solid Shaft Diameter | 7 mm |
| Sine / Cosine Periods Per Revolution | 1,024 PPR |
| Operating Speed Max. | 6000 min»¹ |
| Total Number of Steps | Single 32,768 |
| Operating Voltage | 7 / 12 V DC |
| Operating Current Max. | 80 mA |
| Type of Code for Absolute Value | Binary |
| EPROM Memory | 512 (128 Bytes) |
| EEPROM Memory | 2048 (1,792 Bytes) |
| Protection Class | IP40 |
| Operating Temperature | -20 / 115 °C |
| Dimensions | 53 x 40 mm |
