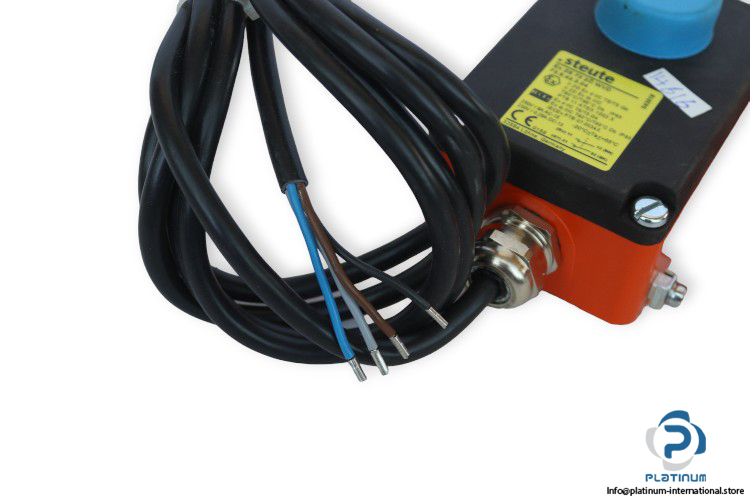

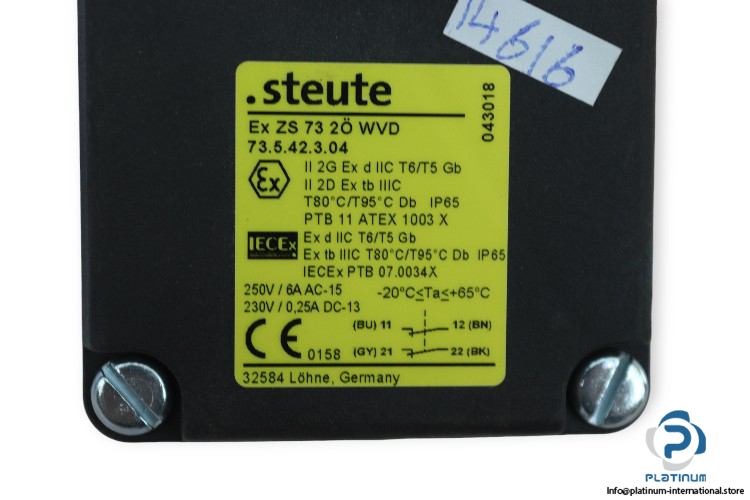

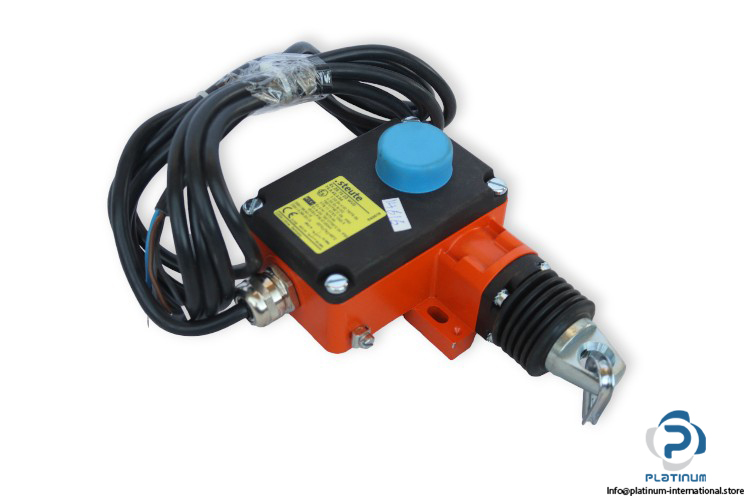

Steute EX ZS 73 2O WVD Emergency Pull Wire Switch
Neu
Auf Lager1 EinheitVersandbereit
188,88$
EMERGENCY PULL WIRE SWITCH
STEUTE EX ZS 73 2O WVD emergency pull wire switch with 250 V insulation voltage, 6 A rating, IP65 protection, 3 m pre-wired cable, and aluminum die-cast housing.250V2O36A7373.5.42.3.04AluminumCabledie-castEmergencyEXIndustrialIP65MPullSafetySteuteSwitchwireWVDZS
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
STEUTE EX ZS 73 2O WVD Emergency Pull Wire Switch
The STEUTE EX ZS 73 2O WVD is a robust emergency pull wire switch engineered for safety-critical applications in industrial environments. With a durable die-cast enclosure, high electrical ratings, and long cable reach, it ensures reliable emergency shutdown capability and operator safety.
Manufacturer: STEUTE
Type: Emergency Pull Wire Switch
Model: EX ZS 73 2O WVD
Part No.: 73.5.42.3.04
| Rated Insulation Voltage (Ui) | 250 V |
| Conventional Thermal Current (Ith) | T6: 6 A, T5: 3 A |
| Rated Operating Current/Voltage (Ie/Ue) | (AC-15) 6 A/250 VAC; (DC-13) 0.25 A/230 VDC |
| Switching System | Slow action, positive break NC contacts |
| Switching Elements | 2 NC contacts, type Zb |
| Short-Circuit Protection | 6 A gG/gN fuse |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Enclosure Material | Aluminum die-cast, enamel finish |
| Cover Material | Thermoplastic, glass-fiber reinforced, shockproof, self-extinguishing UL 94 V-0 |
| Degree of Protection | IP65 |
| Contact Material | Silver |
| Connection | Pre-wired cable H05VV-F |
| Cable Length | 3 m |
| Cable Cross-Section | 4 x 0.75 mm² |
| Max. Wire Length | 130 m |
| Ambient Temperature | -20 °C / +65 °C |
| Dimensions | 166.5 x 105 x 69 mm |
