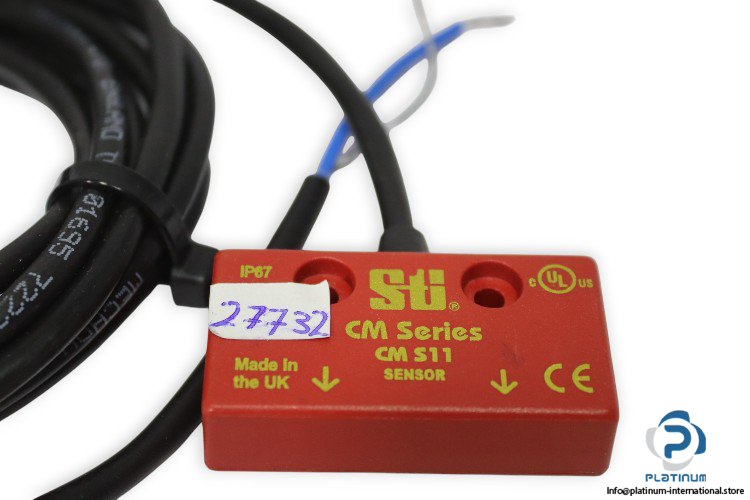

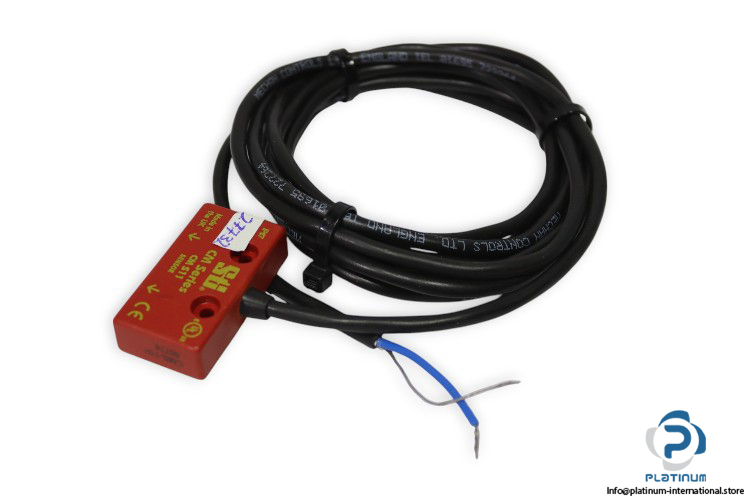

STI CM S11 Safety Switch
STI CM-S11 safety switch with current sensing circuit, IP67 protection, and compact ABS case. Ideal for industrial safety systems with pre-wired cable and 5“12 mm sensing range.
Manufacturer: STI
Type: Safety Switch
Model: CM-S11
Part No.: 61695 722264
Safety Contacts: Current Sensing Circuit
N/C Operating Distance: On = 5“7 mm; Off = 8“12 mm
Minimum Gap: 1 mm
Mounting: 2 x M4 Screws Supplied
Case Material: ABS
Max Wire Size: Pre-wired Cable (Various Lengths)
Color: Red
Protection: IP67
Operating Temperature: 10 to 55°C
The STI CM-S11 safety switch offers reliable non-contact sensing for safety-critical industrial applications. Designed with a rugged ABS case and rated to IP67, this switch ensures dependable operation even in harsh environments. It features current sensing circuitry, a narrow operating gap, and easy installation with M4 screws. The pre-wired cable and compact design make it ideal for integration into machine guarding systems, helping to maintain operator safety and machine compliance.
