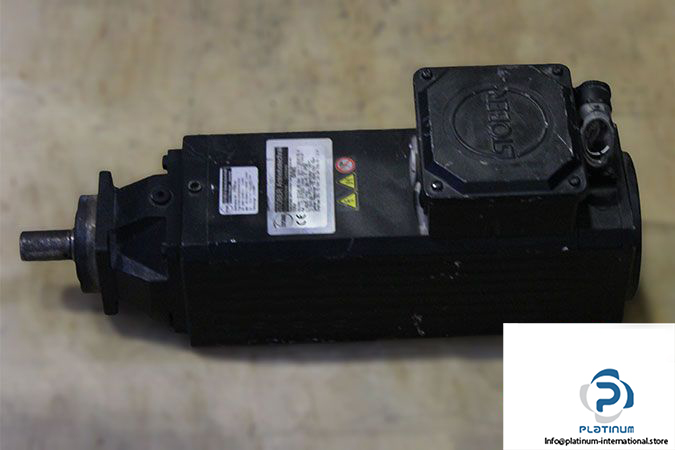

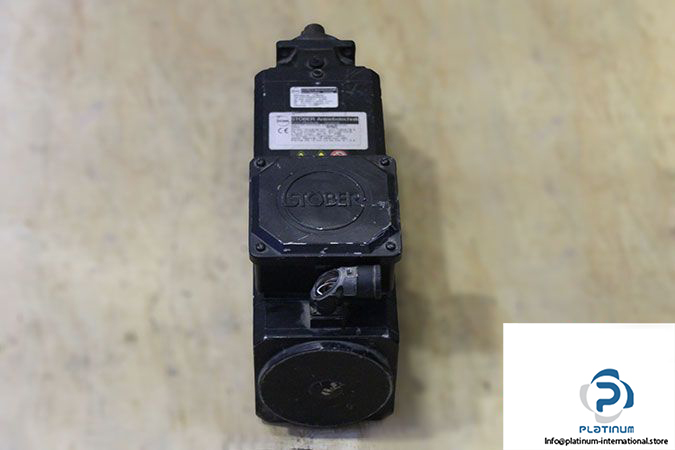

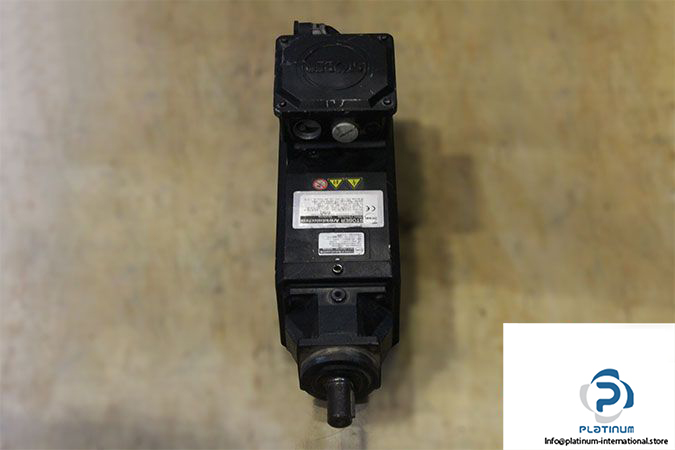

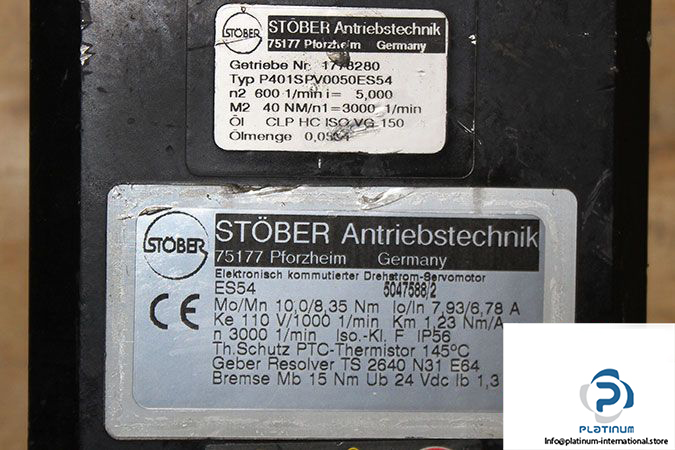

Stober ES54 Servo Motor

Manufacturer: STÖBER ANTRIEBSTECHNIK GmbH

Type: SERVO MOTOR

Model: ES54

Voltage Constant: 110 V/1000 min^-1

Rated Current: 6.78 A

Stall Current: 7.93 A

Rated Speed: 3000 min^-1

Rated Current: 8.35 Nm

Stall Current: 10 Nm

Torque Constant: 1.23 Nm/A

Brake Voltage: 24 VDC

Brake Current: 1.3 A

Brake Torque: 15 Nm

Insulation Class: F

Protection Class: IP56

Weight: 16.27 kg
