Stotz DS674 Circuit Breaker
Neu
Auf Lager1 EinheitVersandbereit
Differential Magnetic Circuit Breaker
The Stotz DS674 circuit breaker provides reliable protection with a 4-pole design, a 0.5 A rated residual current, and a 10 kA short-circuit capacity. Built to handle voltages up to 400 V AC and operate across a wide temperature range, it’s ideal for industrial use.104-pole400ACBreakerCapacityCircuitCurrentdifferentialDS674ElectricalElettrostopIndustrialkAMagneticProtectionResidualShort-CircuitStotzV
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

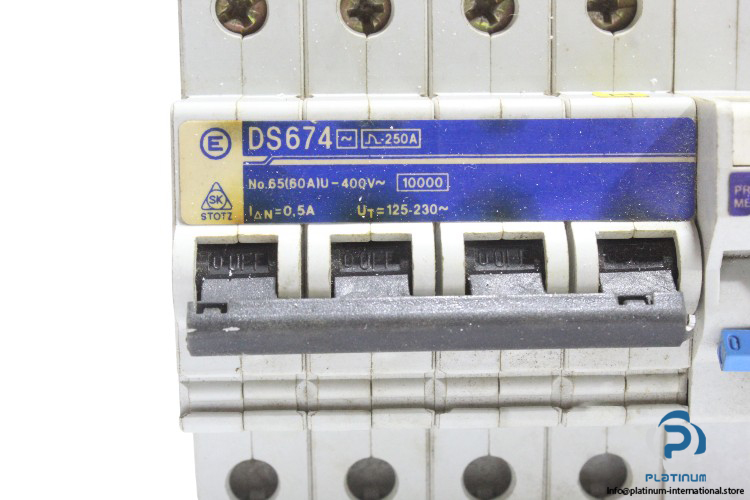

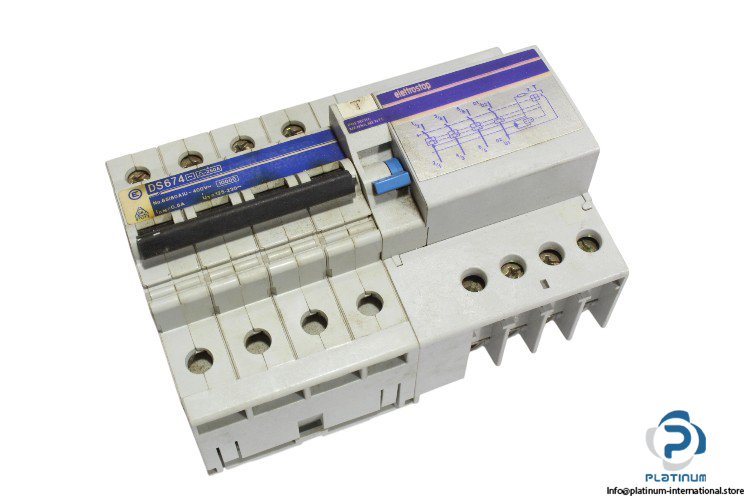

Stotz DS674 “ Differential Magnetic Circuit Breaker
The Stotz DS674 differential magnetic circuit breaker offers reliable protection for electrical circuits by ensuring safety through differential and magnetic tripping mechanisms. It is built to meet the highest standards of operational voltage and current ratings for industrial applications.
Manufacturer: Stotz
Type: Differential Magnetic Circuit Breaker
Model: DS674

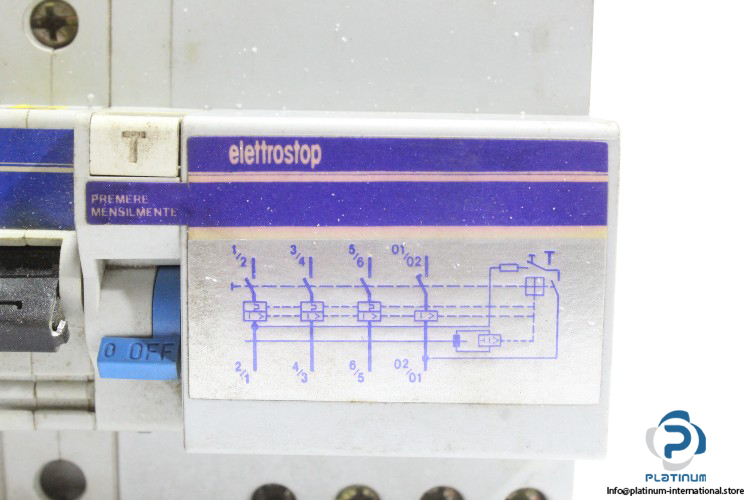

Series: Elettrostop
| No. of Poles | 4P |
| Short-Circuit Current Rating (SCCR) | 30 mA |
| Tripping Characteristic | C |
| Rated Residual Current | 0.5 A |
| Rated Operational Voltage | 400 V AC |
| Rated Current (In) | 65A (60A) |
| Nominal Voltage | 125 / 230 V AC |
| Rated Short-Circuit Capacity | (400 V AC) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 15 kA |
| Maximum Breaking Capacity | 10 kA |
| Rated Frequency (f) | 50 to 60 Hz |
| Power Loss | 28.2 W |
| Ambient Air Temperature Operation | -25 to +55 °C |
| Dimensions | 140 x 85 x 69 mm |
