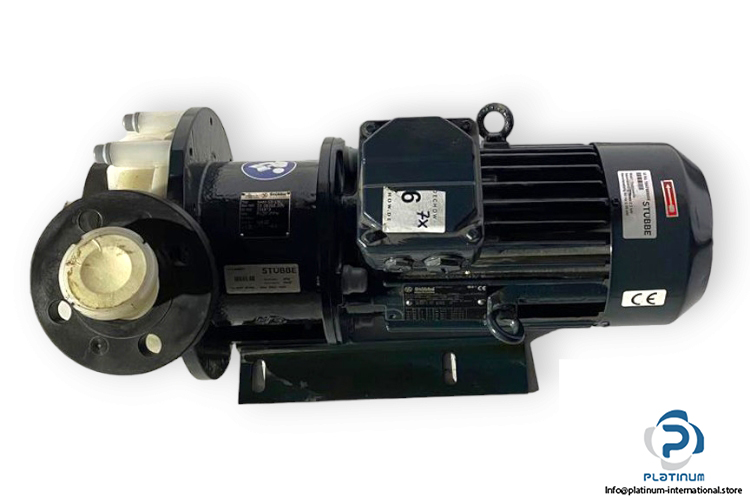

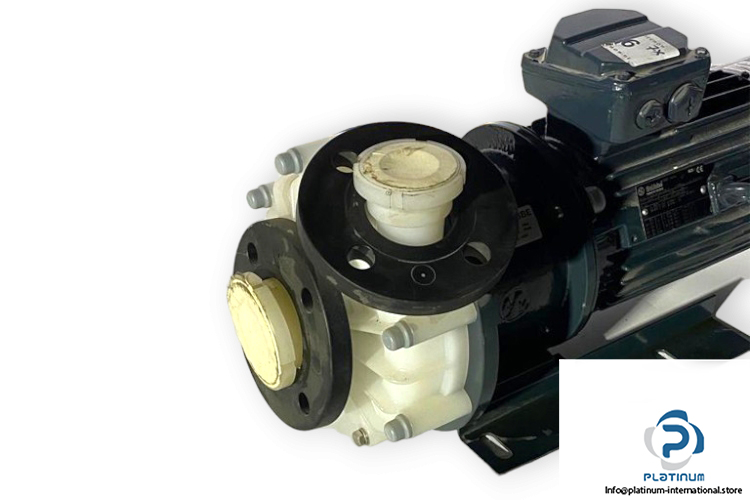

Stübbe SHM-50-40L Centrifugal Pump
1 199,99$
Magnetisch gekoppelte Kreiselpumpe Die Stübbe SHM-50-40L Kreiselpumpe bietet eine zuverlässige, leckfreie Flüssigkeitsförderung für chemische und industrielle Systeme. Hergestellt aus PVDF-FPM-Materialien und kombiniert mit einem Stübbe 1TZ9503-0EA42-2FB4-Z Motor, gewährleistet sie Korrosionsbeständigkeit und einen effizienten Betrieb bis zu 65 m³/h bei 110 °C.

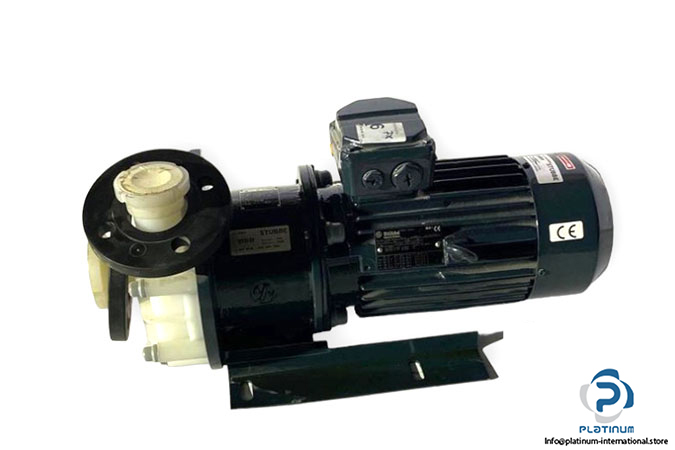

Stübbe SHM-50-40L Magnetic Coupled Centrifugal Pump
The Stübbe SHM-50-40L is a high-performance magnetic coupled centrifugal pump designed for handling aggressive and corrosive fluids. Built with a robust PVDF-FPM material combination, it ensures excellent chemical resistance and long operational life. Ideal for chemical processing, water treatment, and industrial fluid transfer applications requiring leak-free and reliable operation.

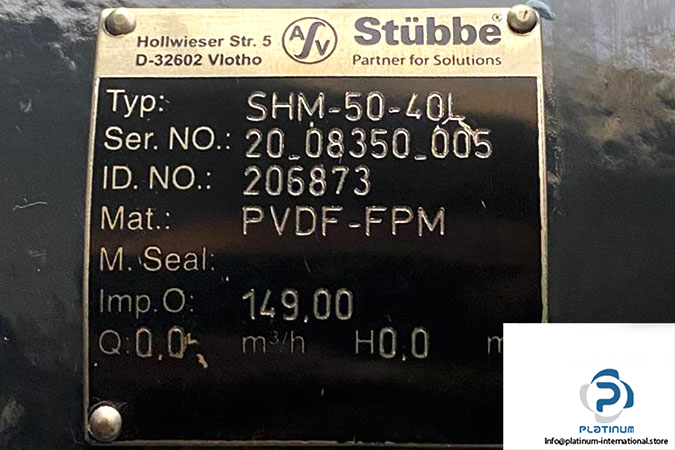

Manufacturer: Stübbe
Type: Magnetic Coupled Centrifugal Pump
Model: SHM-50-40L
ID. No.: 206873
M. No.: PVDF-FPM
Part No.: 20-08350-005
Motor Attachment

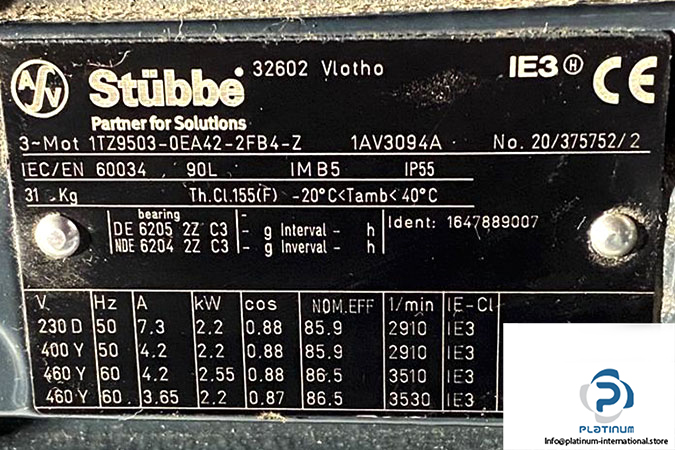

Motor Technical Information
| Flow Rate | up to 65 m³/h |
| Max. Operating Temperature | 110 °C |
| Fluid Viscosity Max. | 160 mPas (cP) |
| Fluid Density | 1.9 kg/dm³ |
| Attachment | Stübbe 1TZ9503-0EA42-2FB4-Z Motor |
| Part No. | 20/375752/2 |
| Part No. | 1647889007 |
| Motor Voltage [V] @ 50 Hz | 230/400 Delta/Star |
| Current [A] | 7.3/4.2 |
| Rated Power [kW] | 2.2 |
| Rated Speed [RPM] | 2910 |
| Motor Voltage [V] @ 60 Hz | 460 Star |
| Current [A] | 4.2/3.65 |
| Rated Power [kW] | 2.55/2.2 |
| Rated Speed [RPM] | 3510/3530 |
| Protection Class | IP55 |
