Stucchi VU34 BSP 1.5 PSI Check Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
CHECK VALVE
Heavy-duty hydraulic check valve with 1.5¯psi cracking pressure and 300¯bar operating capacity. Designed for leak-proof flow control under pressure with metal-to-metal sealing.1.530034barBSPCarbonCheckControlCrackingflowG1HighHydraulicIndustrialMetalModelPneumaticPortPressurePSISealSteelStucchiThreadedValveVU
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

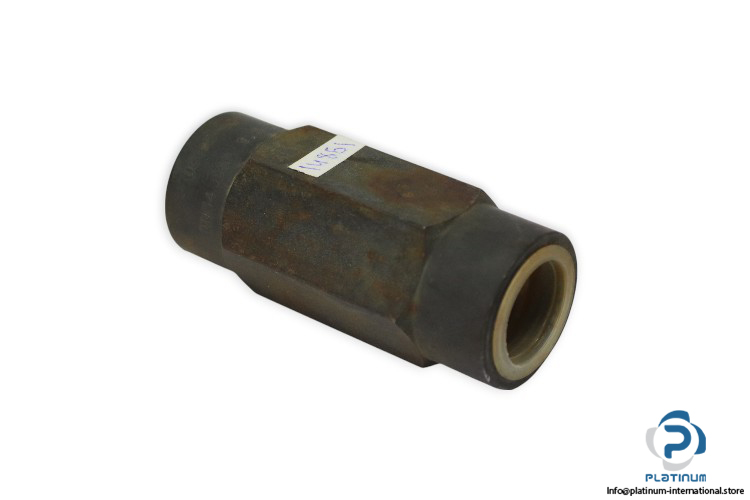

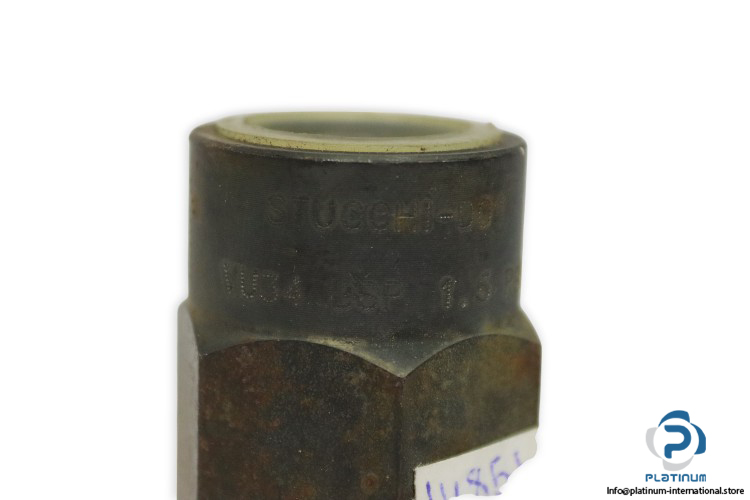

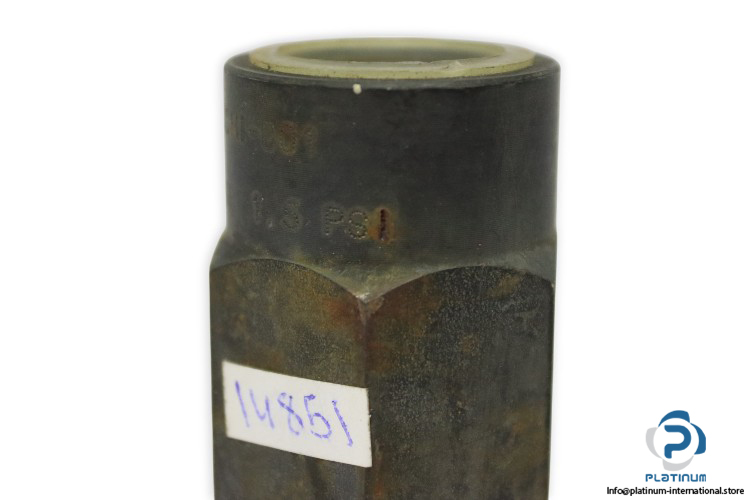

STUCCHI VU 34 BSP 1.5 PSI CHECK VALVE
Industrial-grade check valve engineered for high-pressure hydraulic and pneumatic systems. Designed with precision sealing and durable construction for reliable unidirectional flow control in demanding environments.
Manufacturer: Stucchi
Type: Check Valve
Model: VU 34 BSP 1.5 PSI
Code: D01
| Thread Type | BSP Female |
| Cracking Pressure | 1.5¯psi |
| Material | Carbon steel body with steel piston (C72 spring), black phosphate finish |
| Seal | Metal‘to‘metal sealing to prevent extrusion and leakage under load |
| Max Operating Pressure | 300¯bar (4350¯psi) |
| Burst Pressure | 120¯MPa (17400¯psi) |
| Suggested Flow Rate | 148¯L/min (39.2¯GPM) |
| Operating Temperature Range | -20¯°C to +120¯°C |
| Pneumatic Port | G1 |
