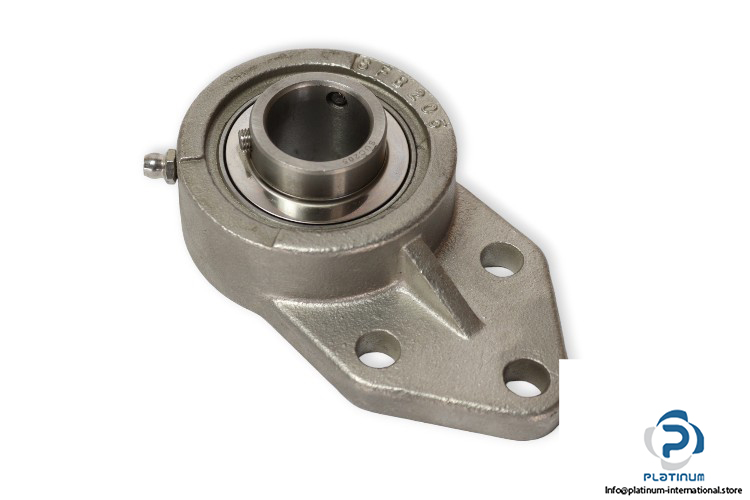

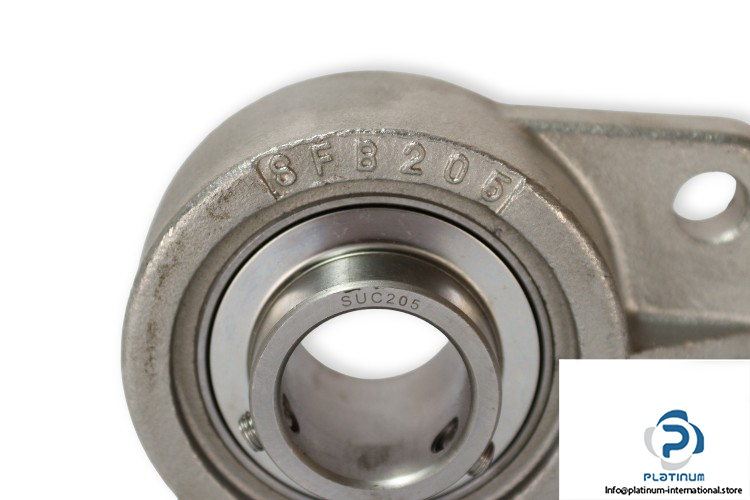

SUCSFB205 Stainless Steel Three-Bolt Flange Bracket Unit
Neu
Auf Lager22 EinheitenVersandbereit
Typ: Edelstahl 3-Schrauben-Halterungseinheit Modell: SUCSFB 205 Gehäusenr.: SFB205 Lagernr.: SUC205
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Type: Stainless Steel 3-Bolt Bracket Unit
Model: SUCSFB 205
Housing No.: SFB205
Bearing No.: SUC205
Dimensions
Bore Diameter d: 25 mm
Overall length b: 68 mm
Overall height w: 116 mm
Overall Width z: 35.8 mm
Distance Between Attachment Bolts e: 34 mm
Diameter of attachment bolt hole: 10 mm
Mounting type: Three-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
