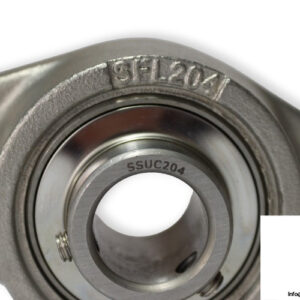

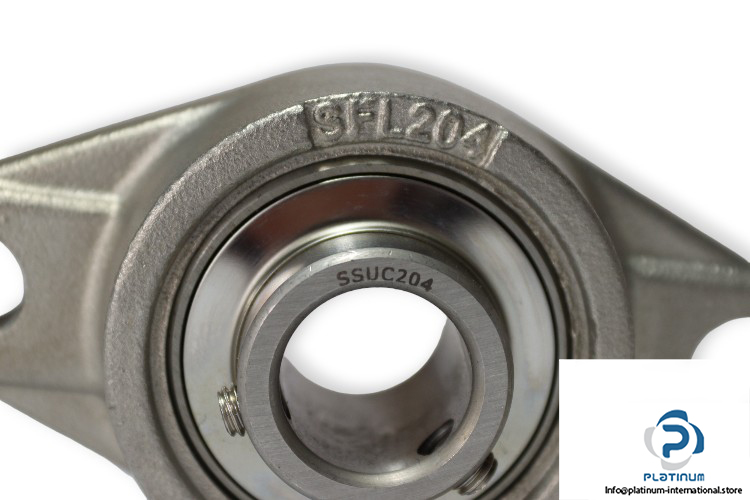

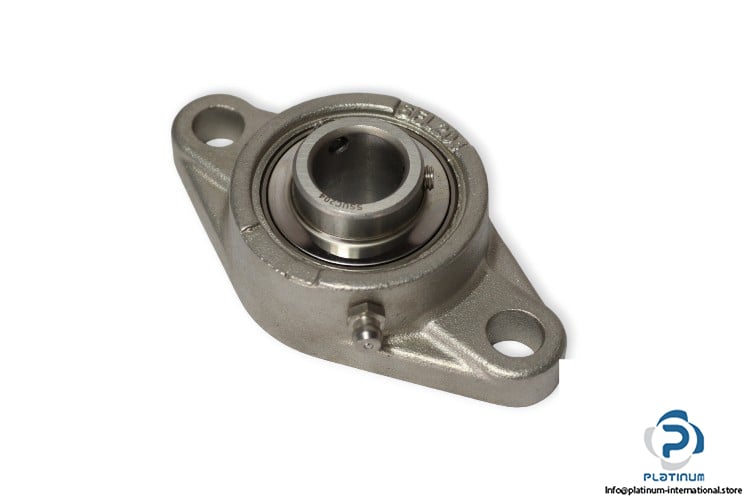

SUCSFL204 Stainless Steel Oval Flange Housing Unit

Type: Stainless Steel Oval Flange Housing Unit
Model: SUCSFL 204
Housing No.: SFL204
Bearing No.: SSUC204

Dimensions
Da: 47 mm
Overall Length b: 60 mm
Overall Height a: 112 mm
Distance mounting surface to bearing center g: 11.5 mm
Housing height i: 15.1 mm
Distance Between Attachment Bolts e: 89.7 mm
Diameter of attachment bolt hole s: 12 mm
Mounting: Oval Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
