Sunon A2175-HBL Axial FAN
Axiallüfter Sunon A2175-HBL, 220–240 V AC, hoher Luftstrom bis zu 239 CFM, Kugellager-Design mit thermischem Schutz für industrielle Kühlanwendungen. Empfohlen für elektrische Schaltschränke und Bedienfelder, die eine stabile und kontinuierliche Belüftung erfordern.

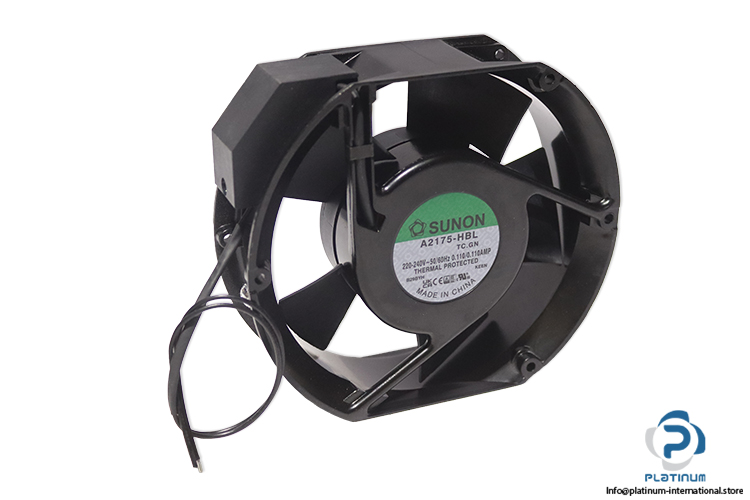

Sunon A2175-HBL Axial Fan
The Sunon A2175-HBL axial fan is designed for efficient airflow and reliable thermal management in industrial and electrical applications. Engineered for stable performance at both 50 Hz and 60 Hz, this fan delivers high airflow output with durable construction.

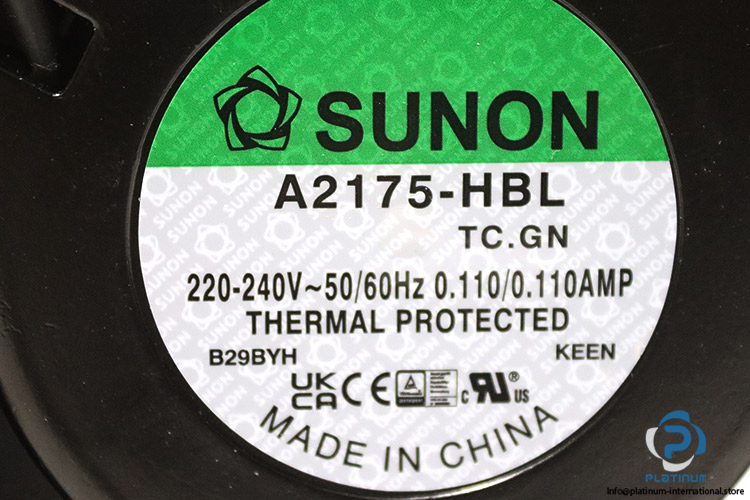

Manufacturer: Sunon
Type: Axial Fan
Model: A2175-HBL
Code: B29BYH
Ideal for control panels, electrical cabinets, power supplies, and industrial cooling systems requiring continuous airflow and reliable heat dissipation.
| Voltage | 220“240 V AC |
| Current | 0.110 / 0.110 A |
| Frequency | 50 / 60 Hz |
| Power | 25 / 26 W |
| Air Flow Rate | 203 / 239 CFM |
| Flow Rate (Max) | 403.91 m³/h |
| Speed | 2800 / 3200 rpm |
| Number of Blades | 5 |
| Direction | Push |
| Bearing Type | Ball Bearing |
| Inverter | Without Inverter |
| Number of Wires | 2 |
| Blade Material / Housing Material | Plastic / Metal |
| Protection | Thermal Protected |

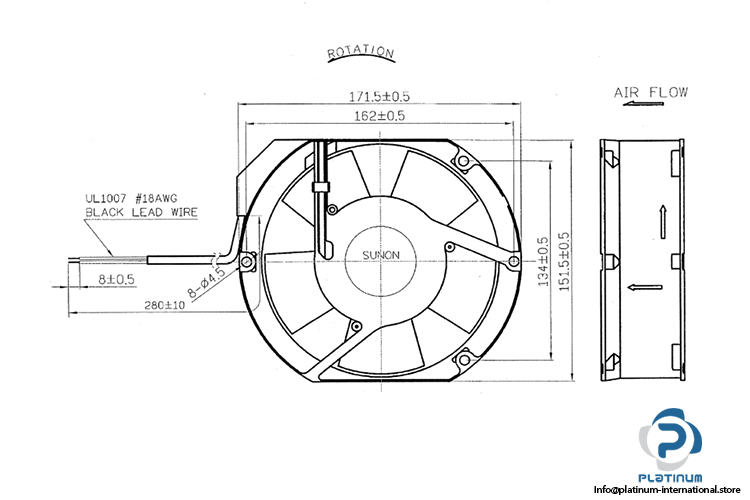

| Dimensions | 171 × 151 × 51 mm |
