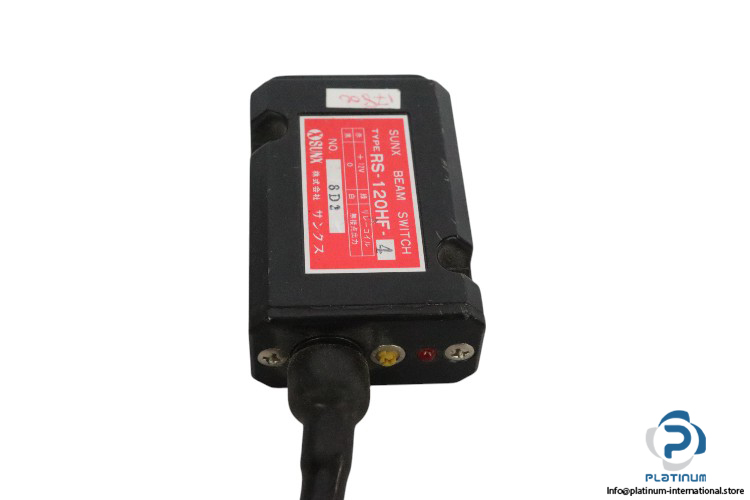

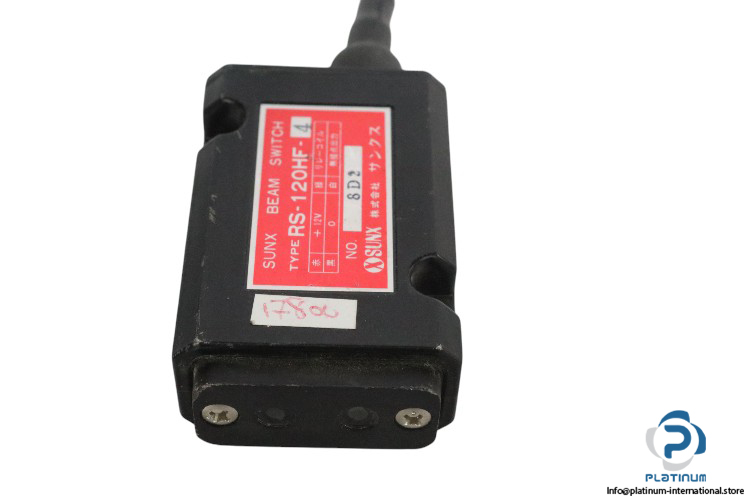

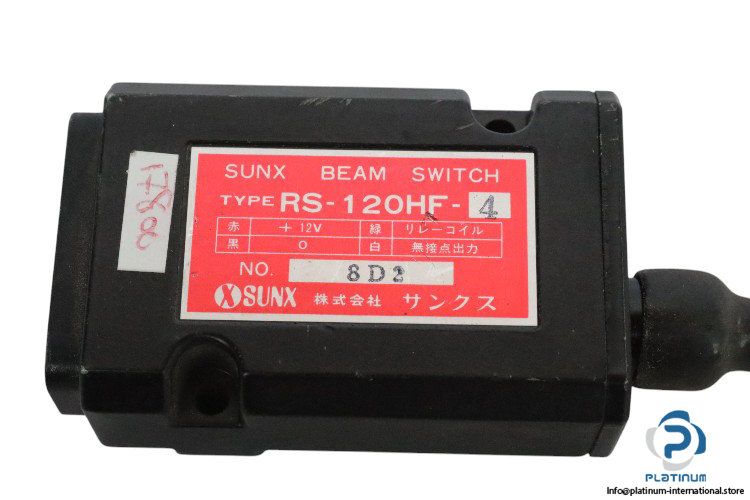

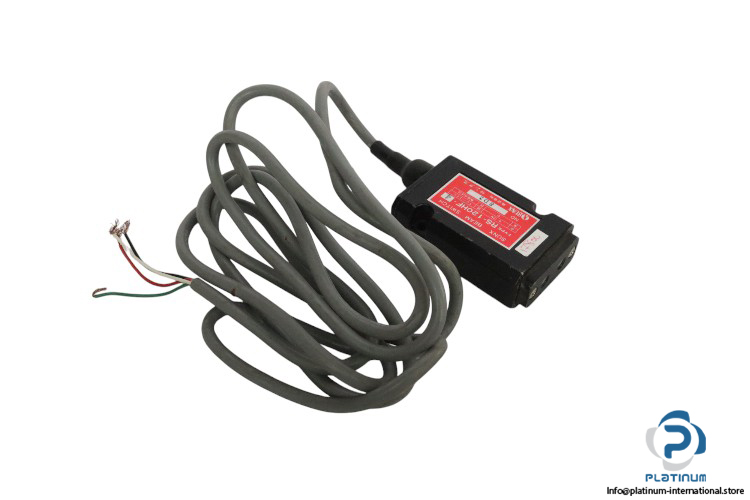

Sunx RS-120HF-4 Beam Switch Sensor
Gebraucht
Auf Lager2 EinheitenVersandbereit
Sunx Strahlschalter-Sensor RS120HF4 mit einer Detektionsreichweite von 90 mm, Infrarot-Licht-Sensormethode und NPN-Ausgang. Entwickelt für Industrieumgebungen mit einer Schaltfrequenz von bis zu 500 Hz.
50090aANDbeamdesignedEnvironments.forFrequencyHzIndustrialinfraredLightMethodmmNPNOfOutputRangeRS120HF4SensingSensorSunxSwitchSwitchingtoupWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Sunx Beam Switch Sensor RS120HF4
Sunx Beam Switch Sensor RS120HF4 is a high-performance sensor designed for reliable sensing applications in industrial environments. Featuring a diffuse-reflective infrared light sensing method, it provides precise object detection within a range of 90 mm. Below are the key technical specifications:
- Manufacturer: Sunx
- Type: Beam Switch Sensor
- Model: RS120HF4
- Part No.: 8D2
Technical Data:
- Sensing Method: Diffuse-Reflective (infrared light)
- Sensing Range: 90 mm
- Operating Voltage: 12 / 24 V DC
- Consumption Current: 50 mA
- Output: 2 wires, NPN
- Operation Indicator: Red LED
- Switching Frequency: Up to 500 Hz
- Degree of Protection: IP62
- Connection Method: Cable
- Cable Length: 2 m
- Ambient Temperature: -10 to 60°C
