Swep E6TX14 Heat Exchanger
Heat Exchanger
High-efficiency Swep E6TX14 heat exchanger with 316/316L stainless steel plates, copper brazing, 40-plate capacity, and 4 m³/h max flow. Compact design ideal for HVAC, industrial cooling, and thermal processing systems.Swep E6TX14 Heat Exchanger
The Swep E6TX14 is a compact and high-efficiency heat exchanger designed for reliable thermal transfer in industrial, HVAC, and process applications. Built with durable 316/316L stainless steel plates and copper brazing, it provides stable performance even under demanding conditions.
Manufacturer: Swep
Type: Heat exchanger
Model: E6TX14
Part No.: 58747
Series: E6T

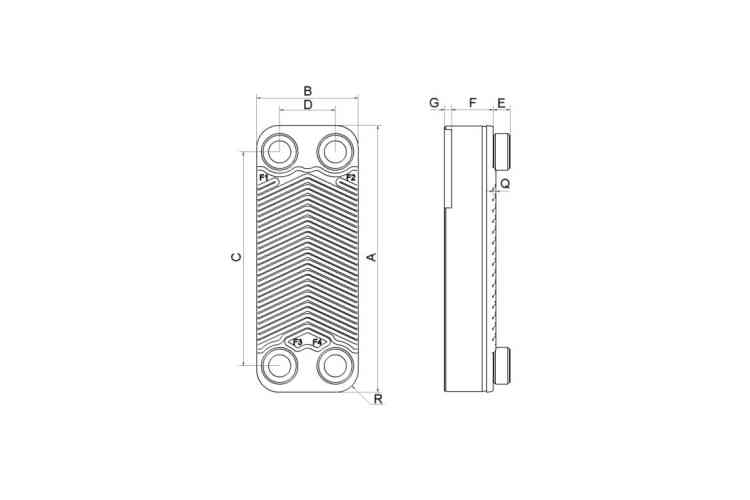

Dimensions
Recommendation
This Swep E6TX14 heat exchanger is highly recommended for users who need a compact yet powerful thermal solution. Its robust stainless-steel construction, high flow capability, and efficient plate design make it ideal for cooling systems, heating circuits, hydraulic units, and closed-loop process applications. Its long service life and easy installation provide an excellent balance of performance and value.
| Maximum number of plates (NoP) | 40 |
| Max flow | 4 m³/h (17.61 gpm) |
| Channel volume | 0.026/0.026 dm³ (0.0009/0.0009 ft³) |
| Material | 316/316L stainless steel plates, copper brazing |
| Max particle size | 1 mm |
| A | 210 mm |
| B | 73 mm |
| C | 172 mm |
| D | 40 mm |
| G | 7 mm |
| Q | 2 mm |
| R | 16 mm |
