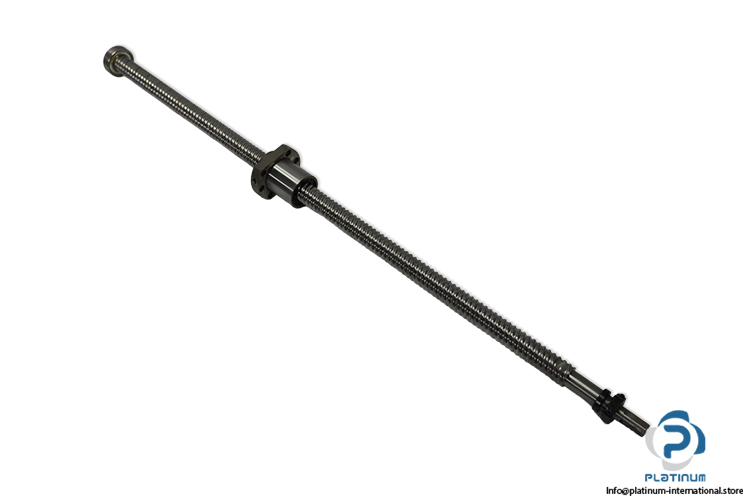

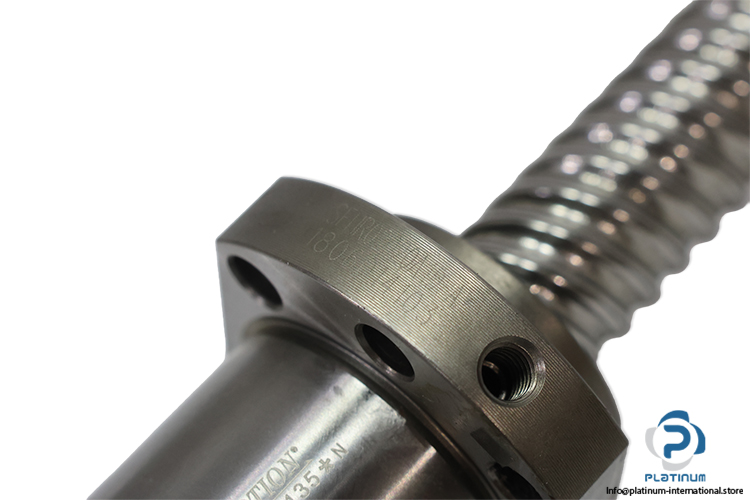

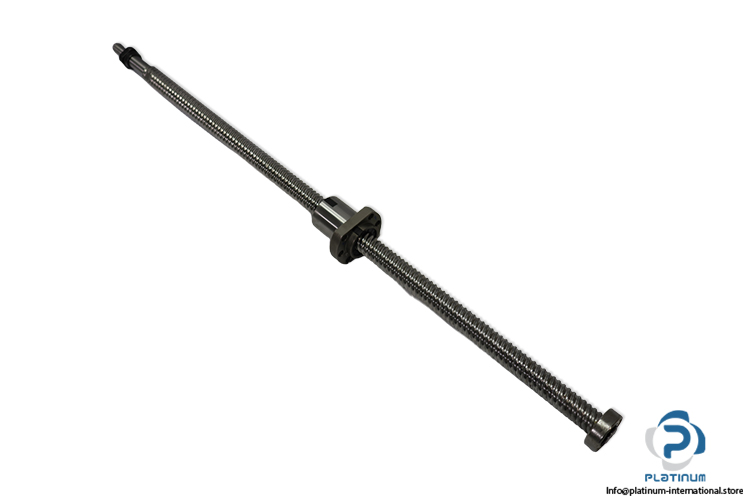

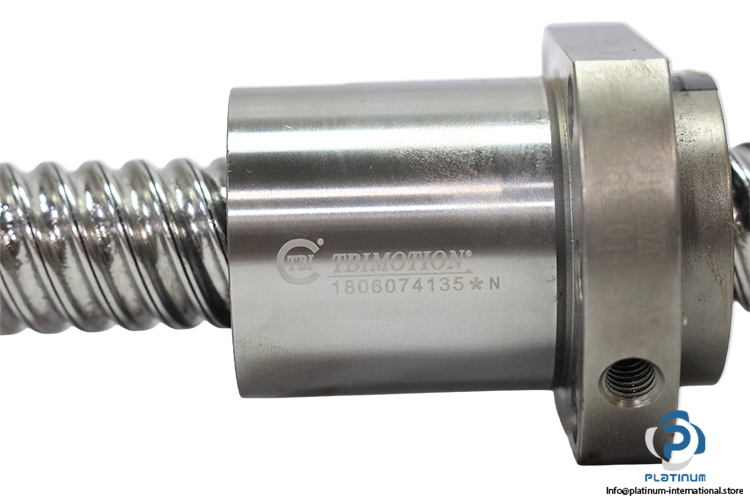

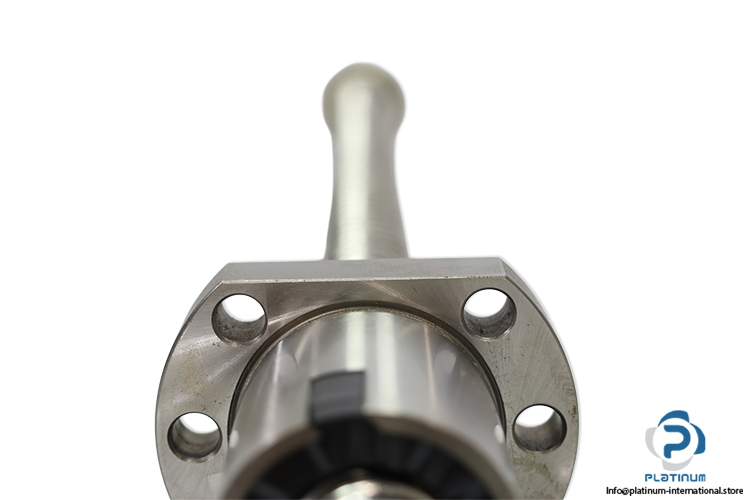

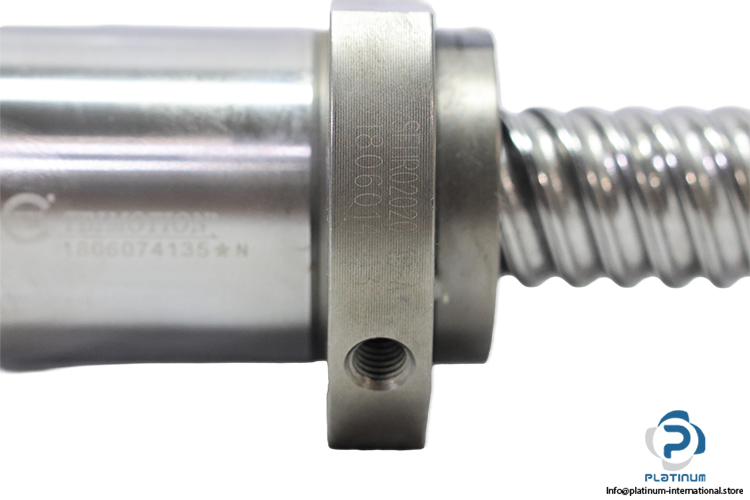

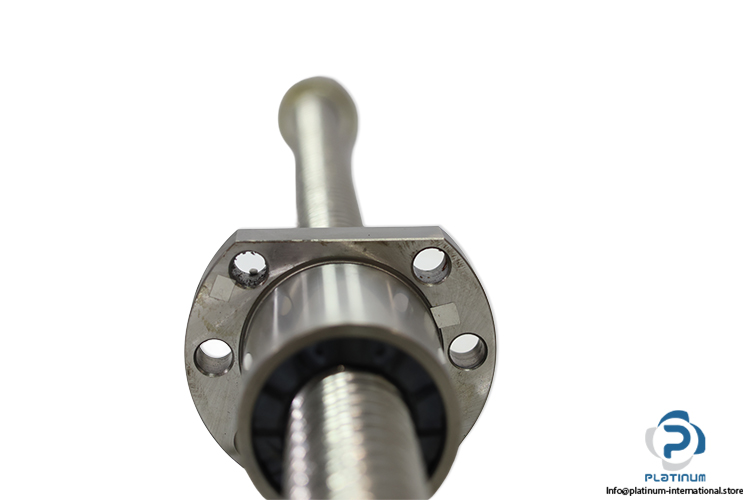

TBI SFHR02020A1D-A Ball Screw
Gebraucht
Auf Lager1 EinheitVersandbereit
Ball Screw TBI ball screw with 20mm nominal diameter and 20 mm lead, designed for precise and reliable linear motion in industrial machinery and automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | 1806014103, 1806074135*N |
| Size | 20 x 20 R |
| Nominal Diameter | 20 mm |
| Lead P | 20 mm |
| Number of starts | 4 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 36 mm |
| Flange diameter | 58 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 44 mm |
| Nut length | 54 mm |
| Threaded length | 630 mm |
| Total screw length | 700 mm |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101085 |
| Weight | 1,8 |
