Technobright EL150 PWM 150W Frequency Generator

Manufacturer: TECHNOBRIGHT

Type: Frequency Generator

Model: EL150 PWM

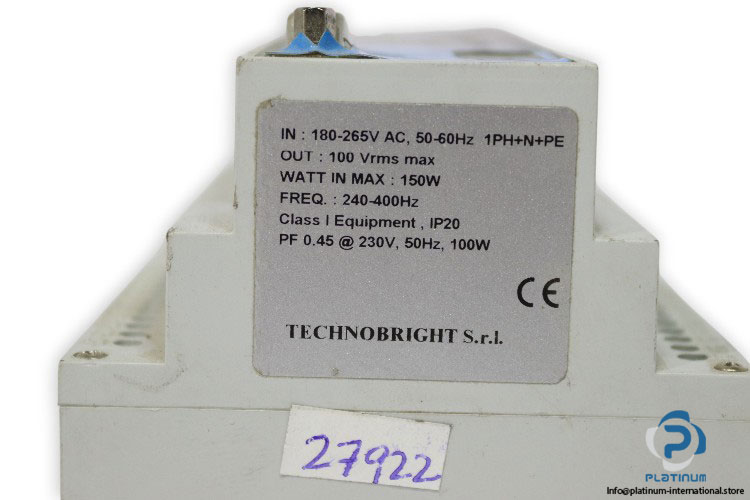

Input Voltage: 180“265V AC

Input Frequency: 50“60Hz

Phases: 1PH + N + PE

Output Voltage: 100 Vrms max

Max Input Power: 150W

Output Frequency: 240“400Hz

Protection Class: IP20

Power Factor: 0.45 @ 230V, 50Hz, 100W

The TECHNOBRIGHT EL150 PWM is a high-performance frequency generator built for industrial applications requiring reliable output in demanding environments. It supports wide input voltage ranges and delivers stable frequency output between 240“400Hz, ideal for systems with variable speed or frequency requirements. Engineered for efficiency and safety, it features IP20 protection and is suitable for precision control systems, industrial testing, and automation setups.
