Tekel TK 421.F.500.12.S.10.S.PP Incremental Encoder
Gebraucht
Auf Lager2 EinheitenVersandbereit
175,00$
Inkrementalgeber TEKEL TK421-F-500-12-S-10-S-PP bietet eine Auflösung von 500 PPR, Push-Pull-Ausgang und eine 10 mm Masswelle, ideal für präzise Bewegungssteuerung in der industriellen Automatisierung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

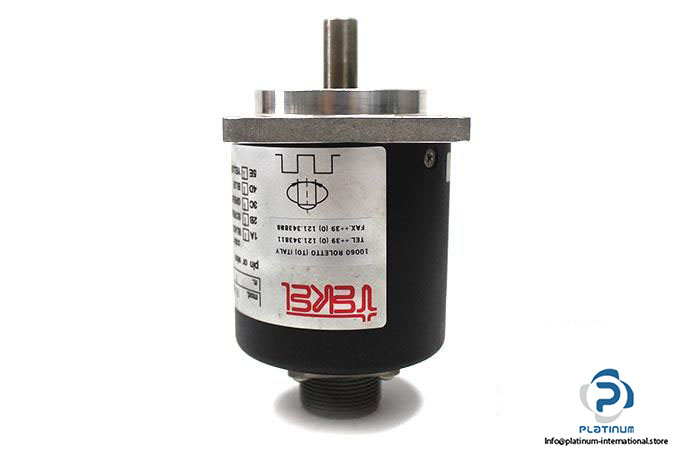

TEKEL TK421-F-500-12-S-10-S-PP INCREMENTAL ENCODER
The TEKEL TK421-F-500-12-S-10-S-PP is a robust incremental encoder engineered for precise position and speed feedback in industrial automation systems. Its solid shaft design, push-pull output circuit, and 500 PPR resolution ensure reliable performance in demanding environments.
Manufacturer: TEKEL
Type: Incremental Encoder
Model: TK421-F-500-12-S-10-S-PP

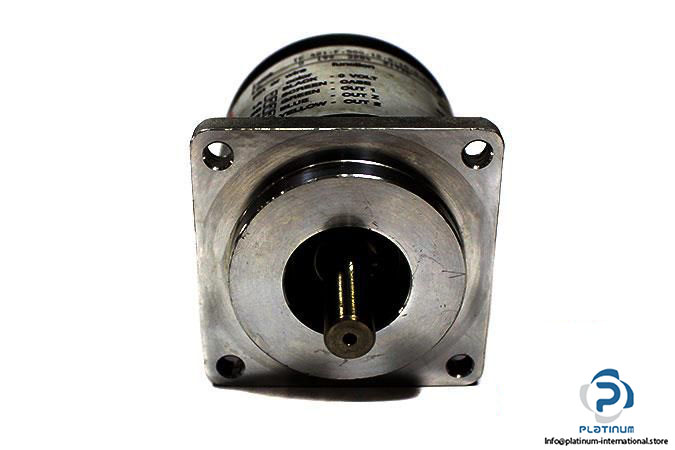

| Flange Type | Square flange |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm |
| Resolution | 500 pulses per revolution (PPR) |
| Voltage Supply | 12 V DC |
| Output Circuits | Push-Pull |
| Output Frequency | 0 / 50 KHz |

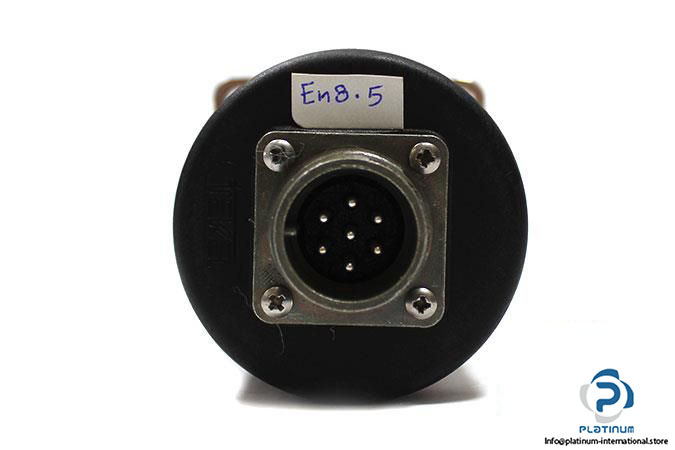

| Connection Type | Axial MIL connector (7 pins) |
| Temperature Range | -10 / 70 °C |
