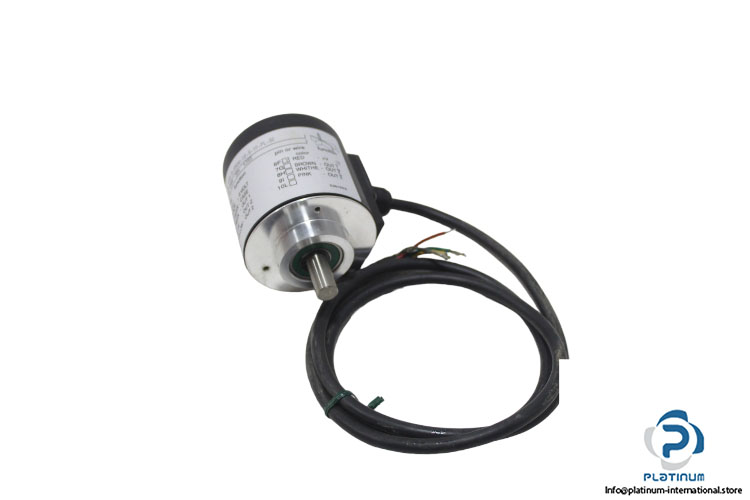

Tekel TK 492.S.2500.12.S.10.PL.OC Incremental Encoder
INKREMENTALGEGER Tekel TK 492.S.2500.12.S.10.PL.OC inkrementaler Geber mit 12 V Versorgung, 50 KHz Frequenzbereich und 10 mm Welle. Verfügt über IP55 Schutz, NPN Open-Collector Ausgang und Servostandard-Montage.
TEKEL TK 492.S.2500.12.S.10.PL.OC INCREMENTAL ENCODER
The Tekel TK 492.S.2500.12.S.10.PL.OC is a high-precision incremental encoder built for demanding industrial automation and motion control systems. With durable construction and a wide frequency range, it ensures accurate speed and position feedback in harsh conditions.
Manufacturer: Tekel
Type: Incremental Encoder

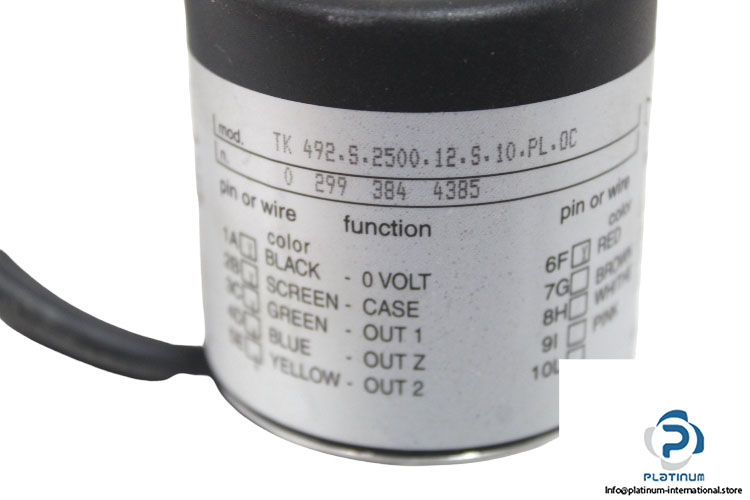

Model: TK 492.S.2500.12.S.10.PL.OC
Part No.: 0 299 384 4385
| Voltage Supply | 12 V |
| Frequency Range | 0 / 50 KHz |
| Shaft Diameter | 10 mm |
| Slewing Speed | 2500 |
| Connection | Radial cable gland with 1 / 6 m cable |
| Output | NPN open collector |
| Assembly | Servo standard |
| Operating Temperature | -10 / +70 °C |
| Degree of Protection | IP 55 |
