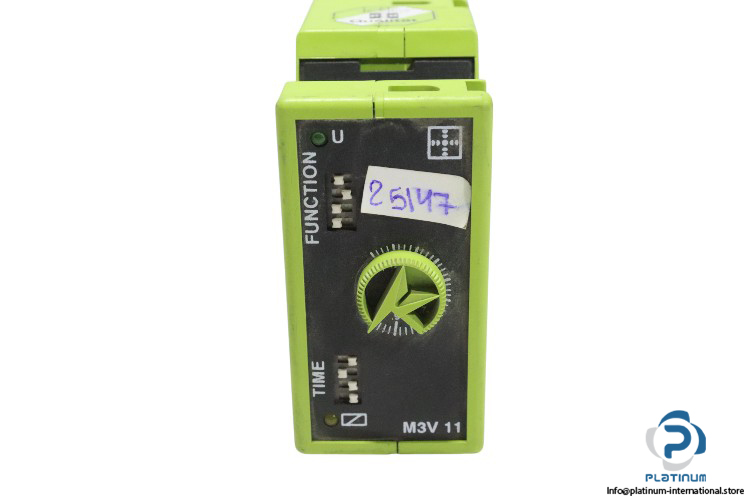

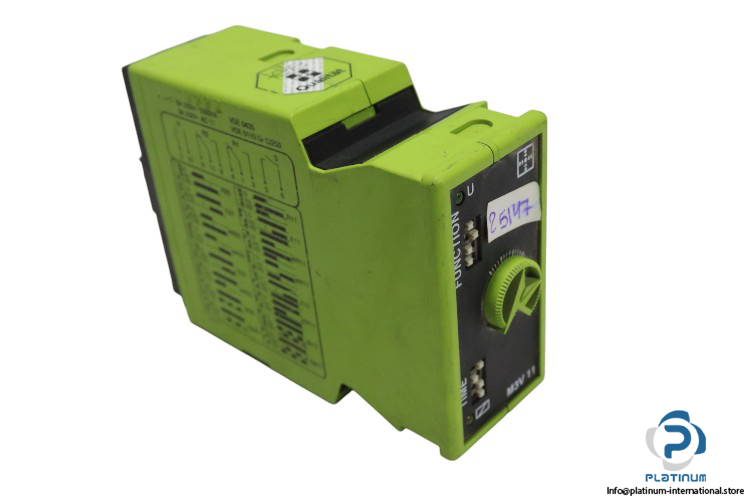

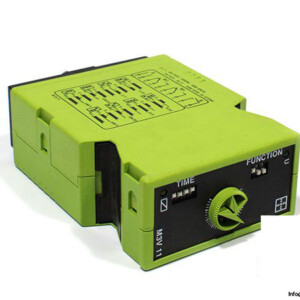

TELE / ALFA LAVAL M3V11 Time Relay
The TELE / ALFA LAVAL M3V11 is a versatile time relay designed for reliable timing control in industrial automation. With dual output functionality and a robust IP40-rated enclosure, it supports consistent operation in a wide ambient temperature range.
Manufacturer: TELE / ALFA LAVAL
Type: Time Relay
Model: M3V11
Part No. (mnr): TR3-48VAC
Technical Data:
- Voltage: 48 V AC
- Frequency: 50 / 60 Hz
- Consumption Power: 4 VA
- Ambient Temperature: -25 / +55 °C
- Mechanical Protection: IP40

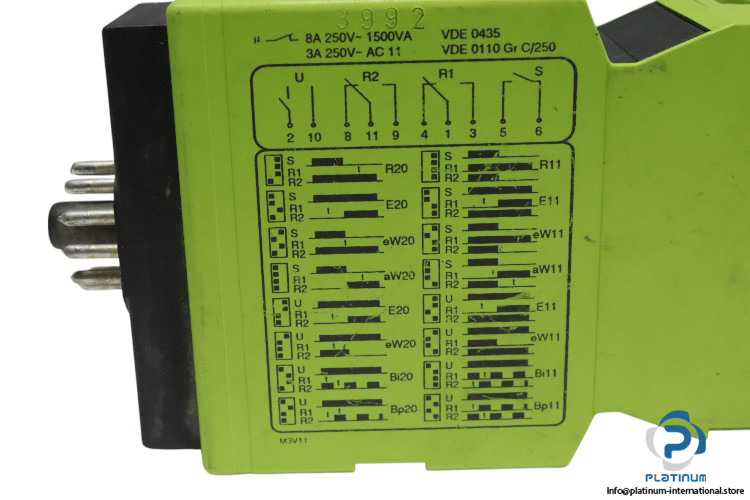

- Output: 2-Pole changeover (1 delayed, 1 instantaneous)
- Dimensions: 75 x 35 x 109 mm
