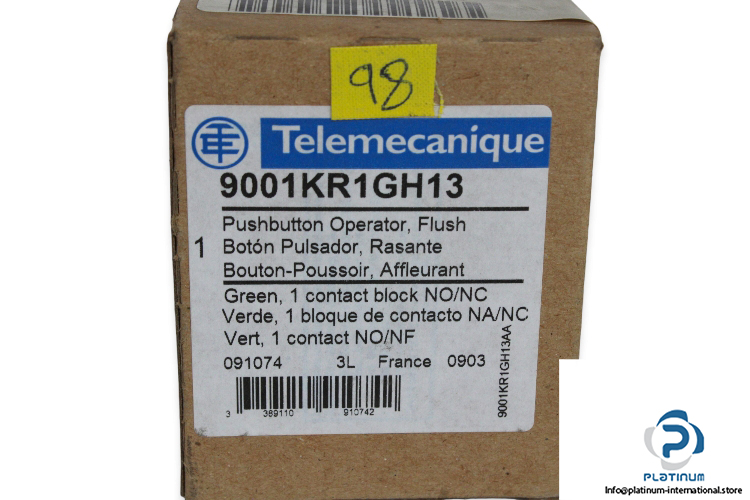

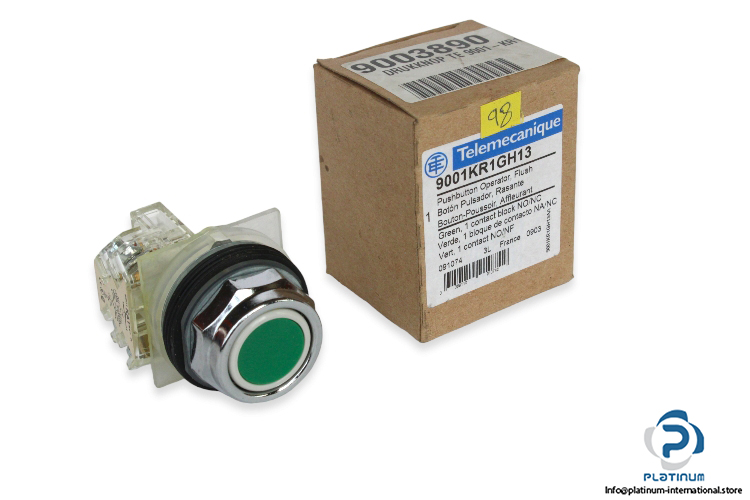

Telemecanique 9001KR1GH13 Push-Button

Manufacturer: TELEMECANIQUE

Type: Push-button

Model: 9001KR1GH13

Part no.: 091074



Type of operator: Spring return

Operator profile: Green flush, unmarked

Operator additional information: Metal guard

Bezel material: Metal

Mounting diameter: 30 mm

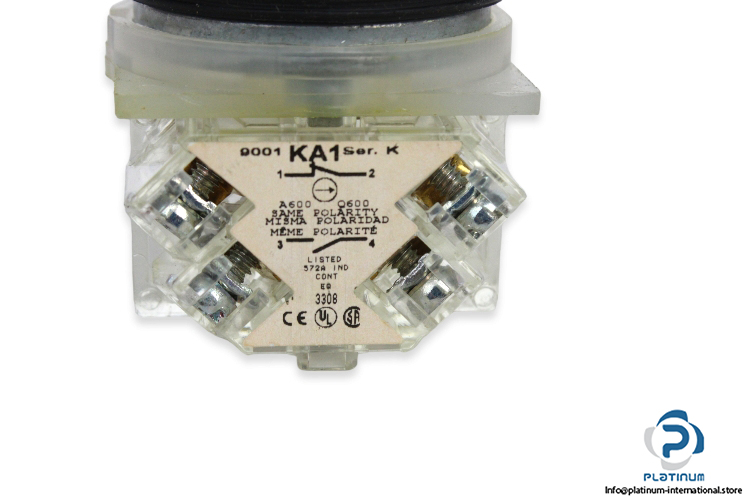

Contacts type and composition: 1 C/O

Connections – terminals: Screw clamp terminals 1 x 0.22…2 x 1.5 mm² conforming to IEC 60947-1

Tightening torque: 0.8 N.m

[Ie] rated operational current: 3 A

[Ui] rated insulation voltage: 250 V

Ambient Temperature: -25 … 70 °C
