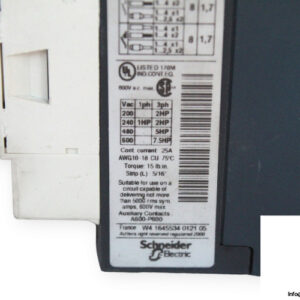

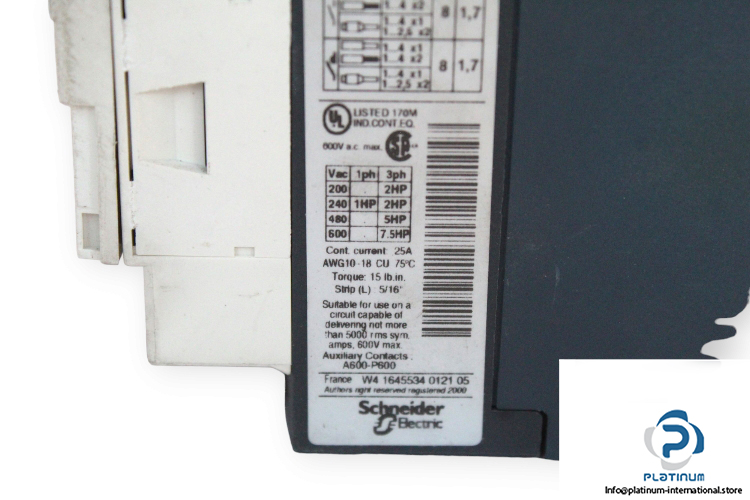

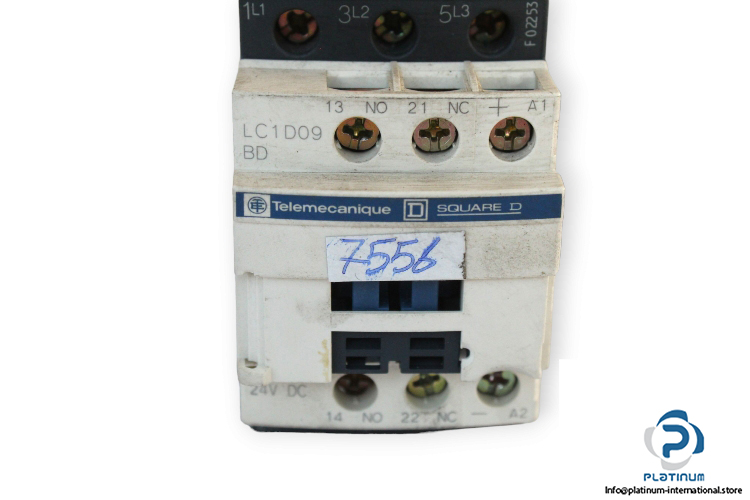

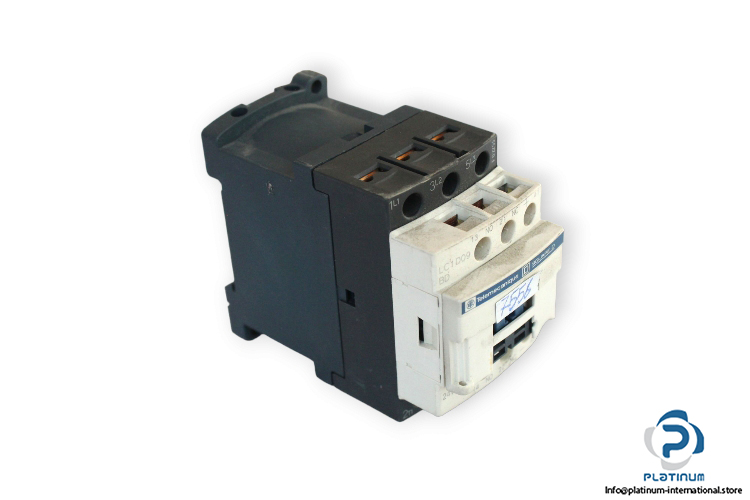

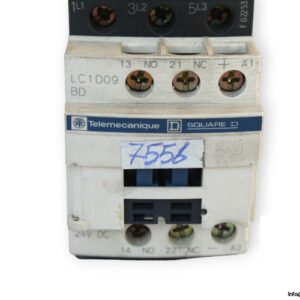

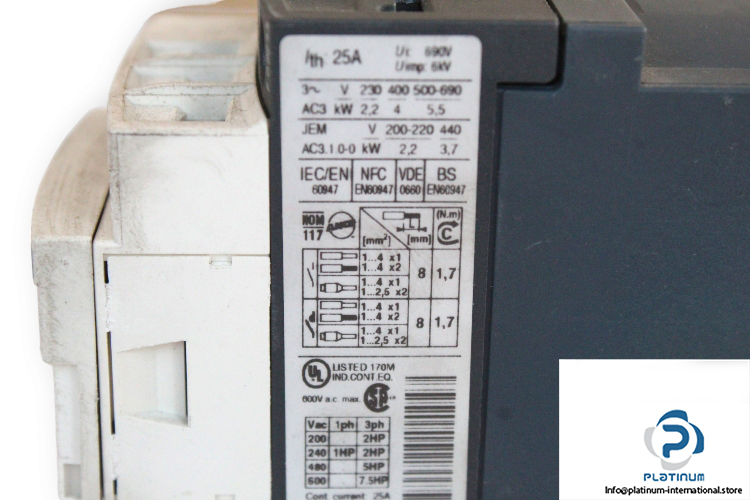

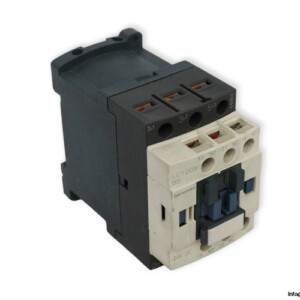

Telemecanique LC1D09BD Contactor

Manufacture: Telemecanique
Type: Contactor
Model: LC1D09BD

Application: Motor control, Resistive load
Control circuit voltage Uc: 24 V DC
Thermal current Ith: 25 A
Rated impulse withstand voltage Uimp: 6 kV
Rated operational current Ie: 25 A at <= 440 V AC, 9 A at <= 440 V AC
Auxiliary contact composition: 1 NO + 1 NC
Motor power: 2.2 kW at 230 V AC/3-phase
4 kW at 400 V AC/3-phase
5.5 kW at 500 … 690 V AC/3-phase
Degree of protection: IP20
No. of Poles: 3P
pollution degree: 3
Ambient air temperature for operation: -5 … 60 °C
Dimensions: 77 x 45 x 95 mm
