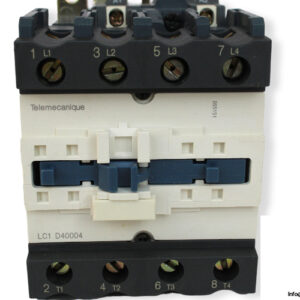

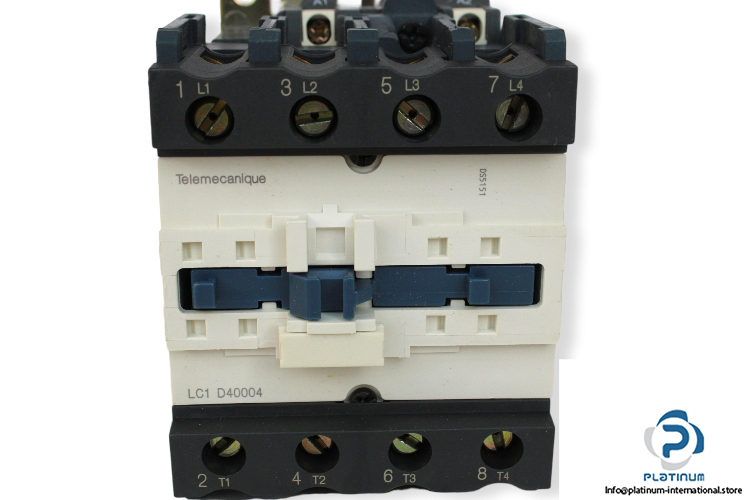

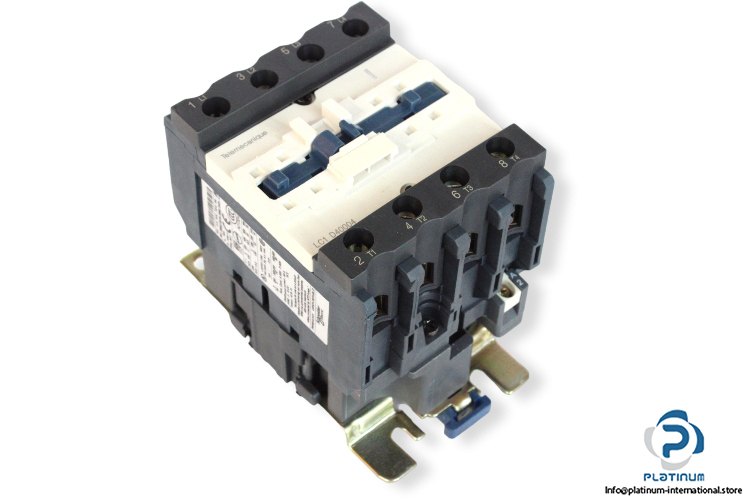

Telemecanique LC1D40004P7 Contactor

Manufacturer: Telemecanique

Type: Contactor

Model: LC1D40004P7

Part No.: 006963

Control circuit voltage (Uc): 230 V AC, 50/60 Hz

Rated operational voltage (Ue): 690 V AC

Rated operational current (Ie): 60 A

Rated insulation voltage (Ui): 1000 V

Conventional free air thermal current (Ith): 60 A

Rated impulse withstand voltage (Uimp): 8 KV

Connections – terminals: screw clamp terminal

Poles description: 4 poles

Motor power KW: 18.5 KW @ 400 V

Motor power hp: 30 hp @ 460 V

Pole contact composition: 4 Normally open

Operating Temperature: -5 … +60 °C

Degree of Protection: IP2X

Dimensions: 127 x 85 x 125 mm
