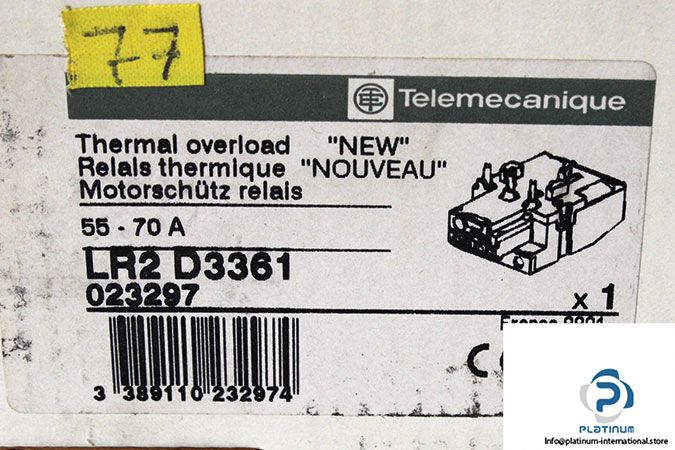

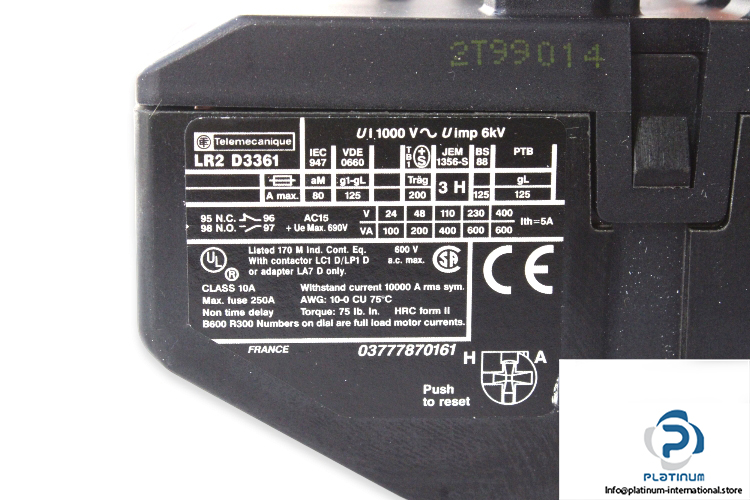

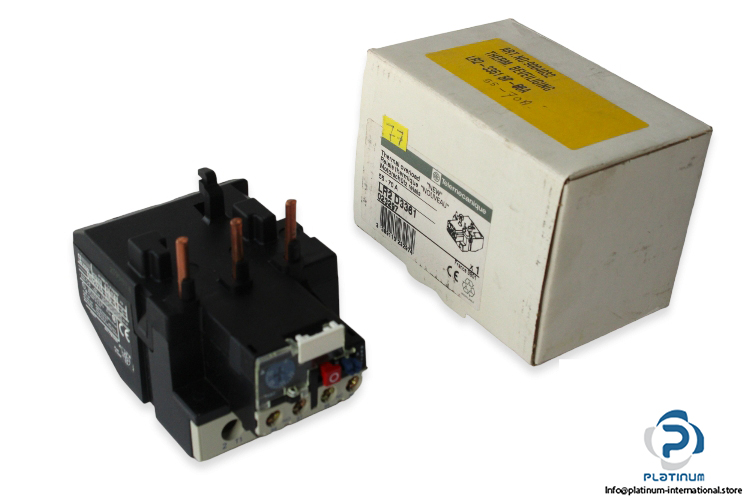

Telemecanique LR2 D3361 Thermal Overload Relay

Manufacturer: Telemecanique

Type: Thermal overload relay

Model: LR2 D3361

Part No.: 023297

Rated operational voltage: 690 V AC 50/60 Hz

Thermal protection adjustment range: 55 … 70 A

Tightening torque: Control circuit: 1.7 N.m on screw clamp terminals

Surge withstand: 6 kV

Relay application: Motor protection

Connections – terminals: Screw clamp terminals

Operating Temperature: -20 … 60 °C

Degree of Protection: IP2x conforming to VDE 0106

Dimensions: 121 x 75 x 100 mm
