Telemecanique XB2 MV743 Pilot Light

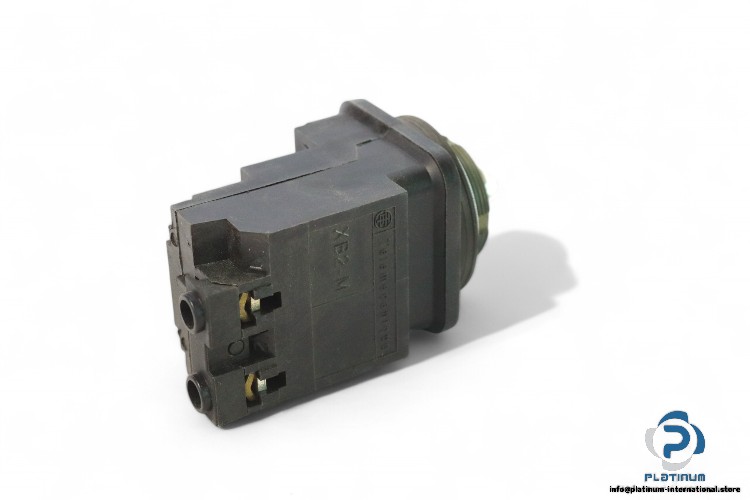

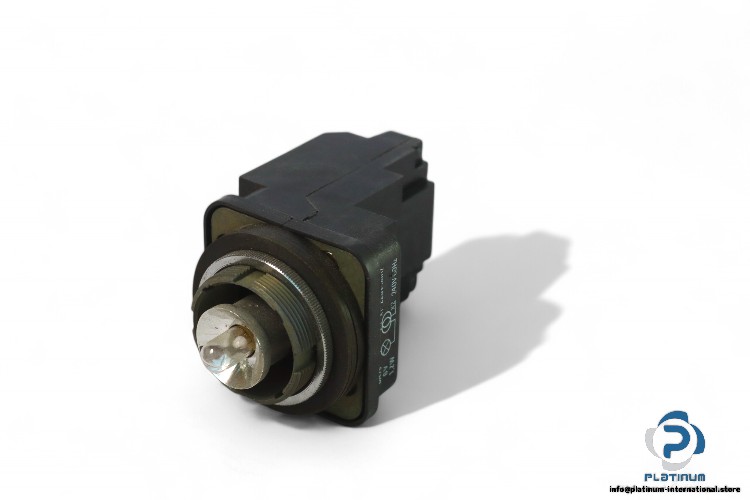

TELEMECANIQUE XB2 MV743 Pilot Light

The TELEMECANIQUE XB2 MV743 Pilot Light is a durable and efficient indicator light designed for industrial applications. With its robust construction and long life, it provides reliable operation while reducing maintenance costs. This model is highly resistant to shocks, vibrations, and over-voltage, making it perfect for demanding environments.

• Category: Industrial Electrical Switch
• Manufacturer: TELEMECANIQUE
• Type: Pilot Light
• Model: XB2 MV743
• Features:
  • Very long life and low maintenance costs (bulb test no longer required)
  • Highly resistant to shocks, vibrations, and over-voltage
  • Low power consumption and very high reliability
  • Strength, water/dust tightness, and large luminous area
• Conforming to Standards: IEC 337-2, NF C 63-140, VDE 0660-200
• Protective Treatment: “TC” treatment (Standard version)
• Rating Voltage Contact: 380V, 50 Hz
• Load: 6V, 12W
• Cabling: Screw and captive cable clamp terminals. Clamping capacity: min. 1×0.5 mm², max. 2 x 1.5 mm² or 1 x 2.5 mm² with or without cable end
• Color: Green
• Mounting Diameter: 30 mm
• Electric Shock Protection: Class I
• Degree of Protection: IP 65
• Operating Temperature: -25°C to +70°C

With a 30 mm mounting diameter and high-performance features, the TELEMECANIQUE XB2 MV743 is ideal for use in harsh environments where reliability and durability are paramount.
