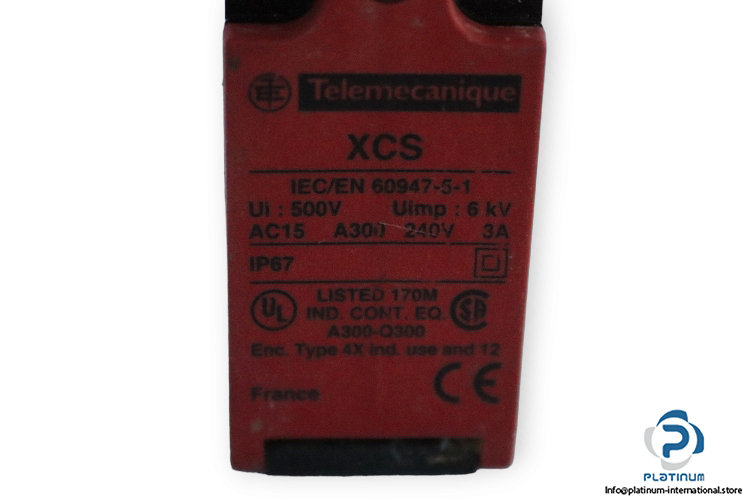

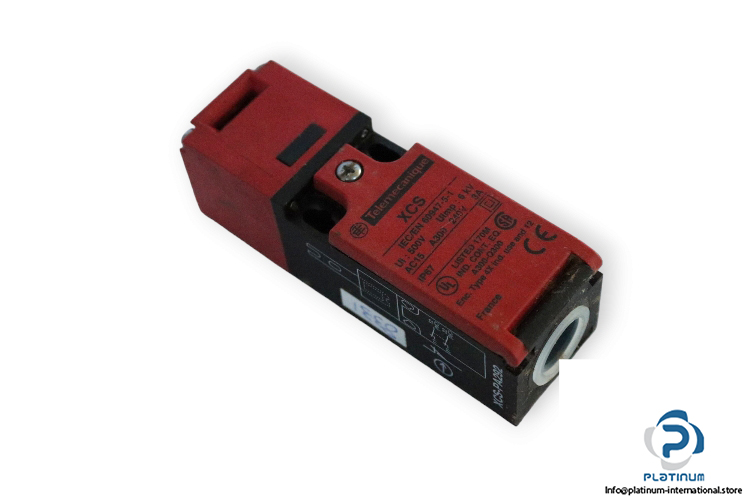

Telemecanique XCS-PA292 Safety Switch

Manufacture: Telemecanique
Type: Safety switch
Model: XCSPA292
Component name: XCSPA

Design: Compact
Insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 6 Kv
Thermal current Ith: 10 A
Rated operational current Ie: 3 A@240 V, AC-15, A300
Material: Plastic
Head type: Key operated turret head

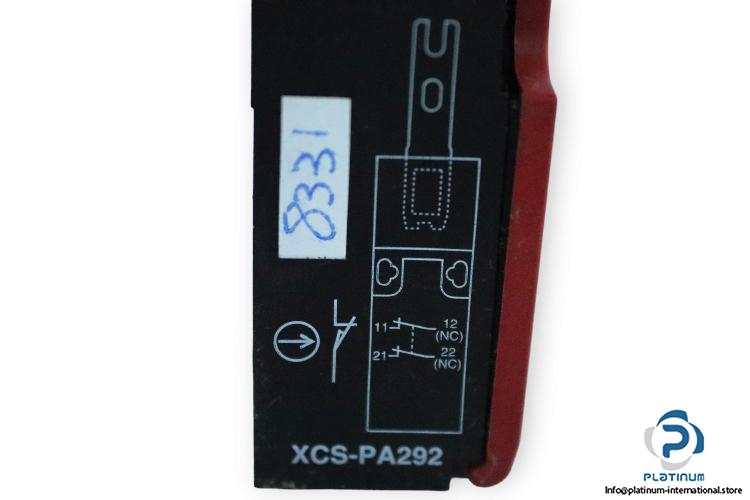

Contacts type and composition: 2 NC
Contact operation: Snap action
Cable entry: 1 entry tapped for M16 x 1.5
Cable outer diameter: 7 … 10 mm
Electrical connection: Terminal, clamping capacity: 1 x 0.34…2 x 1.5 mm²
Number of poles: 2
Protection degree: IP67
Standard: IEC 947-5-1,EN 60947-5-1
Ambient air temperature for operation: -25 … 70 °C
Dimensions: 30 x 94 x 30 mm
