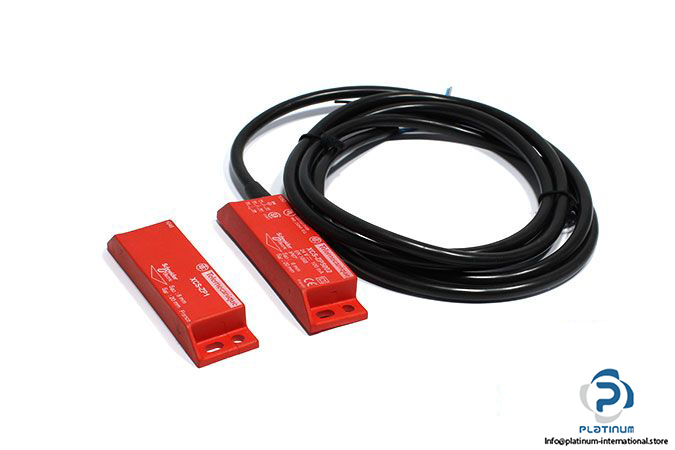

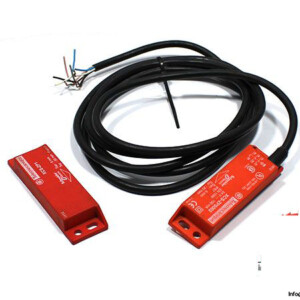

Telemecanique XCSDMP5002 Safety Switch

Manufacturer: Telemecanique Schneider

Type: Safety Switch

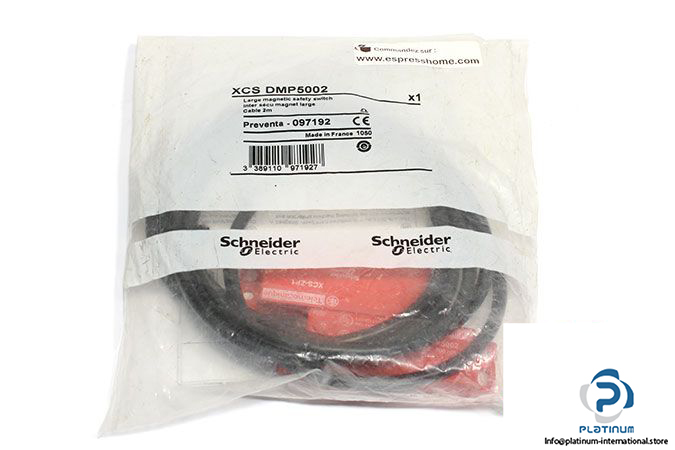

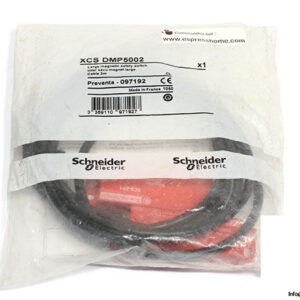

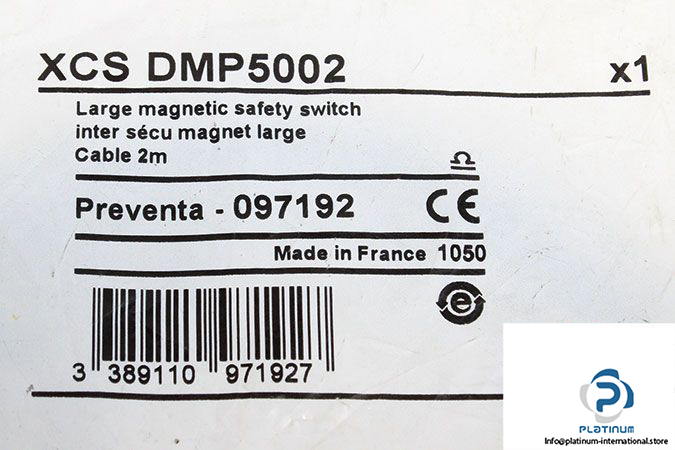

Model: XCS DMP5002

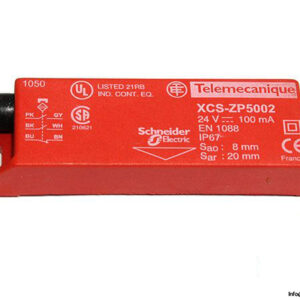

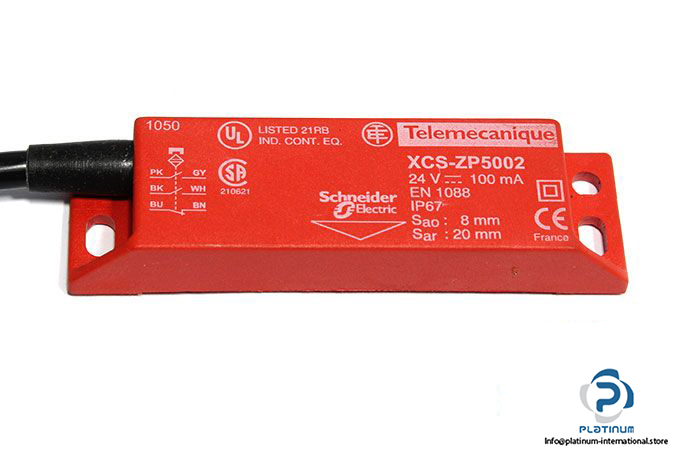

Coded Magnetic Switch: XCS-ZP5002

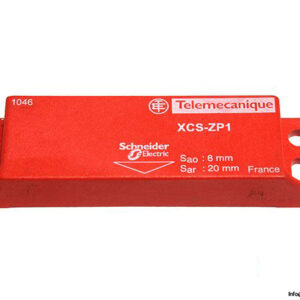

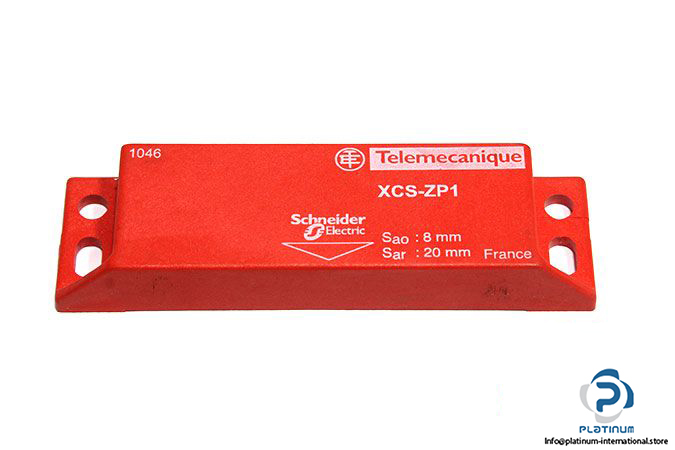

Additional Coded Magnet: XCS-Z

Assured Operating Distance: 8 mm

Operating Voltage: 24 V DC

Operating Current: 100 mA

Switching Frequency: 150 Hz

Contacts Type and Composition: 2 Normally Open and 1 Normally Closed

Contact Operation:  1 NO staggered

Electrical Connection: Pre-Cabled 2m, 6-Wire

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 85 °C

Dimensions: 88 x 25 x 13 mm

Housing Material: Plastic

Weight: 0.2 kg
