Telemecanique XCSDMP7002 Coded Magnetic Switch
Neu
Auf Lager51 EinheitenVersandbereit
Codierter Magnetschalter TELEMECANIQUE SCHNEIDER codierter magnetischer Sicherheitsschalter, 24 V DC, Schutzart IP66/67, Betriebstoleranz 8 mm, mit M12-Stecker für XCSRC Daisy-Chain-Sicherheitsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

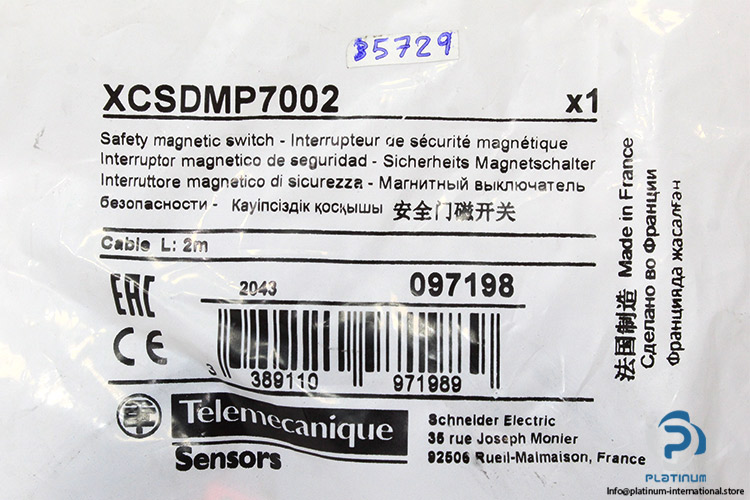

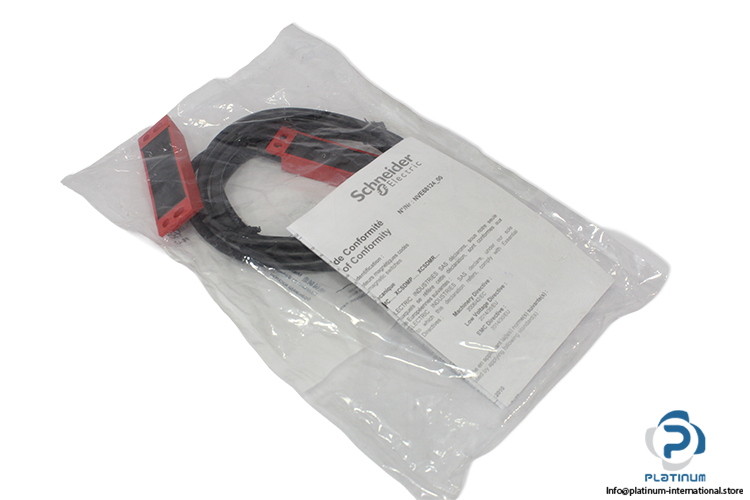

TELEMECANIQUE SCHNEIDER XCSDMP7002 Coded Magnetic Switch
The TELEMECANIQUE SCHNEIDER XCSDMP7002 coded magnetic switch is designed for industrial safety applications requiring secure position monitoring and reliable signal transmission. As part of the Telemecanique Safety Switches XCS range, it provides dependable performance in automation and machine safety systems.
Manufacturer: TELEMECANIQUE SCHNEIDER
Type: Coded Magnetic Switch
Model: XCSDMP7002
Part No.: 097198
| Range | Telemecanique Safety Switches XCS |
| Function | M12 Plug For XCSRC Daisy-Chain Models |
| Compatibility | XCSRC.2M12 |
| Operating Distance | 8 mm |
| Rated Supply Voltage (Us) | 24 V DC |
| Rated Operational Current Max. | 100 mA |
| Rated Impulse Voltage (Uimp) | 2.5 kV |
| Contacts Type And Composition | 1 Normally Open (NO) + 2 Normally Closed (NC) |
| Contact Operation | 1 Normally Closed (NC) Staggered |
| Output Current | 250 mA |
| Electrical Connection | PVC Cable, 3-Wires, 2 m |
| Housing Material | Plastic |
| Protection Class | IP66/67 |
| Ambient Temperature | -25 / 85 °C |
| Dimensions | 88 x 25 x 13 mm |
