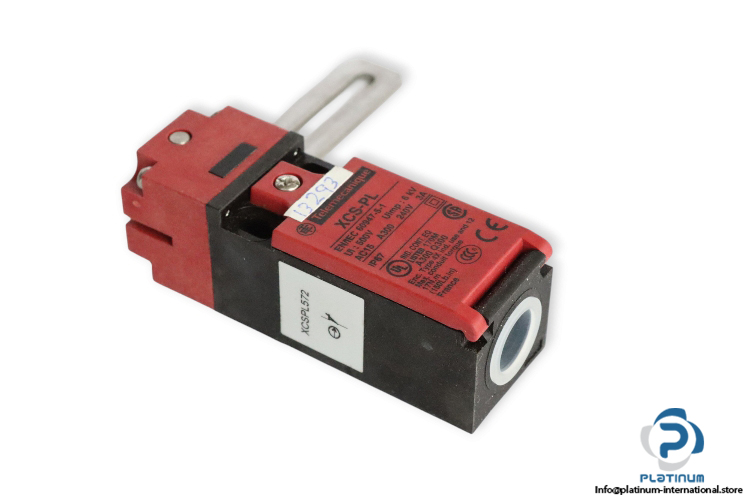

Telemecanique XCSPL572 Safety Switch

Manufacture: Telemecanique
Type: Safety switch
Model: XCSPL572

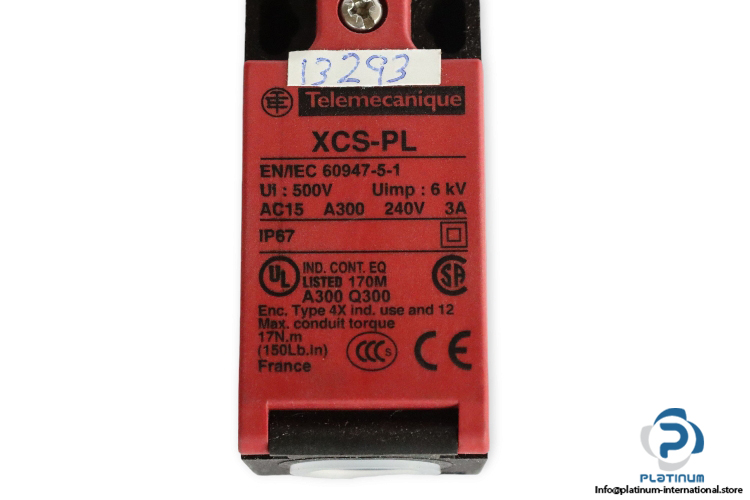

MNR: XCS-PL

Range of product: Telemecanique Safety switches XCS
Product or component type: Guard switch
Component name: XCSPL
Conventional enclosed thermal current Ith: 10 A
Rated insulation voltage Ui: 500 V
Rated operational current Ie: 3 A@240 V (AC-15, A300)
Rated impulse withstand voltage Uimp: 6 Kv
Head type: Turret head rotary lever
Insulation: Double insulated
Type of operator: Elbowed flush lever
Operator direction information: To right
Electrical connection: Terminal
Contacts type and composition: 1 NC + 1 NO
Contact operation: Slow-break, break before make
Clamping connection capacity: 1 x 0.5…2 x 1.5 mm² with or without cable end
Material: Plastic
Degree of protection: IP67
Cable entry: 1 entry tapped for M16 x 1.5
Number of poles: 2
Torque: 17 Nm
Cable outer diameter: 7 … 10 mm
Ambient air temperature for operation: -25 … 70 °C
Dimensions: 103 X 88 X 30 mm
