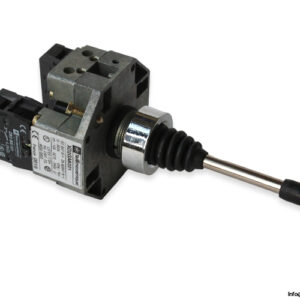

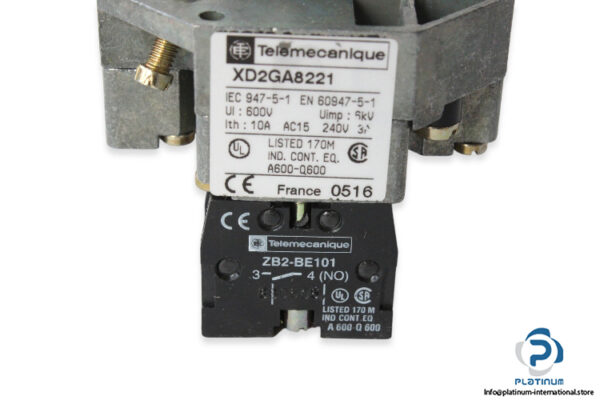

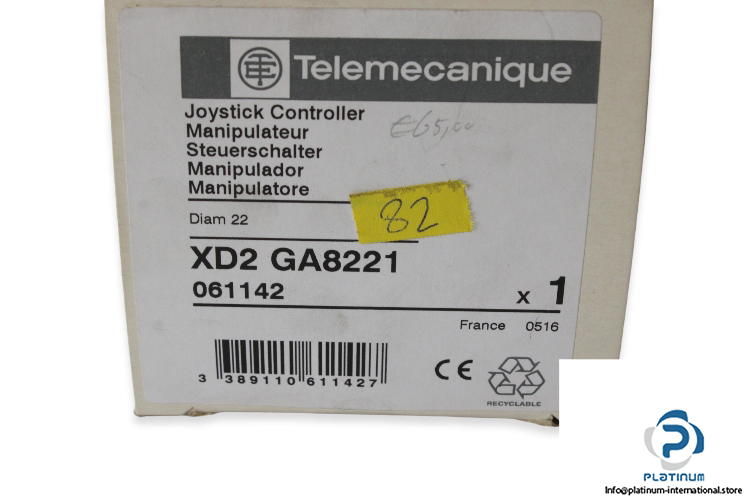

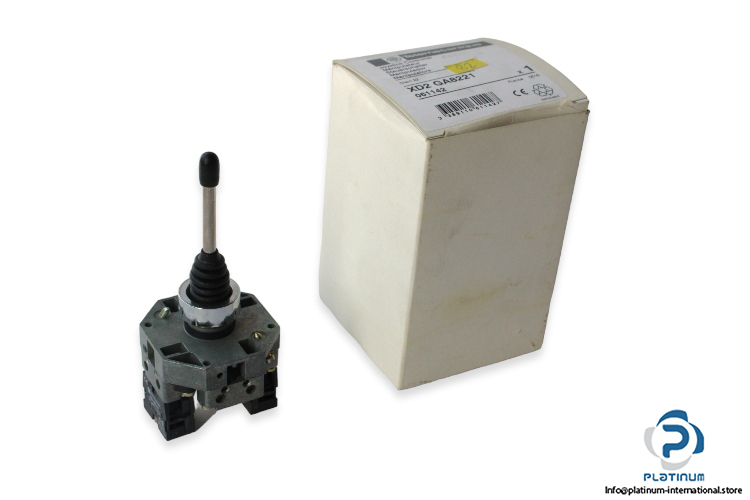

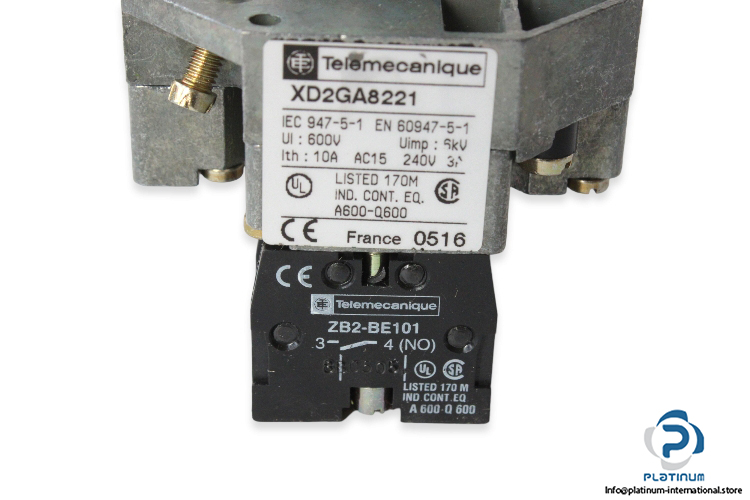

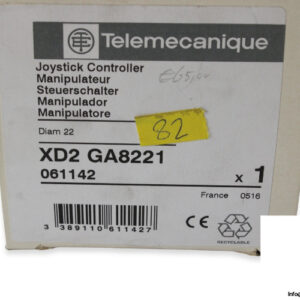

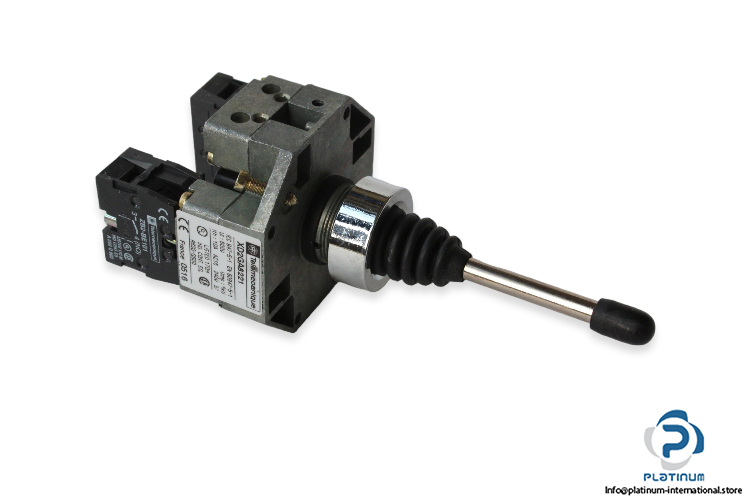

Telemecanique XD2GA8221 Complete Joystick Controller

Manufacturer: Telemecanique
Type: Complete joystick controller
Model: XD2 GA8221
Order No.: 061142
Device short name: XD2

Mounting diameter: 22 mm
Rated insulation voltage Ui: 600 V
Rated impulse withstand voltage Uimp: 6 kV
Thermal current Ith: 10 A
Rated operational current: DC-13 0.27 A @ 250 V, AC-15 3 A @ 240 V
Contacts type and composition: 1 NO for slow-break
Operator position information: All positions
Notch per direction: 1
Operator direction information: 2 directions
Return: To 0 position
Bezel material: Chromium plated metal
Fixing center: 90 x 90 mm
Standard: IEC 947-5-1, EN 60947-5-1
Height: 145 mm
Depth: 60 mm
Ambient air temperature for operation: -25 … 70 °C
Attachment:
TELEMECANIQUE ZB2-BE101 CONTACT BLOCK
Manufacturer: Telemecanique
Type: Contact Block
Model: ZB2BE101
