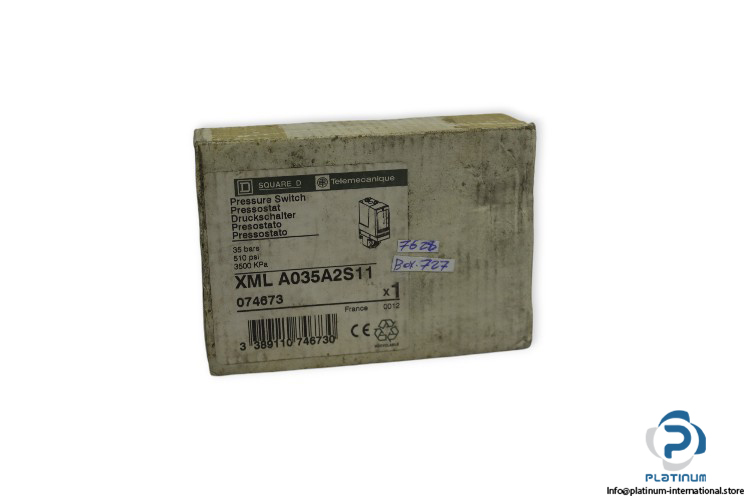

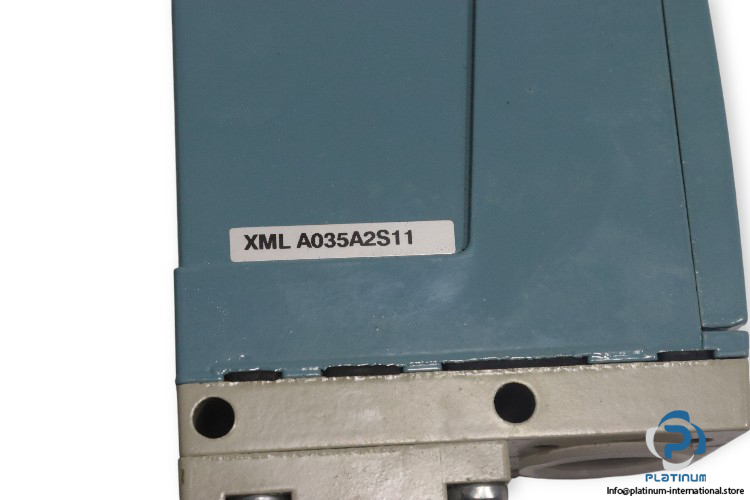

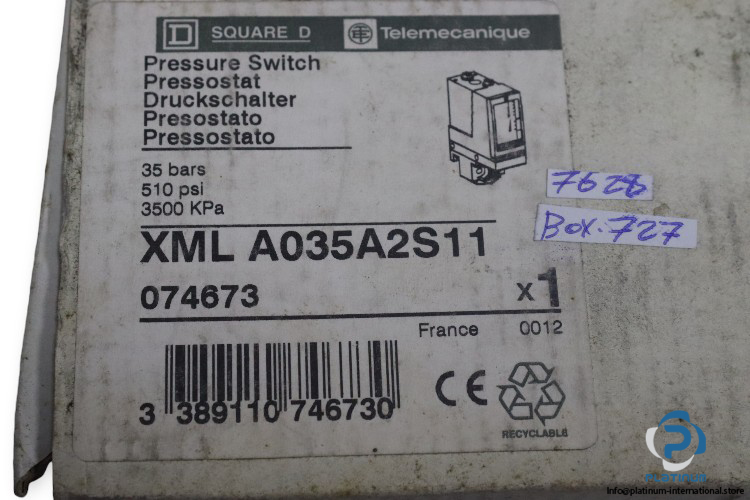

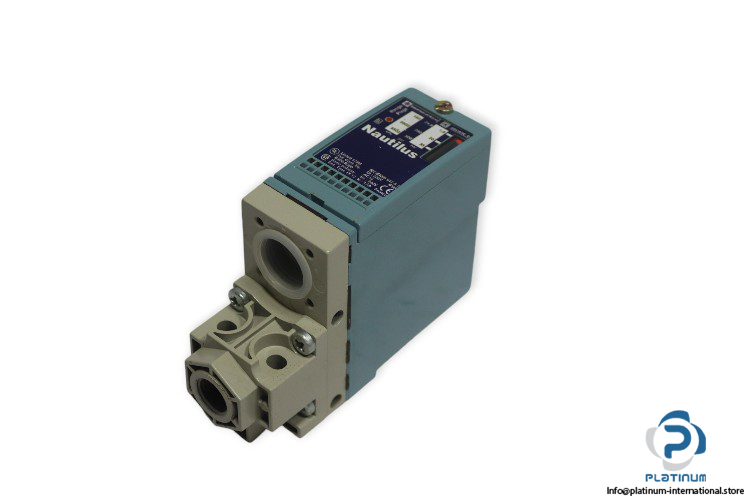

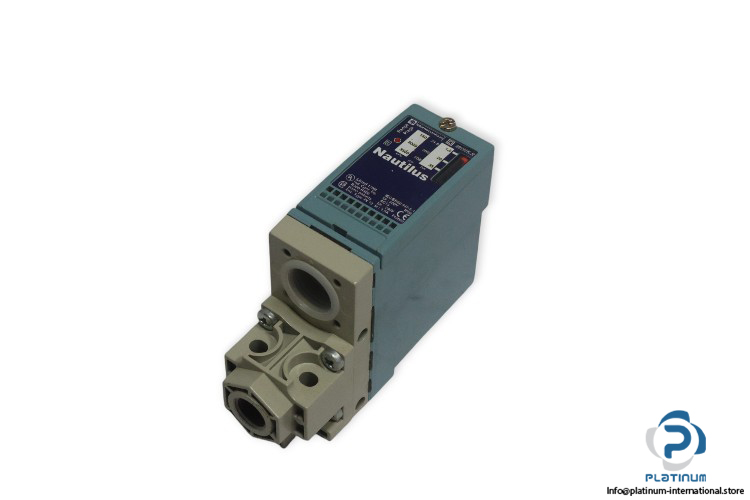

Telemecanique XML A035A2S11 Pressure Switch
Auf Lager2 EinheitenVersandbereit
Telemecanique XML A035A2S11 Pressure Switch
Druckschalter TELEMECANIQUE XML A035A2S11 Druckschalter mit 35 bar Nennwert, Membranaktuator und IP66 Schutz, ideal für industrielle Drucküberwachungsanwendungen.
3570°CA035A2S11AirbarDiaphragmHydraulicIndustrialIP66PressureRangeSensorSwiSwitchTelemecaniqueWaterXMXMLXmla
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Range | XMLA |
| Range of product | Telemecanique Pressure sensors XM |
| Part No. | 074673 |
| Pressure rating | 35 bar |
| Contacts type and composition | 1 C/O |
| Auxiliary contacts operation | Snap action |
| Controlled fluid | Air (0…70 °C), Fresh water (0…70 °C), Hydraulic oil (0…70 °C) |
| Adjustable range of switching point on rising pressure | 1.5…35 bar |
| Adjustable range of switching point on falling pressure | 0.25…33.75 bar |
| Maximum permissible accidental pressure | 80 bar |
| Destruction pressure | 160 bar |
| [In] rated current | 3 A |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm² |
| Dimensions | 113 x 75 x 35 mm |
| Ambient air temperature for operation | -25…70 °C |
| Enc. Type | 4X 12 |
| Condition | New |
| SKU | 1040759 |
| Weight | 0,72 |
| Spezifikation | Wert |
|---|---|
| Weight | 0,72 kg |
| Condition | New |
| Manufacturer | TELEMECANIQUE |
| Type of Product | Pressure Switch |
| Shelf No. | 240903 |
| Model | XML A035A2S11 |
