Telemecanique XML B001R2S12EX Pressure Sensor
Drucksensor Telemecanique XMLB001R2S12EX explosionsgeschützter Drucksensor mit Schnappkontakt, IP66-Schutz und kompatibel mit Luft und Hydrauliköl.

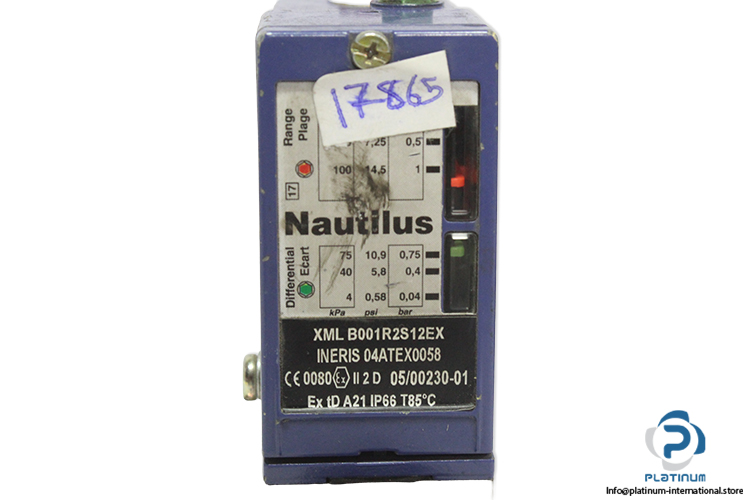

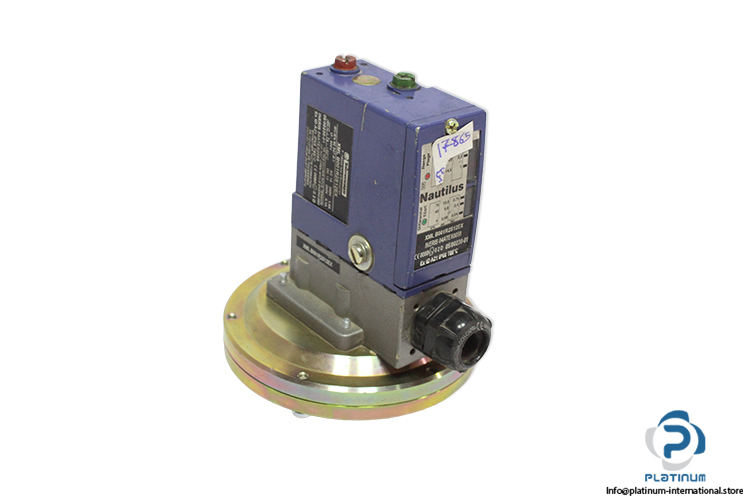

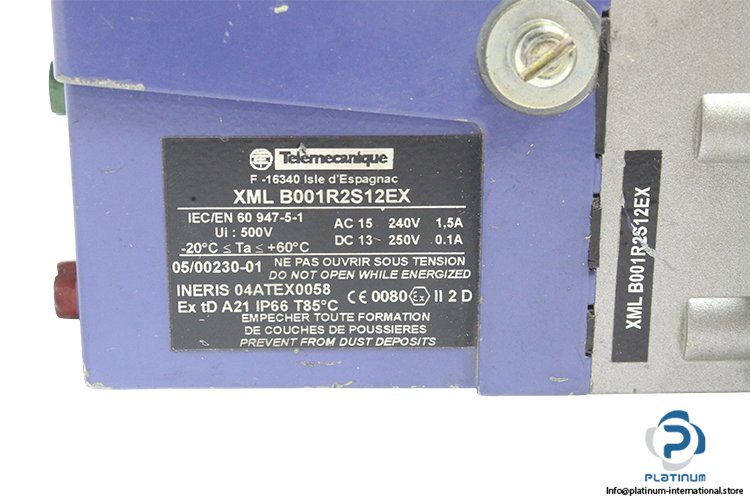

Telemecanique XMLB001R2S12EX Pressure Sensor
The Telemecanique XMLB001R2S12EX is a robust pressure sensor from the XML-B series, designed for reliable pressure monitoring in industrial environments. It features snap-action contacts, durable construction, and explosion-proof protection, making it suitable for demanding applications involving air and hydraulic oil.
Manufacturer: Telemecanique (Schneider Electric)
Type: Pressure Sensor
Model: XMLB001R2S12EX
Series: XML-B
Code: 05/00230-01
Electrical Ratings:
| Controlled Fluid | Air (0“70 °C), Hydraulic Oil (0“70 °C) |
| Fluid | Air, Hydraulic Oil |
| Operating Pressure | 0.04 / 0.75 |
| Contact | 1 C/O |
| Auxiliary Contacts Operation | Snap Action |
| Contacts Material | Silver Contacts |
| Fluid Connection | G 1/4, Threaded |
| Materials in Contact with Fluid | FPM, FKM, Stainless Steel, Steel |
| Enclosure Material | Zinc Alloy |
| Electrical Connection | Cable Gland 9 / 13 mm |
| AC-15 | 240 V, 1.5 A |
| DC-13 | 250 V, 0.1 A |
| Ui (Rated Insulation Voltage) | 500 V |
| Ambient Temperature Range | -20 / 60 °C |
| Standard | IEC / EN 60947-5-1 |
| Protection Class | IP66 |
| Explosion Proof | Yes |
