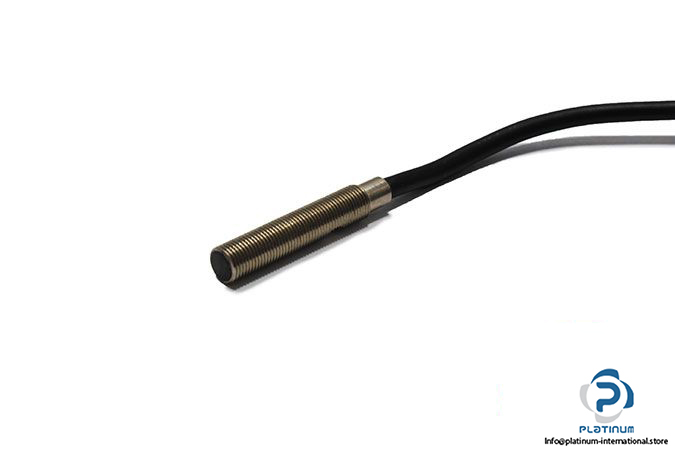

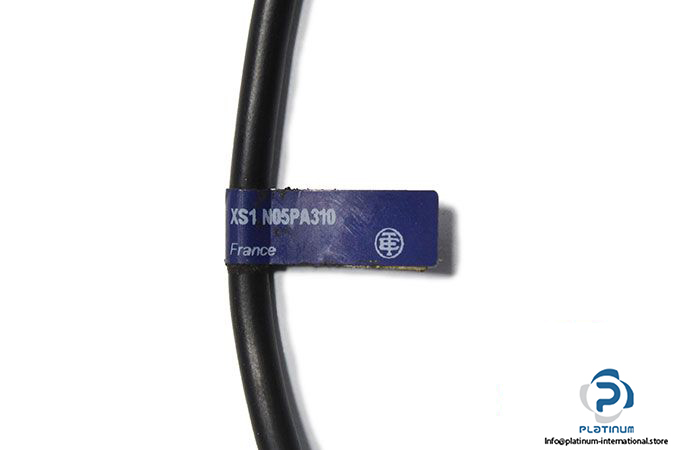

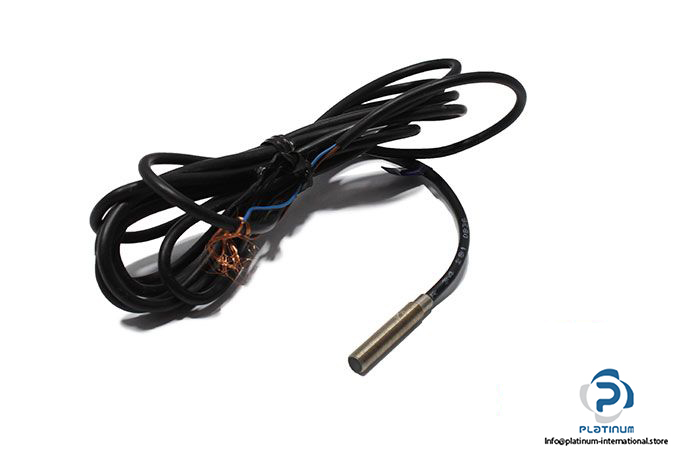

Telemecanique XS1N05PA310 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS1N05PA310

Sensor Design: Cylindrical M5

Detector Flush Mounting Acceptance: Flush mountable

Material: Metal

Wiring Technique: 3-wire

Nominal Sensing Distance: 1 mm

Discrete Output Function: 1 NO

Discrete Output Type: PNP

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage: 5 … 24 VDC

Switching Capacity: <= 100 mA
Degree of Protection: IP67

Thread Type: M5 x 0.5

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 5 mm, 28 mm

Weight: 0.03 Kg
