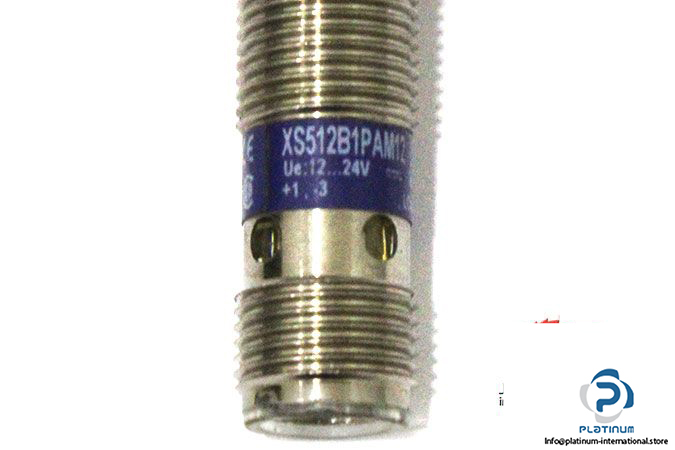

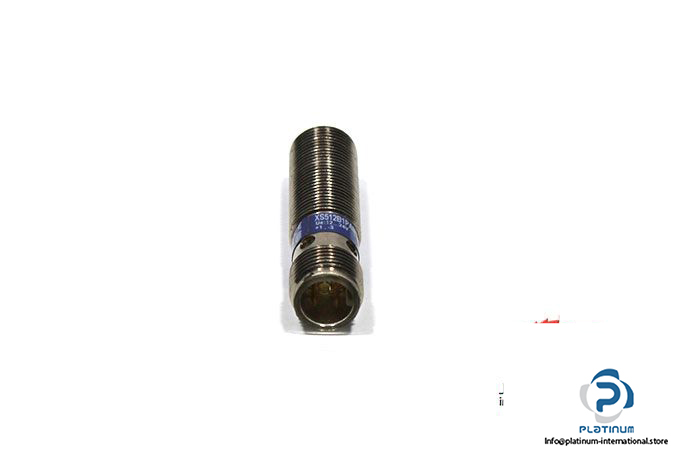

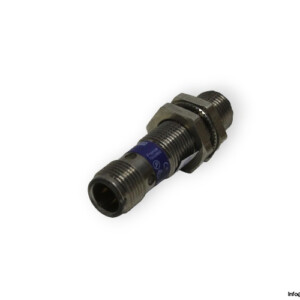

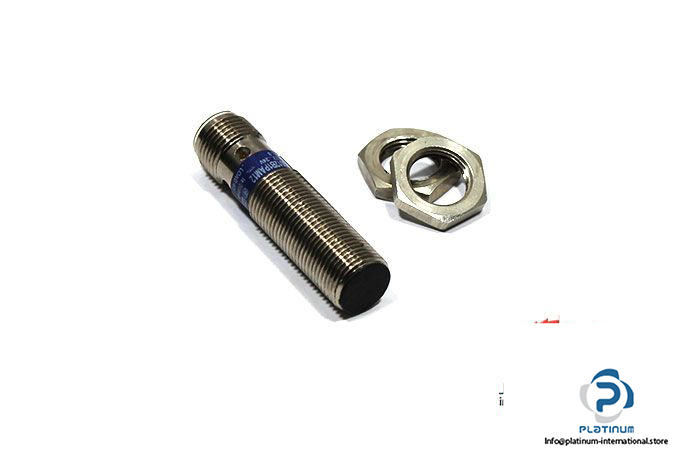

Telemecanique XS512B1PAM12 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS512B1PAM12

Sensing Range: 2 mm

Operating Voltage: 12 … 24 V DC

Switching Capacity: <= 200 mA
No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: <= 2 V
Switching Frequency: <= 5000 Hz
Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M12

Electrical Connection: Male Connector M12, 4-Pin

Diameter, Length: 12, 50 mm

Degree of Protection: IP67

Ambient Operating Temperature: -25 … 70 °C

Body Type: Fixed

Housing Material: Metal

Enclosure Material: Nickel Plated Brass

Mounting: Flush-Mountable

Weight: 0.02 kg
